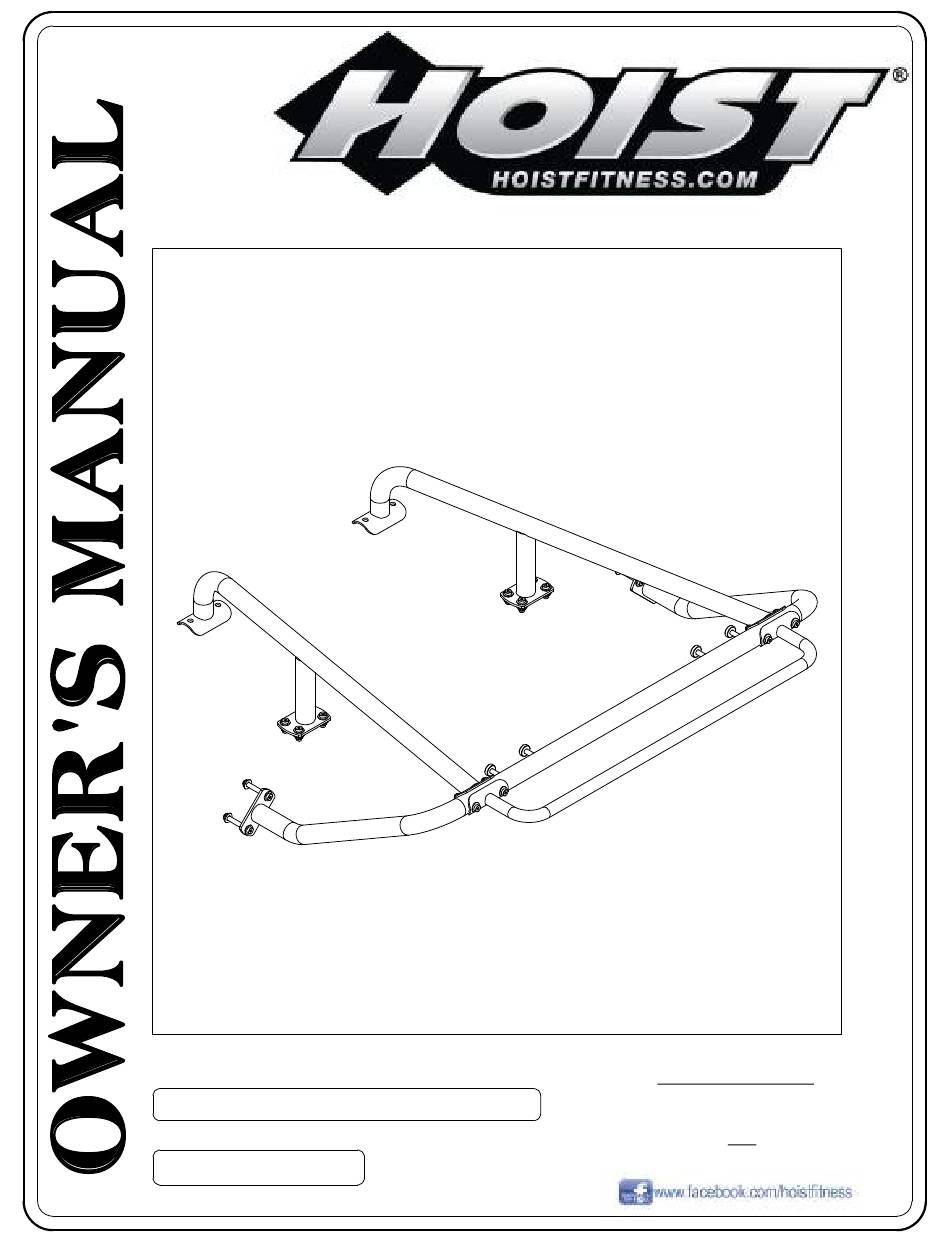

- Page 1 MC-7016 UPPER CAGE WITH CHIN UP BAR Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676 MACHINE CODE (858) 578-9558...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............LIMITED WARRANTY............PAGE 01 MC-7016 ASSEMBLY... -
Page 3: Instructions
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level Hex Key Wrench Set Two People Drift Pin MC-7016 ASSEMBLY PAGE 02... - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 MC-7016 ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY MC-7016 ASSEMBLY PAGE 04... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY NOTE: INSTALLED VIEW - HAND TIGHTEN HARDWARE. - YOUR MOTION CAGE CONFIGURATON MAY DIFFER FROM THE ONE SHOWN. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. MC-7015 PAGE 05 MC-7016 ASSEMBLY...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. MC-7016 ASSEMBLY PAGE 06...
- Page 8 REMOVED FOR CLARITY. MC-7011 *IMPORTANT* NOW THAT THE MC-7016 IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF THE UNIT IS NOT SQUARE, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
-
Page 9: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. MC-7016 ASSEMBLY PAGE 08... -
Page 10: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-0003230 SERIAL # DECAL PAGE 09 MC-7016 ASSEMBLY... -
Page 11: Part List
1/2"-13UNC X 3.50" LOW HEAD SHCS (Ni) 011-0116115 1/2"-13UNC X 3.00" LOW HEAD SHCS (Ni) 012-0504002 1/2"-13 UNC THIN NYLOCK NUT (Ni) 021-0003230 DECAL HOIST 1.625" X 6.0613" SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" MC-7016 ASSEMBLY PAGE 10... -
Page 12: Abbreviations
HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw PAGE 11 MC-7016 ASSEMBLY... -
Page 13: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
