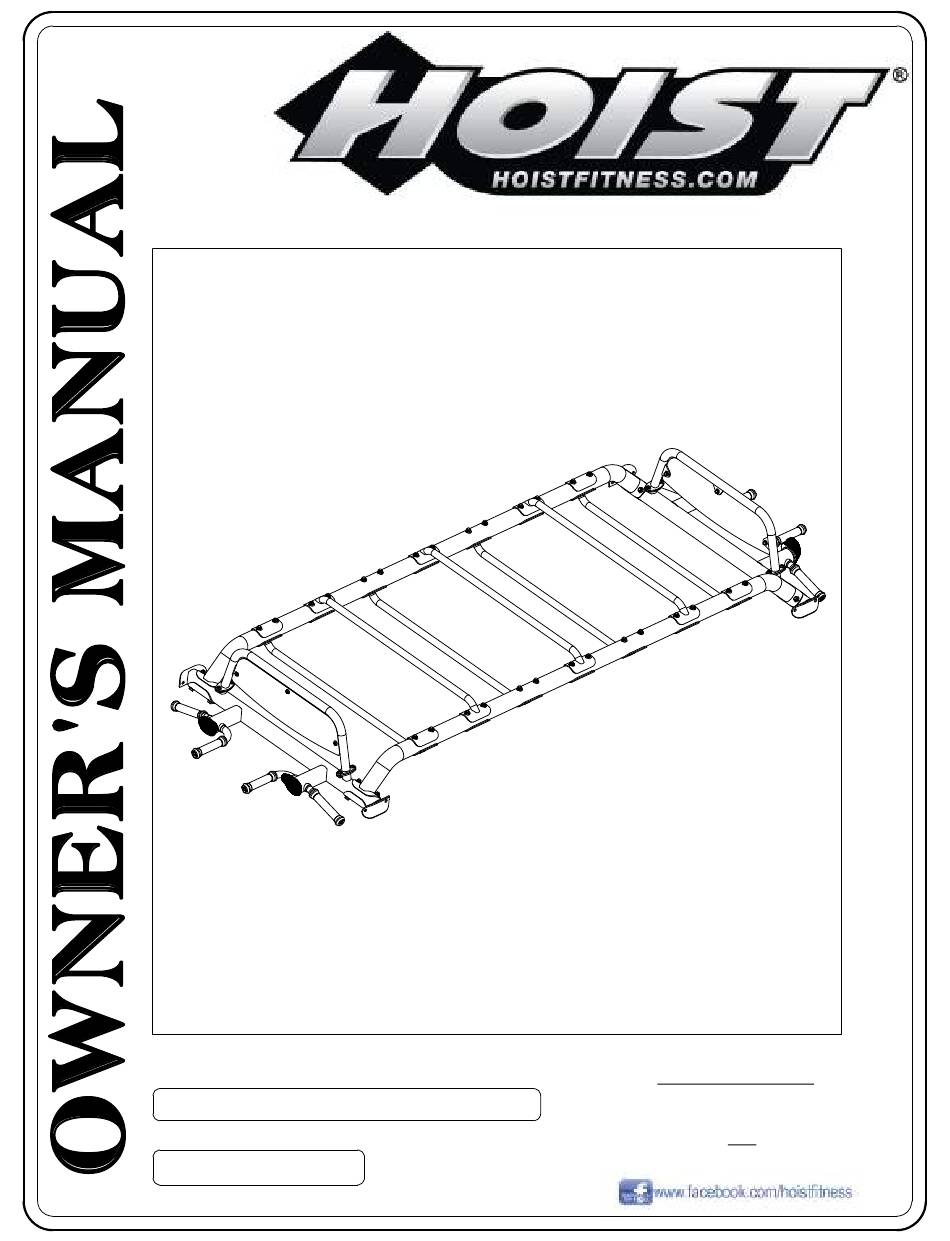

- Page 1 MC-7011 MONKEY BARS Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676 MACHINE CODE (858) 578-9558...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............LIMITED WARRANTY............PAGE 01 MC-7011 ASSEMBLY... -
Page 3: Instructions
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level Hex Key Wrench Set Three People Drift Pin MC-7011 ASSEMBLY PAGE 02... - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 MC-7011 ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY MC-7011 ASSEMBLY PAGE 04... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STEP 1: ASSEMBLE ALL THE UNITS THAT MAKE UP EACH OF THE MOTION CAGE'S CORNERS MC-7012 PAGE 05 MC-7011 ASSEMBLY...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY STEP 2: PLACE EACH ASSEMBLED CORNER IN DESIRED LOCATION. MOVE THE CORNERS TO THE MEASUREMENTS BELOW BEFORE CONTINUING. 51 5/16" 1304 89" 2260 69 15/16" 1777 MC-7011 ASSEMBLY PAGE 06...
- Page 8 FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - REPEAT ASSEMBLY FOR OPPOSITE SIDE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. * ITEMS INCLUDED WITH MC-7020 STEP 3: BEGIN ASSEMBLING THE MC-7011 - MONKEY BARS PAGE 07 MC-7011 ASSEMBLY...
- Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE:. - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. * ITEMS INCLUDED WITH MC-7020 MC-7013 MC-7015 MC-7011 ASSEMBLY PAGE 08...
- Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 09 MC-7011 ASSEMBLY...
- Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. * ITEMS INCLUDED WITH MC-7013 ** ITEMS INCLUDED WITH MC-7016 MC-7015 MC-7011 ASSEMBLY PAGE 10...
- Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. * ITEMS INCLUDED WITH MC-7016 PAGE 11 MC-7011 ASSEMBLY...
- Page 13 NOW THAT THE MOTION CAGE IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF THE UNIT IS NOT SQUARE, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS. MC-7011 ASSEMBLY PAGE 12...
-
Page 14: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. REPEAT FOR OPPOSITE SIDE PAGE 13 MC-7011 ASSEMBLY... -
Page 15: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. MC-7011 ASSEMBLY PAGE 14... -
Page 16: Decal Reference
OWNER'S MANUAL DECAL REFERENCE SERIAL # DECAL 021-0003927 021-0003627 PAGE 15 MC-7011 ASSEMBLY... - Page 17 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** MC-7011 ASSEMBLY PAGE 16...
-
Page 18: Part List
012-0504005 3/8"-16 UNC THIN NYLOCK NUT (Ni) 012-0504002 1/2"-13 UNC THIN NYLOCK NUT (Ni) 021-0003627 DECAL HOIST 2.07" X 7.75" 026-0003927 MOTION CAGE LOGO DEACL 28.8766" SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" PAGE 17 MC-7011 ASSEMBLY... -
Page 19: Abbreviations
HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw MC-7011 ASSEMBLY PAGE 18... -
Page 20: Bolt Sizing Chart
OWNER'S MANUAL BOLT SIZING CHART HEX HEAD BOLT 1/4" HHB RECOMMENDED TORQUE RANGE: 6-8 ft-lbs 5/16" HHB RECOMMENDED TORQUE RANGE: 14-17 ft-lbs 3/8" HHB RECOMMENDED TORQUE RANGE: 24-30 ft-lbs 1/2" HHB RECOMMENDED TORQUE RANGE: 60-75 ft-lbs PAGE 19 MC-7011 ASSEMBLY... - Page 21 OWNER'S MANUAL BOLT SIZING CHART FLAT HEAD CAP SCREW 1/4" FHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 3/8" FHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" FHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs MC-7011 ASSEMBLY PAGE 20...
- Page 22 OWNER'S MANUAL BOLT SIZING CHART BUTTON HEAD CAP SCREW 1/4" BHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 5/16" BHCS RECOMMENDED TORQUE RANGE: 11-15 ft-lbs 3/8" BHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" BHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs PAGE 21 MC-7011 ASSEMBLY...
- Page 23 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD CAP SCREW 1/4" SHCS RECOMMENDED TORQUE RANGE: 11-14 ft-lbs 5/16" SHCS RECOMMENDED TORQUE RANGE: 23-29 ft-lbs 3/8" SHCS RECOMMENDED TORQUE RANGE: 39-49 ft-lbs MC-7011 ASSEMBLY PAGE 22...
- Page 24 1/4" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 4-6 ft-lbs 5/16" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 9-12 ft-lbs 3/8" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 18-23 ft-lbs 1/2" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 40-50 ft-lbs PAGE 23 MC-7011 ASSEMBLY...
- Page 25 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD SHOULDER SCREW 1/4" SHSS RECOMMENDED TORQUE RANGE: 3-4 ft-lbs 5/16" SHSS RECOMMENDED TORQUE RANGE: 8-10 ft-lbs 3/8" SHSS RECOMMENDED TORQUE RANGE: 17-22 ft-lbs MC-7011 ASSEMBLY PAGE 24...
-
Page 26: Washer Sizing Chart
CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER PAGE 25 MC-7011 ASSEMBLY... - Page 27 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/4" LONG HEAVY 1 1/2" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER MC-7011 ASSEMBLY PAGE 26...
-
Page 28: Maintenance Schedule
Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Never use ammonia, acid-based, or petroleum-based solvents on any portion of the machine as it may damage the finish. PAGE 27 MC-7011 ASSEMBLY... -
Page 29: General Maintenance Information
OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. -
Page 30: Weight Training Tips
To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training. Now that you have your MC-7011 HOIST® Fitness System, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself. -
Page 31: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
