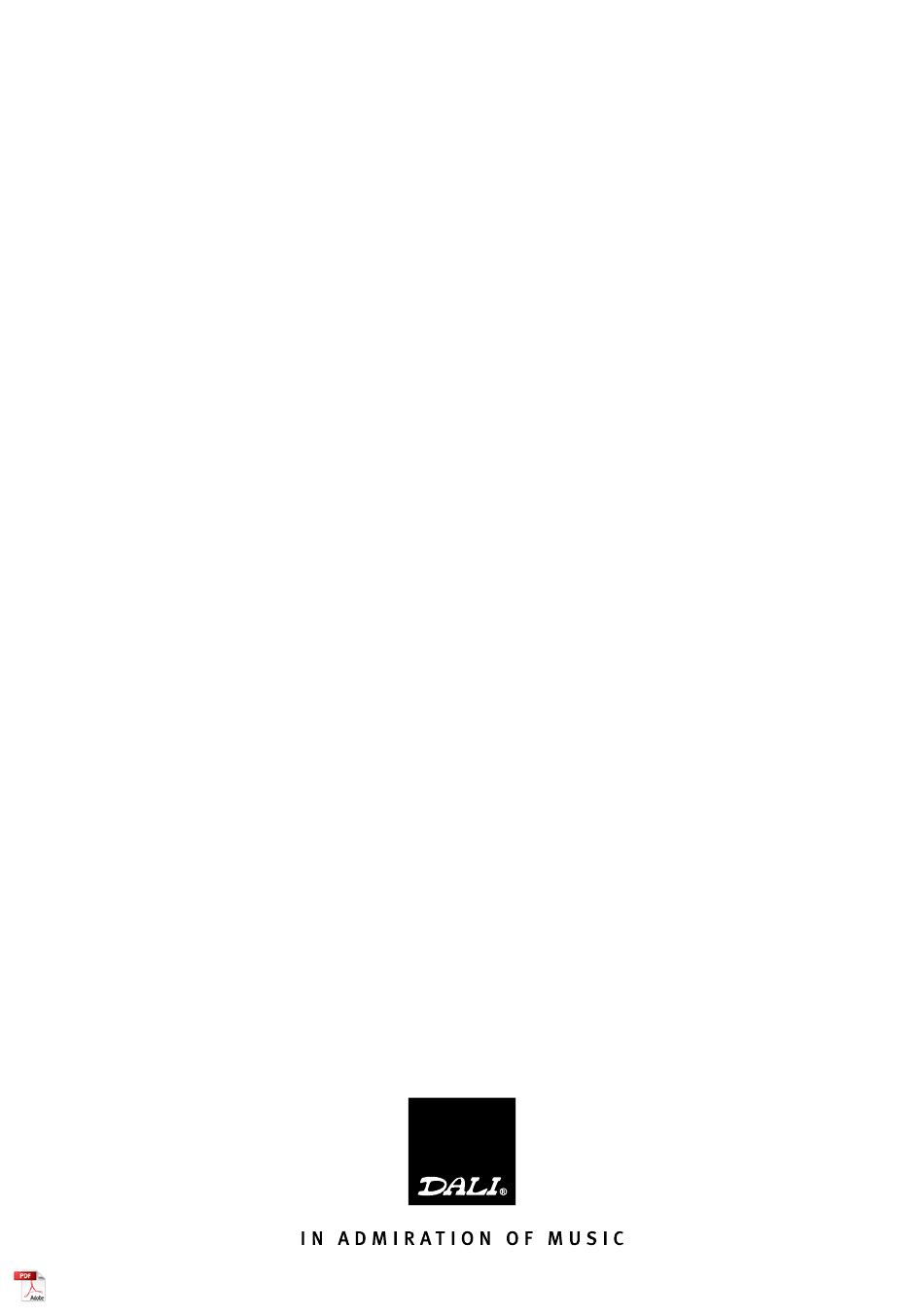

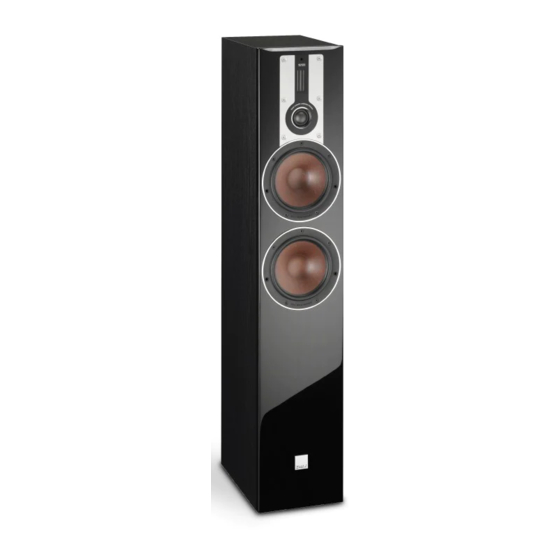

- Page 1 ENGLISH - DEutScH - DANSK - 中国 - 日本語 - frANçAIS D A L I O P T I C O N M A N U A L...
- Page 2 TABLE 1 FIGURE 1A FIGURE 1B FIGURE 1C...
- Page 3 FIGURE 2 FIGURE 3 FIGURE 4 FIGURE 5 FIGURE 6 FIGURE 7 4 x pads...
- Page 4 FIGURE 8 FIGURE 9 FIGURE 10 FIGURE 11A FIGURE 11B FIGURE 11C Right Left Right Left loudspeaker loudspeaker loudspeaker loudspeaker Amplifier Amplifier FIGURE 11D Right Left loudspeaker loudspeaker Amplifier Amplifier...
-
Page 5: Table Of Contents
CONTENTS 1.0 INTRODUCTION 2.0 UNPACKING 3.0 POSITIONING 4.0 CONNECTION 5.0 RUNNING-IN 6.0 CLEANING & MAINTENANCE 7.0 DISPOSAL 8.0 POWER AND ACOUSTIC PRESSURE 9.0 THE LISTENING ROOM 10.0 TECHNICAL SPECIFICATIONS... -
Page 6: Introduction
20 cm (8”) from the rear wall. DALI OPTICON 2 should likewise be positioned minimum 20 cm (8”) from the rear wall. DALI OPTICON LCR is optimized for wall- mounting, but will also work well on a shelf. If wall mounted there should be at least 10 cm (4”) to any surface underneath the speaker and if placed on a shelf there should be at least 10 cm (4”) distance to the wall. - Page 7 fine detail of the high frequencies. If used in the horizontal position, you can rotate the DALI logo on the front grille by lifting it up slightly and rotating it into the desired position (see Figure 8).
-
Page 8: Connection
All DALI OPTICON speakers can be connected by means of a single speaker cable (see Figure 11A + 11B). However, DALI OPTICON 5, 6 and 8 are fitted with two pairs of terminals, allowing you the option of running two sets of cables to each speaker. The top terminal pair is internally connected to the crossover network’s high frequency section. -
Page 9: Cleaning & Maintenance
Therefore DALI recommends that the tone controls generally be set to the neutral position, and you achieve your desired sound image through correct positioning of the speakers. Ensuring that you keep the volume low enough for the sound to remain clear and undistorted will minimize the strain on both speakers and amplifier. -
Page 10: The Listening Room
However, none of them tell you anything useful about how a speaker really sounds. Only your ears can decide whether one speaker sounds better than another. Like all our speakers, DALI OPTICON series is designed to reproduce music as honestly as possible. - Page 11 DALI Denmark +45 9672 1155 www.dali-speakers.com...
