Summary of Contents for Dali Euphonia Series

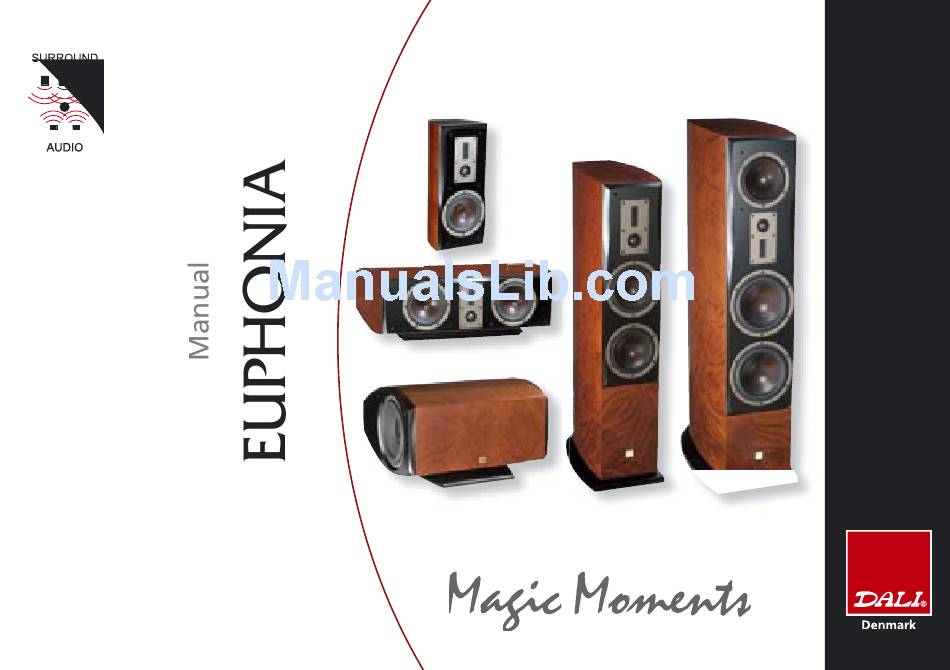

- Page 1 EUPHONIA Series www.dali.dk...
- Page 2 Euphonia It is important to us that your new DALI speakers. nected optimally. This manual contains our recommendations for setup, connection and maintenance. Enjoy! udiophile oudspeaker speaker: ® speakers be set up and con- ® ndustries...
- Page 3 Running-in Like any other mechanical system, a speaker needs to be "run in", so you can look forward to a gradual improvement in sound quality over the initial period. Unlike other mechanical systems, regular use will in fact extend your loudspeakers life- time.
- Page 6 Every room has its own distinctive acoustics, which influence the way we experience the sound from a speaker. In actual fact, it's a matter of how the room accommodates the sound and then dampens it. You can influ- ence the acoustics of your listening room in various ways.
- Page 7 A detail often overlooked is connection to the correct polarity, i.e. the red termi- nal (+) on the amplifier must be connected to the red terminal (+) on the speaker, and the black terminal (-) on the amplifier must be connected to the black termi- nal (-) on the speaker.
- Page 8 Bi-wiring Tri-wiring means that the bass, midrange and treble tone ranges are each fed through their own separate speaker cable. In the ultimate set-up, there is an amplifier to handle each range (tri-amping). Tri-amping is the sophisticated consequence of multi-wiring in a multipath speaker, which allows the maximum benefit of the EUPHONIA MS5.
-
Page 9: Connecting Subwoofer
Connecting the AS2 subwoofer Thanks to its active crossover network and numerous connection options, the AS2 provides further advantages such as stepless variable phase. The AS2 is con- nected to a line signal either via 'Left/Right Input', 'Mono Input' or 'LFE Input'. It is important that the level of the connected line signal is controlled together with the equipment’s volume control. - Page 11 70 Hz and cut off with a 2nd order high-pass filter. This set of ter- minals can be used if the subwoofer is used together with the speaker driven by a separate amplifier, if you want only the frequency range over 70 Hz to be handled here, e.g.
-
Page 12: Adjustment Of Subwoofer
Adjustment of the AS2 subwoofer Adjustement EUPHONIA Begin by setting the 'Level' and 'Low-pass Crossover Fre- quency' to the middle position (’12 o’clock’). Turn the 'Phase' control in the '0' position, and then set 'Power' to the 'ON' position. If the subwoofer is connected via the LFE Input, both the 'Level' and 'Low-Pass Crossover Frequency' controls will not be functioning, and should be set to the minimum position. -
Page 14: Maintenance
- quality in all aspects ® aspects The Euphonia series has been developed and produced without compromise of any kind. To achieve the optimum sound from your Euphonia speakers it is important that all links in your stereo/surround system are premium selection. We therefore... -
Page 15: Technical Specifications
Technical specifications MS 5 Main Speaker Frequency range +/- 3dB 31 - 28.000 Hz Cross over frequencys 685/3.300 Hz(17.000) 3.000 Hz(17.000) Sensitivity(2.83 V/1m) 89 dB 4.0 Ω Nominial impedance Minimum impedance 3.3 Ω Maximum SPL 115 dB Rec. amp. power (8 ohm) - Page 16 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SAFETY...
