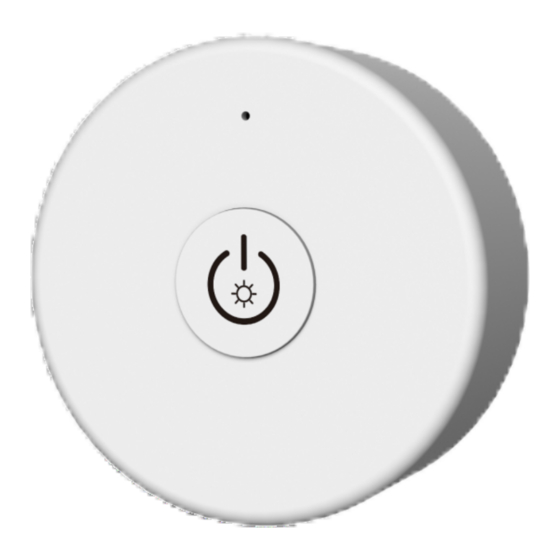

One-key RF Remote Controller
Model No.: AFR-1-1
One-key portable dimmer/ W ireless remote 3 0 m distance/ CR2 0 3 2 battery / M agnet stuck fix
Features
●Apply to single color LED controller, dimming driver or smart lamp.
●Each remote can match one or more receiver.
● R
C 2032 attery pow ered.
b
●Operate w ith LED indicator light.
● Magnet on the back w hich can be easily stuck on any metal surfaces.
Technical Parameters
Input and Output
Output signal
W orking voltage
W orking current
S tandby current
S tandby time
Remote distance
W arranty
W arranty
User Manual Ver 1.0.4
RF 2 .4 GHz
(
)
3 VDC CR2 0 3 2
(
)
＜5 mA
＜2 μA
2 y ears
3 0 m
5 y ears
www.alfaled.sk
S afety and EM C
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
Ta: -30
O
C ~ +55
O
C
Tc: +85
O
C
IP20
Page 1
Advertisement
Table of Contents
Related Manuals for Alfaled AFR-1-1
Summary of Contents for Alfaled AFR-1-1
- Page 1 One-key RF Remote Controller Model No.: AFR-1-1 One-key portable dimmer/ W ireless remote 3 0 m distance/ CR2 0 3 2 battery / M agnet stuck fix LVD RED Features ●Apply to single color LED controller, dimming driver or smart lamp.
- Page 2 AFR-1-1 One-key RF Remote Controller Mechanical Structures and Installations LED indicator 43.00 mm Click to turn on/ off, Press and hold 1-6s to increase/ 17.00 mm decrease brightness. Back holder w ith magnet 26.50 mm CR2032 Battery Note: Before the first use, please remove the protective film on the battery.
