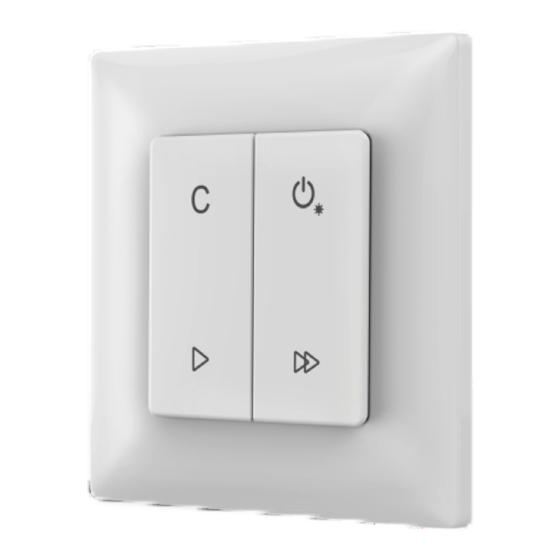

4 -Key Panel RF Remote Controller
Model No.: AFP-F1, AFP-F1-2, AFP-F2, AFP-F3
4 -key panel/ 1 -4 color/ W ireless remote 3 0 m distance/ CR2 0 3 2 battery
AFP-F1
1 Zone Dimming
Features
●Apply to single color, dual color or RGB/ RGBW LED controller.
●Each remote can match one or more receiver.
● CR2032 battery pow ered .
● Removeable and stick anyw here easily, or mount on w all use panel base.
Technical Parameters
Input and Output
Output signal
W orking voltage
W orking current
S tandby current
S tandby time
Remote distance
W arranty
W arranty
User Manual Ver 1.0.2
AFP-F1-2
2 Zone Dimming
RF 2 .4 GHz
(
)
3 VDC CR2 0 3 2
(
)
＜5 mA
＜2 μA
2 y ears
3 0 m
5 y ears
www.alfaled.sk
AFP-F2
1 Zone CCT
S afety and EM C
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
AFP-F3
1 Zone RGB/ RGBW
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
Ta: -30
O
C ~ +55
O
C
Tc: +85
O
C
IP20
Page 1
Advertisement
Table of Contents
Related Manuals for Alfaled AFP-F1
Summary of Contents for Alfaled AFP-F1
- Page 1 4 -Key Panel RF Remote Controller Model No.: AFP-F1, AFP-F1-2, AFP-F2, AFP-F3 4 -key panel/ 1 -4 color/ W ireless remote 3 0 m distance/ CR2 0 3 2 battery AFP-F1 AFP-F2 AFP-F3 AFP-F1-2 1 Zone Dimming 1 Zone CCT...
- Page 2 AFP-F1, AFP-F1-2, AFP-F2, AFP-F3 4-Key Panel RF Remote Controller M echanical S tructures and Installations 14.00 mm 86.00 mm 12.00 mm 50.00 mm Replace batter y : Typical base as below : C 2032 Battery Note: Before the first use, please remove the protective film on the battery.
- Page 3 AFP-F1, AFP-F1-2, AFP-F2, AFP-F3 4-Key Panel RF Remote Controller Key function ● AFP-F1 Single color dimming remote On/ Off: Turn on or off light. Brightness + Brightness+ / - : Adjust brightness . On/ Off Short press 10 levels, long press 1-6s for continuous 256 levels adjustment .
- Page 4 AFP-F1, AFP-F1-2, AFP-F2, AFP-F3 4-Key Panel RF Remote Controller Color: Change static RGB color. Short press get 24 kinds static color, long press for continuous static color adjustment. 25(1) R 100% G 100% B 100% R 100% R 100% G 100%...
