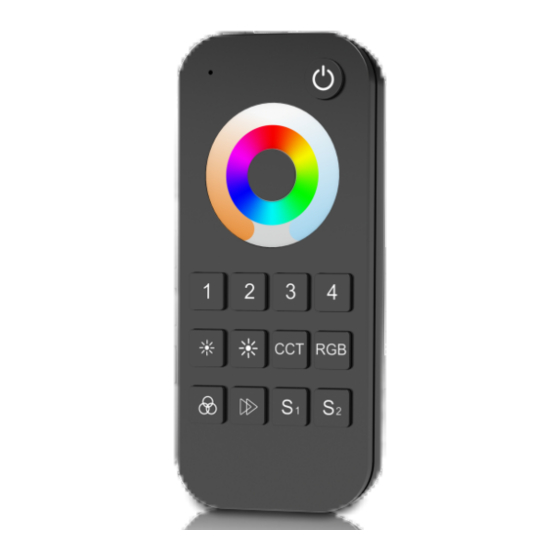

Alfaled AFR-T5 Quick Start Manual

Touch W heel RF Remote Controller
Model No.: AFR-T5/AFR-T10
1 and 4 zone RGB+ CCT/ Touch color w heel/ W ireless remote 30m distance/ AAAx2 battery/ Magnet stuck fix
AFR-T5
1 Zone RGB+CCT

Technical Parameters

Input and Output
Output signal
W orking voltage
W orking current
S tandby current
S tandby time
Remote distance
W arranty
W arranty
M echanical S tructures and Installations
53.00 mm
User Manual Ver 1.0.2
AFR-T10
4 Zone RGB+CCT
RF 2 .4 GHz
( )
3 VDC A A A x 2
(
＜5 mA
＜1 0 μA
1 y ear
3 0 m
5 y ears
17.50 mm

Features

●Apply to RGB+ CCT LED controller.
●
Ultra sensitive color adjustment touch w heel.
●Each remote can match one or more receiver.
●AAAx2 b attery pow ered.
●Operate w ith LED indicator light.
● Magnet on the back w hich can be easily stuck
on back holder or any metal surfaces.
S afety and EM C
EMC standard (EMC)
)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
IP rating
3VDC(AAAx2) Battery
www.alfaled.sk
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
Ta: -30 O C ~ +55
Max.
( ) Tc: +85
O C
IP20
Back holder w ith magnet
O C
Page 1
