Telco Sensors SpaceMaster Series User Manual

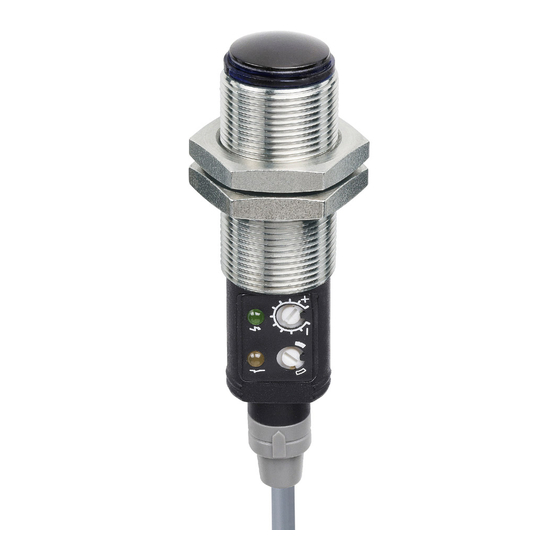

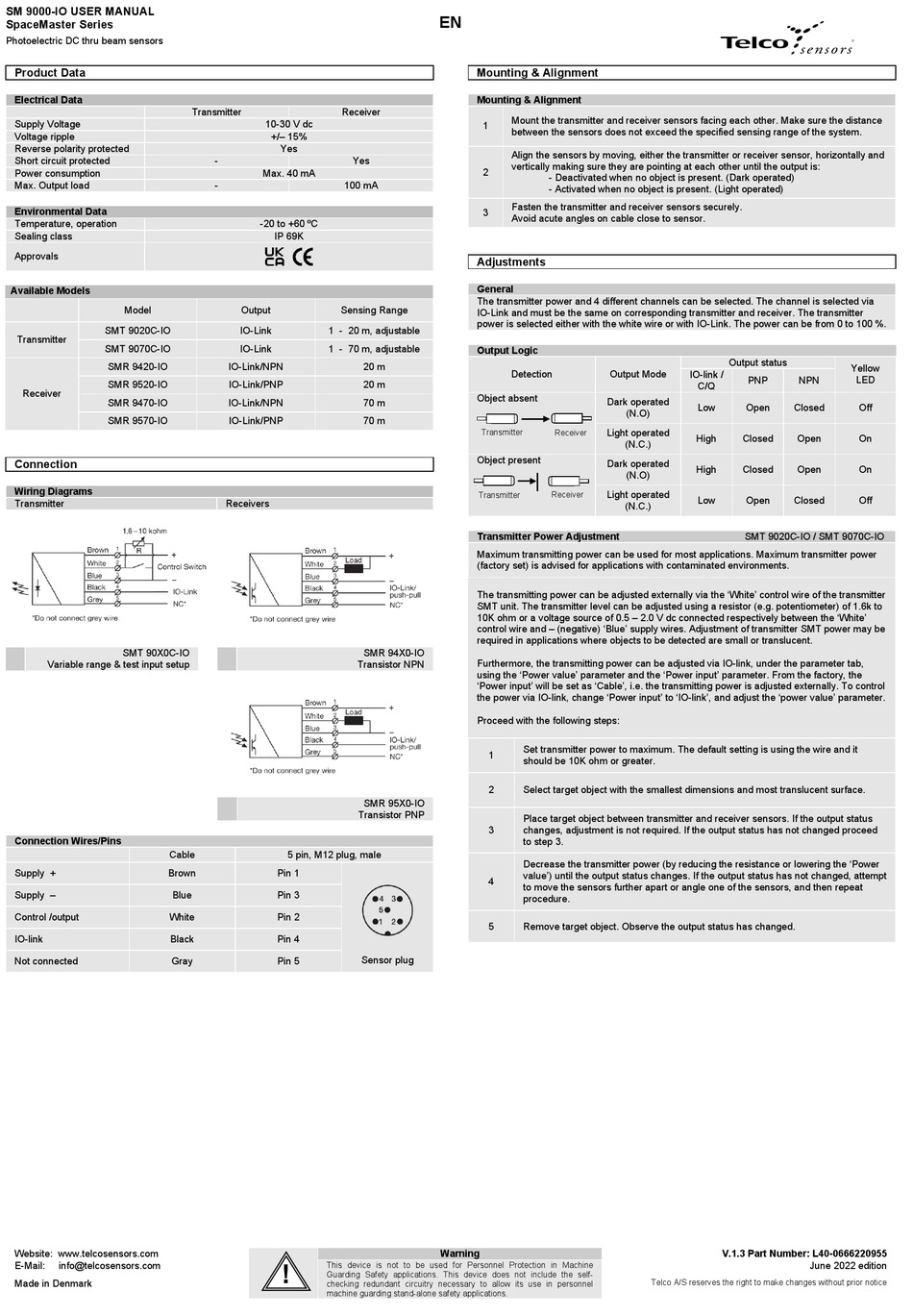

SM 9000-IO USER MANUAL
SpaceMaster Series
Photoelectric DC thru beam sensors
Product Data
Electrical Data
Supply Voltage
Voltage ripple
Reverse polarity protected
Short circuit protected
Power consumption
Max. Output load
Environmental Data
Temperature, operation
Sealing class
Approvals
Available Models
Model
SMT 9020C-IO
Transmitter
SMT 9070C-IO
SMR 9420-IO
SMR 9520-IO
Receiver
SMR 9470-IO
SMR 9570-IO
Connection
Wiring Diagrams
Transmitter
SMT 90X0C-IO
Variable range & test input setup
Connection Wires/Pins
Cable
Supply + Brown
Supply – Blue
Control /output White
IO-link Black
Not connected Gray
Website: www.telcosensors.com
E-Mail: info@telcosensors.com
Made in Denmark
Transmitter Receiver
10-30 V dc
+/– 15%
Yes
- Yes
Max. 40 mA
- 100 mA
-20 to +60 ºC
IP 69K
Output Sensing Range
IO-Link 1 - 20 m, adjustable
IO-Link 1 - 70 m, adjustable
IO-Link/NPN 20 m
IO-Link/PNP 20 m
IO-Link/NPN 70 m
IO-Link/PNP 70 m
Receivers
SMR 94X0-IO
Transistor NPN
SMR 95X0-IO
Transistor PNP
5 pin, M12 plug, male
Pin 1
Pin 3
Pin 2
Pin 4
Sensor plug
Pin 5
!
This device is not to be used for Personnel Protection in Machine
Guarding Safety applications. This device does not include the self-
checking redundant circuitry necessary to allow its use in personnel
machine guarding stand-alone safety applications.
EN
Mounting & Alignment
Mounting & Alignment
Mount the transmitter and receiver sensors facing each other. Make sure the distance
1
between the sensors does not exceed the specified sensing range of the system.
Align the sensors by moving, either the transmitter or receiver sensor, horizontally and
vertically making sure they are pointing at each other until the output is:
2
- Deactivated when no object is present. (Dark operated)
- Activated when no object is present. (Light operated)
Fasten the transmitter and receiver sensors securely.
3
Avoid acute angles on cable close to sensor.
Adjustments
General
The transmitter power and 4 different channels can be selected. The channel is selected via
IO-Link and must be the same on corresponding transmitter and receiver. The transmitter
power is selected either with the white wire or with IO-Link. The power can be from 0 to 100 %.
Output Logic
Detection Output Mode
Object absent
Dark operated
Light operated
Transmitter
Receiver
Object present
Dark operated
Light operated
Transmitter Receiver
Transmitter Power Adjustment
Maximum transmitting power can be used for most applications. Maximum transmitter power
(factory set) is advised for applications with contaminated environments.
The transmitting power can be adjusted externally via the 'White' control wire of the transmitter
SMT unit. The transmitter level can be adjusted using a resistor (e.g. potentiometer) of 1.6k to
10K ohm or a voltage source of 0.5 – 2.0 V dc connected respectively between the 'White'
control wire and – (negative) 'Blue' supply wires. Adjustment of transmitter SMT power may be
required in applications where objects to be detected are small or translucent.
Furthermore, the transmitting power can be adjusted via IO-link, under the parameter tab,
using the 'Power value' parameter and the 'Power input' parameter. From the factory, the
'Power input' will be set as 'Cable', i.e. the transmitting power is adjusted externally. To control
the power via IO-link, change 'Power input' to 'IO-link', and adjust the 'power value' parameter.
Proceed with the following steps:
Set transmitter power to maximum. The default setting is using the wire and it
1
should be 10K ohm or greater.
2 Select target object with the smallest dimensions and most translucent surface.
Place target object between transmitter and receiver sensors. If the output status
3 changes, adjustment is not required. If the output status has not changed proceed
to step 3.
Decrease the transmitter power (by reducing the resistance or lowering the 'Power
value') until the output status changes. If the output status has not changed, attempt
4
to move the sensors further apart or angle one of the sensors, and then repeat
procedure.
5 Remove target object. Observe the output status has changed.
Warning
Tel
Output status
IO-link /
PNP
C/Q
Low Open Closed
(N.O)
High Closed
(N.C.)
High Closed
(N.O)
Low Open Closed
(N.C.)
SMT 9020C-IO / SMT 9070C-IO
V.1.3 Part Number: L40-0666220955
Telco A/S reserves the right to make changes without prior notice
Yellow
LED
NPN
Off
Open On
Open On
Off
June 2022 edition
