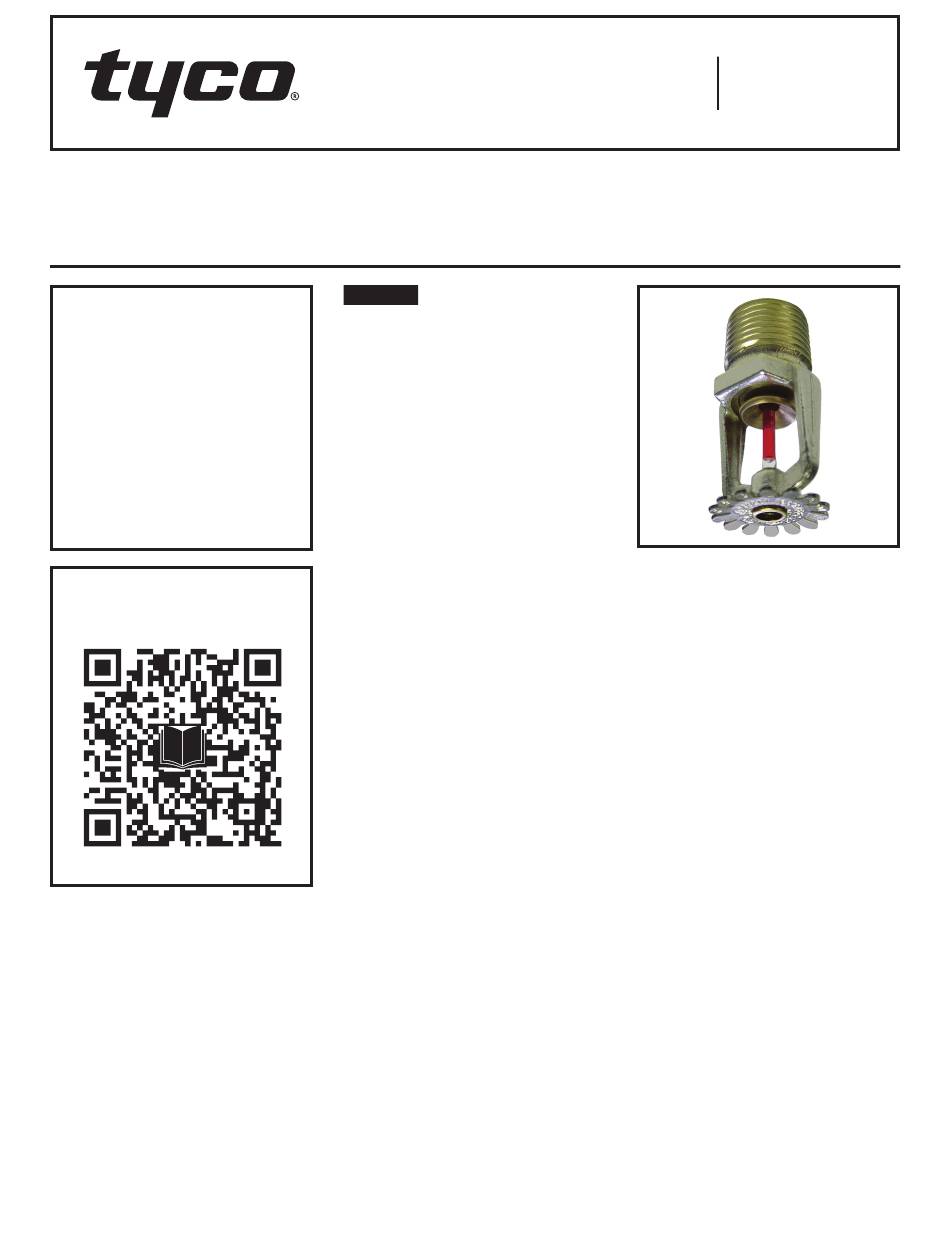

Johnson Controls Tyco TY3201 Manual

Model TY3201 – 80 K-factor
Pendent Sprinkler
Quick Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp179
General
Description

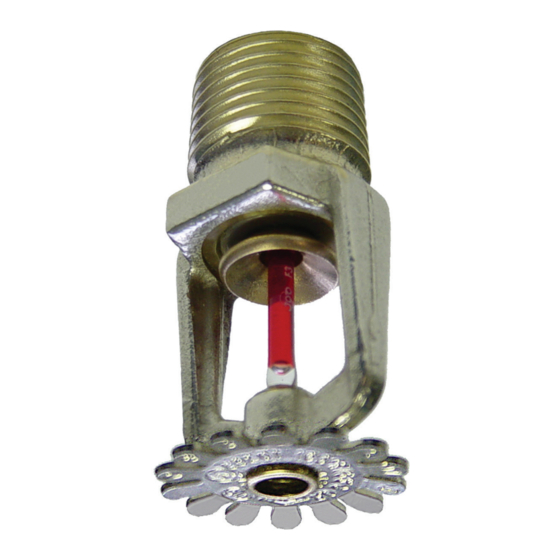

TYCO Model TY3201 80K Quick
Response Pendent Sprinklers are
standard coverage, small frame, 3 mm
glass bulb-type spray sprinklers.
Page 1 of 2
NOTICE
The Model TY3201 Quick Response
Pendent Sprinklers described herein
must be installed and maintained in
compliance with this document, as well
as with the applicable standards of the
National Fire Protection Association
(NFPA), in addition to the standards of
any other authorities having jurisdiction.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY3201 Pendent 80K, 1/2 in NPT
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Maximum Working Pressure
249.5 (17,2 bar), UL and C-UL
175.5 (12,1 bar), FM Approvals
Pipe Thread Connection
1/2 in. NPT
Discharge Coefficient
K=80 lpm/psi
½
Temperature Ratings
154.4°F (68°C)
Finish
Sprinkler: Chrome Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Sealing Assembly . . Beryllium Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
AUGUST 2022
Worldwide
www.tyco-fire.com
Contacts
Operation
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and flow water.
Design
Criteria
TYCO Model TY3201, Quick Response,
Standard Coverage, 80K Pendent
Sprinklers are intended for fire protec-
tion systems designed in accordance
with the standard installation rules
recognized by the applicable listing or
approval agency - for example, the UL
Listing is based on the requirements of
NFPA 13.
TFP179
