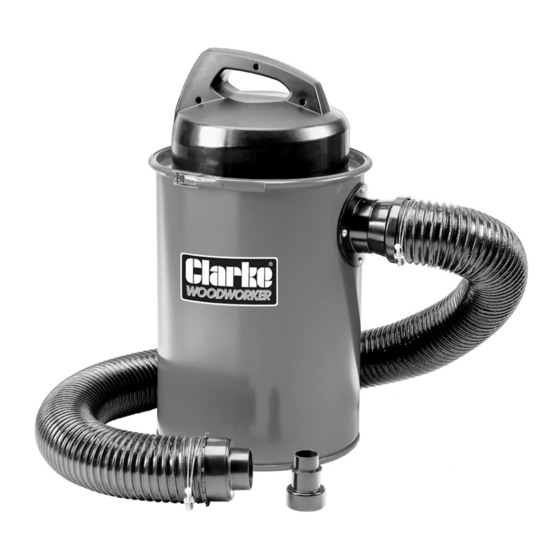

- Page 1 VACUUM EXTRACTOR MODEL NO: CWVE2 PART NO: 6471169 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/22...
-
Page 2: Product Specifications
INTRODUCTION Thank you for purchasing this CLARKE Workshop Vacuum Dust Extractor. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Precautions
4. NEVER use a power product if any part is damaged. Have it inspected and repaired by your CLARKE dealer. DO NOT use if the electric cable, plug, or the machine itself, is in poor condition. - Page 4 DUST EXTRACTOR SPECIFIC SAFETY INSTRUCTIONS 1. This product is for indoor use only. 2. This dust extractor is for collecting wood chips, shavings and dust particles only. DO NOT use with hazardous substances i.e. MDF dust. 3. ALWAYS ensure that the dust extractor is properly positioned where necessary to prevent it from moving during use and that the immediate area is kept clear.
-
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 6 COMPONENTS When unpacking please check contents and advise your dealer immediately if any parts are missing. The essential components are as follows; Description Description Inlet Hose Tapered Hose Connector Dust Container Straight Hose Connector Retaining Band Filter Cartridge On/OFF Switch Filter Bags Motor Housing Hose Adaptor Set (dims shown)
- Page 7 ASSEMBLY 1. Place filter cartridge (1) into a filter bag (2) as in Fig 1. 2. Fold any overhang into the filter cartridge. 3. Push the filter cartridge (1) complete with bag (2), onto the fan housing part of the motor casing (3).
- Page 8 6. Seat the motor housing with filter cartridge/bag onto the canister and secure in place with the locking strap. The over-centre clasp will lock into place. 7. Secure the other end of the inlet hose to the straight hose connector using the remaining hose clamp as shown in Fig 6.
-
Page 9: Operation
OPERATION PREPARING FOR USE Before plugging into the power supply, the dust extractor should be positioned on a firm, level surface. DO NOT cover it and always position it with good all- round air ventilation. The dust extractor must remain upright. 1. -
Page 10: Maintenance
Ensure the hose is kept in good condition. A damaged hose will seriously effect the efficiency of the dust extractor and should be replaced. Contact your CLARKE dealer for replacements. CARE & STORAGE 1. When not in use, switch off and unplug from the power supply and ensure the power cable is not left as a hazard for persons to trip over. -
Page 11: Troubleshooting
1. Inspect/replace any or noisy operation are loose stripped or damaged 2. Motor bearings faulty bolts/nuts & retighten 2. Take to your CLARKE dealer. Loud, repetitious noise or 1. Dust container full 1. Empty canister excessive vibration com- 2. Filter cartridge/bag is 2. -
Page 12: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 13 COMPONENT PARTS Description Description Container Right guard Nut M5 Round Sponge Flat Washer 5dia Long Sponge Suction Inlet Philips screw M5 x 8 Filter Bag Sealing gasket Motor Filter cartridge Philips screw ST6.3x22 Locking Strap Top Cover Philips screw M5 x 14 Large flat washer 5 dia Hose coupling 2 Cable clamp...
- Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity-Eu
DECLARATION OF CONFORMITY-EU Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
