- Page 1 An updated .pdf version of this manual is always available here...
- Page 2 ALTA CALIDAD Y PRESTACIONES. • This system has been designed, fabricated and optimized by Pro DG El sistema ha sido diseñado, ensamblado y optimizado por Pro DG Systems Systems in perfect working order. To maintain this condition and en un estado técnicamente perfecto. Para conservar este estado y asegurar...
- Page 3 Pro DG tripod or base recommended or supplied by Pro DG Systems following Systems siguiendo las indicaciones de instalación. El conjunto del sistema the installation indications.
- Page 4 Pro DG Systems i 803 Manual de usuario User manual Indice – Index. Introducción / Introduction ………………………………………………………………. Pag 4 - Descripción / Description - Especificaciones técnicas y arquitecturales / Technical ………...……………..…………………….……..…. Pag 5 and arquitectural specifications Interior del i 803 / Inside i 803 - Características principales del transductor, Especificaciones...
- Page 5 España. [EN] This manual has been designed to help all the users of the system i 803 from Pro DG Systems to its correct use as well as for the understanding of the benefits and versatility of the same. i 803 is a system totally designed, assembled and optimized in Spain.
- Page 6 Especificaciones técnicas - Technical specifications Power Handling: 280 W RMS (EIA 426A Standard) / 560 W program / 1120 W peak. Nominal Impendence: 4 Ohm. Average Sensitivity: 98 dB / 2.83V / 1m (average of 150-16.000Hz wideband). Calculated Maximum SPL: / 1m 120 dB continuous / 123 dB program / 126 dB peak.
-
Page 7: Key Features

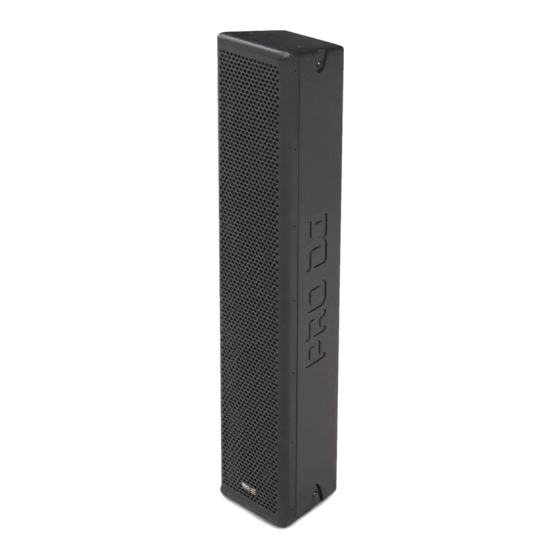

Interior del i 803 - Inside i 803. [ES] El interior del i 803 está compuesto por ocho altavoces Pro DG Systems de 2,75”, 35 W (RMS). Especialmente diseñado bajo nuestros propios parámetros para el mejor rendimiento del sistema. [EN] i 803 incorporates eight Pro DG Systems speakers of 2,75”, 35 W (RMS). Specially designed under our own parameters for the best performance of the system. -
Page 8: Thiele-Small Parameters
THIELE-SMALL PARAMETERS* MOUNTING INFORMATION Resonant frequency, fs 160 Hz Overall diameter 93.5 mm (3.68 in) 5.6 Ω D.C. Voice coil resistance, Re Bolt circle diameter 85 mm (3,35 in) Mechanical Quality Factor, Qms Baffle cutout diameter: Electrical Quality Factor, Qes 0,52 - Front mount 75.9 mm (2,98 in) - Page 9 Dimensiones: 120x40x40mm (4.72x1.57x1.57 in) ------------------------------------------------------------------------------------- Material: Steel, black powder coated, includes safety bolt. It allows stacking one unit i 803 using a tripod or extensible bar. Tube diameter: 36mm (1.42 in) Dimensions: 120x40x40mm (4.72x1.57x1.57 in) Trípode (OPCIONAL) - Tripod (OPTIONAL) Material: Aluminio, recubierto de pintura negra.
- Page 10 Hardware para instalación - Hardware for installation. Accesorio extensible con rosca (OPCIONAL) - Extensible accessory with thread (OPTIONAL) Material: Acero reforzado Color: Negro. Diámetro tubo: 35mm (1.38 in) Altura: 840mm - 1120mm (33.07” - 44.09”) ------------------------------------------------------------------------------------- Material: Reinforced steel. Colour: Black.
- Page 11 Hardware para instalación - Hardware for installation. Tenedor de montaje para dos unidades i 803 (OPCIONAL) Mounting fork for two (2) units i 803 (OPTIONAL) Material: Acero reforzado. Perno de montaje: Diámetro 35x120mm (1.38x4.72 in) Anchura: Ajustable de 310 a 490mm (12.20 - 19.29 in) Carga Máxima:...
