Summary of Contents for Pro DG Systems IT-A 118 B

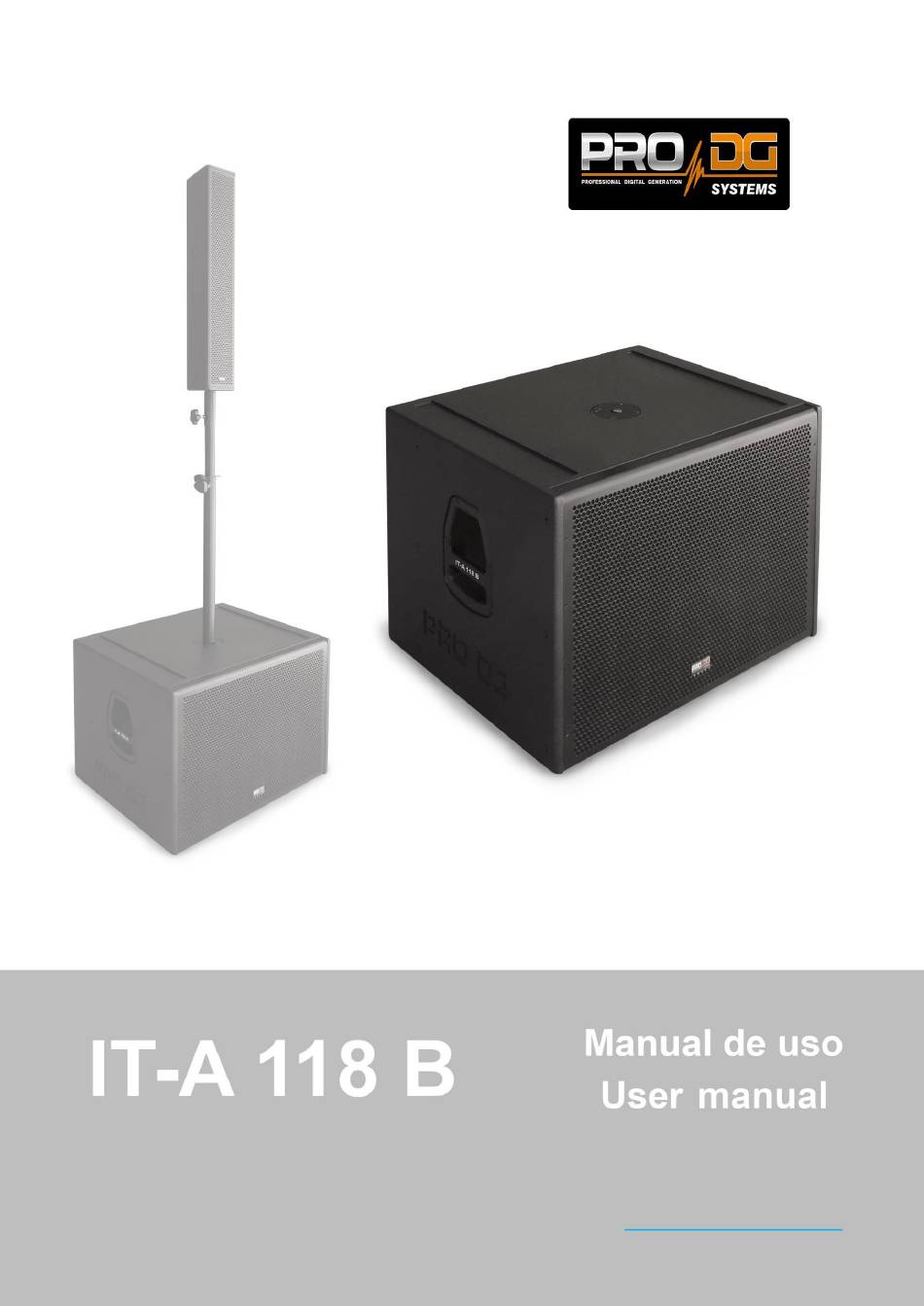

- Page 1 An updated .pdf version of this manual is always available at: www.prodgsystems.com...
- Page 2 ALTA CALIDAD Y PRESTACIONES. • This system has been designed, fabricated and optimized by Pro DG El sistema ha sido diseñado, ensamblado y optimizado por Pro DG Systems en Systems in perfect working order. To maintain this condition and ensure un estado técnicamente perfecto.
- Page 3 • Piezas adicionales: no utilice nunca piezas adicionales que no estén • Additional equipment: don't use additional equipment wich has not be recomendadas por Pro DG Systems. El uso de piezas no recomendadas puede recommended by Pro DG Systems. The use of not recommended provocar accidentes y rotura del sistema.
-
Page 4: Indice - Index
Pro DG Systems IT-A 118 B Manual de usuario User manual Indice – Index. Introducción / Introduction ………………………………………………………………. Pag 4 - Descripción / Description - Especificaciones técnicas y arquitecturales / Technical ………...……………..…………………….……..…. Pag 5 and arquitectural specifications Interior del IT-A 118 B / Inside IT-A 118 B. - Page 5 [EN] This manual has been designed to help all the users of the system IT-A 118 B from Pro DG Systems to its correct use as well as for the understanding of the benefits and versatility of the same. IT-A 118 B is a subwoofer system totally designed, assembled and optimized in Spain.
- Page 6 +/- 3 dB between 30 - 150 Hz. Nominal Directivity: Omnidirectional. Low Frequency Driver: One (1) Pro DG Systems speaker of 18", 8 Ohm, 1000 W. Low Frequency Cutt-off: 30 Hz Linkwitz-riley 24 filter - 100 Hz Butterworth 24 filter. Amplifier included:...
- Page 7 Interior del IT-A 118 B - Inside IT-A 118 B [ES] El interior del IT-A 118 B está compuesto por un altavoz Pro DG Systems de 18”, 1000 W (RMS). Especialmente diseñado bajo nuestros propios parámetros para el mejor rendimiento del sistema.
- Page 9 TWS, interruptor de gestión DSP+ pantalla LCD selección de presets. [EN] IT-A 118 B incorporates a new Class-D amplification module with 2 channels of 1*1000w for Low + 1*600w for SAT, with voltage selector. 96kHz DSP Processor, 24 bit with 3 factory presets. Speakon output for SAT in order to amplify itself and another passive unit IT 1M6 i, IT 1M6 L.A.
- Page 10 Hardware [ES] IT-A 118 B permite la interacción con diferentes sistemas de Pro DG Systems para ofrecer a los profesionales más exigentes la máxima versatilidad y rendimiento, según el tipo de necesidad y evento. [EN] IT-A 118 B allows interaction with different Pro DG Systems products in order to provide with the maximum versatility and performance foe the professional, depending of the type of need and event.
- Page 11 Accesorios - Accesories. [ES] Pro DG Systems ofrece a sus clientes todo tipo de equipamiento y accesorios para sus sistemas. IT-A 118 B dispone de cableado completo del sistema listo para funcionar. [EN] Pro DG Systems offers to their customers all type of equipment and accessories for their systems.
- Page 12 www.prodgsystems.com...
