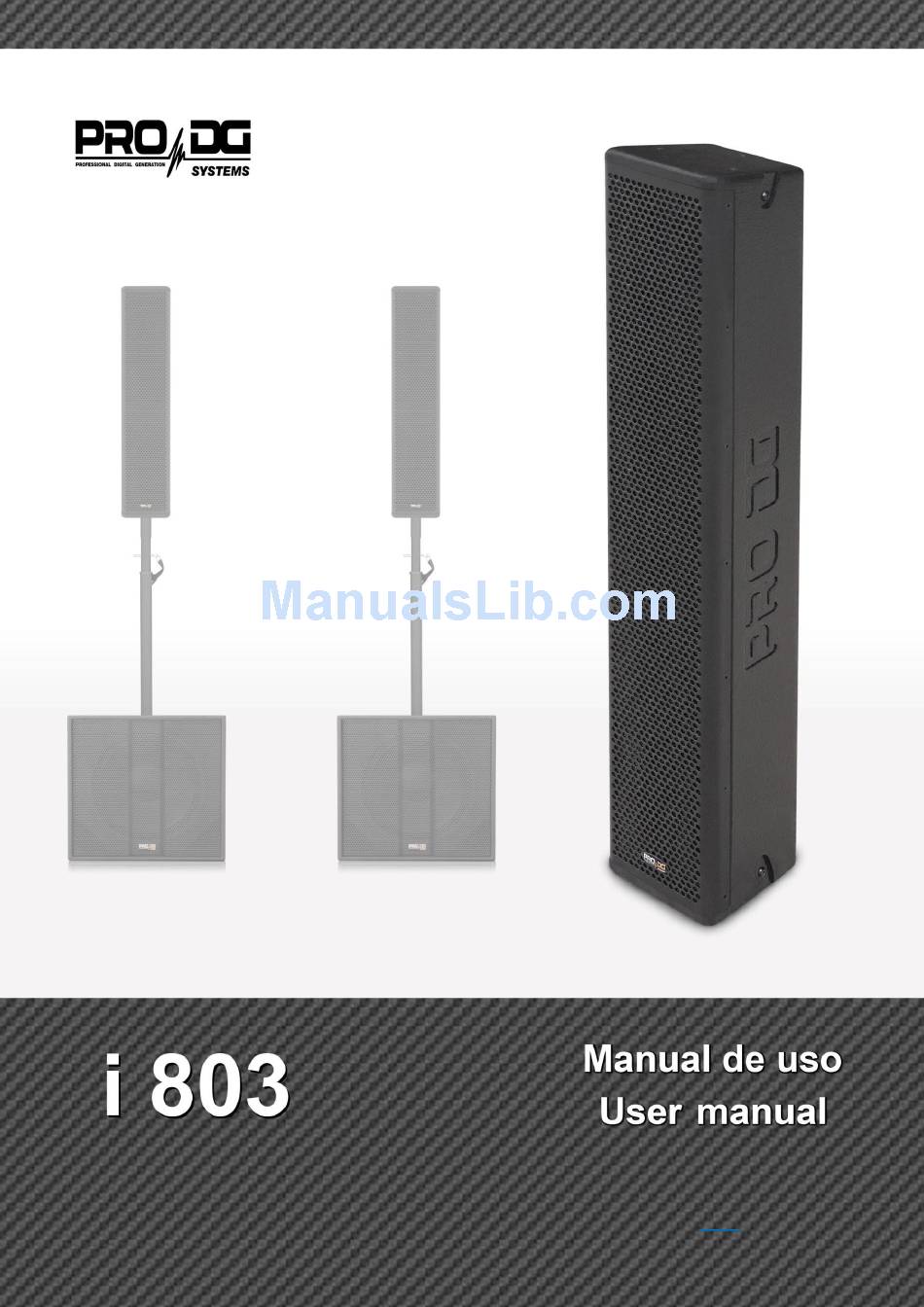

- Page 1 An updated .pdf version of this manual is always available here...
- Page 3 LINK EN ESPANOL JEJ LINK EN ESP AÑOL JEJEJE LINK ESPAÑ...
-
Page 4: Declaración De Conformidad / Declaration Of Conformity
Seguridad General de los productos (General security of the products) 2001/95/CE Que el producto con referencia i 803 cuya descripción es Ultra-compact column speaker 8x3" 280w 4 Ohm es conforme a las siguientes Normas Armonizadas Europeas: That the product with i 803 reference whose description is Ultra-compact column speaker 8x3" 280w 4 Ohm is according to the following European Harmonized Rules: 011 Aparatos de audio, video y aparatos electrónicos análogos. -
Page 5: Indice - Index
Pro DG Systems i 803 Manual de usuario User manual Indice – Index. Introducción / Introduction ………………………………………………………………. Pag 5 - Descripción / Description - Especificaciones técnicas y arquitecturales / Technical ………...……………..…………………….……..…. Pag 6 and arquitectural specifications Interior del i 803 / Inside i 803 - Características principales del transductor, Especificaciones... - Page 6 España, exclusivamente con componentes Europeos. [EN] This manual has been designed to help all the users of the system i 803 from Pro DG Systems to its correct use as well as for the understanding of the benefits and versatility of the same. i 803 is a system totally designed, manufactured and optimized in Spain, exclusively using European components.
-
Page 7: Especificaciones Técnicas
Especificaciones técnicas - Technical specifications Power Handling: 280 W RMS (EIA 426A Standard) / program of 560 W / 1120 W peak. Nominal Impendence: 4 Ohm. Average Sensitivity: 98 dB / 2.83V / 1m (average of 150-16.000Hz wideband). Calculated Maximum SPL: / 1m 120 dB continuous / 123 dB program / 126 dB peak. -
Page 8: Key Features
Interior del i 803 - Inside i 803. [ES] El interior del i 803 está compuesto por ocho altavoces Beyma de 3”, 35 W (RMS). Especialmente diseñado bajo nuestros propios parámetros para el mejor rendimiento del sistema. [EN] i 803 incorporates eight Beyma speaker of 3”, 35 W (RMS). Specially designed under our own parameters for the best performance of the system. -
Page 9: Thiele-Small Parameters
THIELE-SMALL PARAMETERS* MOUNTING INFORMATION Resonant frequency, fs 160 Hz Overall diameter 93.5 mm (3.68 in) 5.6 Ω D.C. Voice coil resistance, Re Bolt circle diameter 85 mm (3,35 in) Mechanical Quality Factor, Qms Baffle cutout diameter: Electrical Quality Factor, Qes 0,52 - Front mount 75.9 mm (2,98 in) - Page 10 Dimensiones: 120x40x40mm (4.72x1.57x1.57 in) ------------------------------------------------------------------------------------- Material: Steel, black powder coated, includes safety bolt. It allows stacking one unit i 803 using a tripod or extensible bar. Tube diameter: 36mm (1.42 in) Dimensions: 120x40x40mm (4.72x1.57x1.57 in) Trípode (OPCIONAL) - Tripod (OPTIONAL) Material: Aluminio, recubierto de pintura negra.
- Page 11 Hardware para instalación - Hardware for installation. Accesorio extensible con rosca (OPCIONAL) - Extensible accessory with thread (OPTIONAL) Material: Acero reforzado Color: Negro. Diámetro tubo: 35mm (1.38 in) Altura: 840mm - 1120mm (33.07” - 44.09”) ------------------------------------------------------------------------------------- Material: Reinforced steel. Colour: Black.
- Page 12 Hardware para instalación - Hardware for installation. Tenedor de montaje para dos unidades i 803 (OPCIONAL) Mounting fork for two (2) units i 803 (OPTIONAL) Material: Acero reforzado. Perno de montaje: Diámetro 35x120mm (1.38x4.72 in) Anchura: Ajustable de 310 a 490mm (12.20 - 19.29 in) Carga Máxima:...
