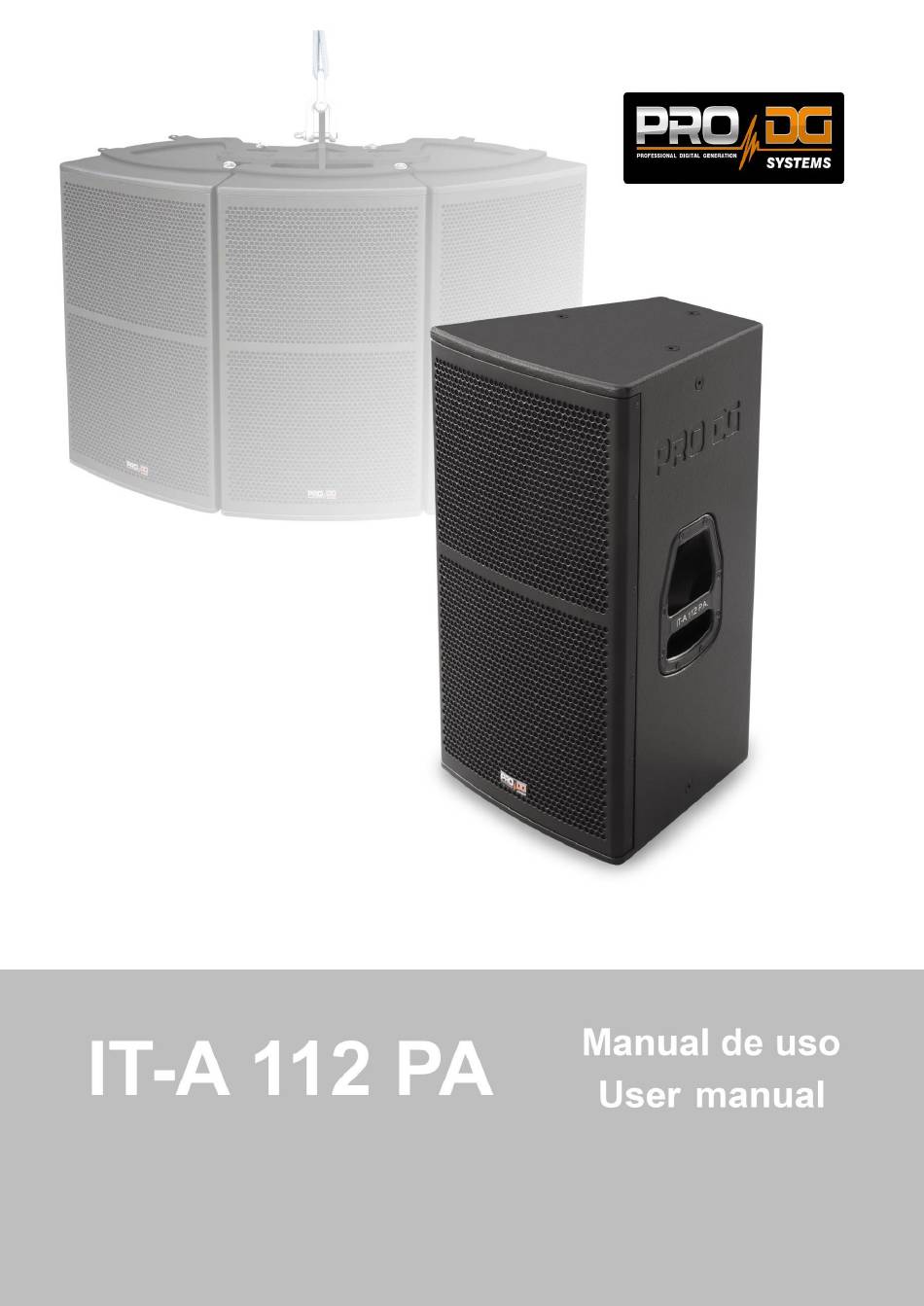

- Page 1 An updated .pdf version of this manual is always available at: www.prodgsystems.com...
-
Page 2: Table Of Contents
……………………….………………………………………………….. Pag 8 directivity horn - Moto r de compresión de IT-A 112 PA. Características princi- pales (1 unidad), Información de montaje, Dimensiones, Respuesta de Frecuencia y distorsión, Curva de Impedancia. IT-A 112 PA Compression driver, features (1 unit), Mounting Information, Dimensions, Frequency Response &... - Page 3 ALTA CALIDAD Y PRESTACIONES. • This system has been designed, fabricated and optimized by Pro DG El sistema ha sido diseñado, ensamblado y optimizado por Pro DG Systems en Systems in perfect working order. To maintain this condition and ensure un estado técnicamente perfecto.
- Page 4 • Piezas adicionales: no utilice nunca piezas adicionales que no estén • Additional equipment: don't use additional equipment wich has not be recomendadas por Pro DG Systems. El uso de piezas no recomendadas puede recommended by Pro DG Systems. The use of not recommended provocar accidentes y rotura del sistema.
-
Page 5: Introducción / Introduction
España. [EN] This manual has been designed to help all the users of the system IT-A 112 PA of Pro DG Systems to its correct use as well as for the understanding of the benefits and versatility of the same. IT-A 112 PA is a self-powered multipurpose system totally designed, assembled and optimized in Spain. - Page 6 +/- 3dB between 40 Hz - 18 KHz. Nominal Directivity: 80x50 rotating diffuser. Low / Mid Frequency Driver: One (1) Pro DG Systems speaker of 12”, 8 Ohm, 500 W. Mid Frequency Cut-off: 70 Hz Linkwitz-riley 24 filter - 1200 Hz Linkwitz-riley 24 filter. High Frequency Driver: One (1) Pro DG Systems driver of 1/4”, 8 Ohm, 100 W.
-
Page 7: Interior Del It-A 112 Pa / Inside It-A 112 Pa
Interior del IT-A 112 PA - Inside IT-A 112 PA [ES] El interior del IT-A 112 PA está compuesto por un altavoz Pro DG Systems de 12”, 500 W (RMS). Especialmente diseñado bajo nuestros propios parámetros para el mejor rendimiento del sistema. - Page 8 THIELE-SMALL PARAMETERS* MOUNTING INFORMATION Resonant frequency, fs 42 Hz Overall diameter 312 mm (12,28 in) 5,8 Ω D.C. Voice coil resistance, Re Bolt circle diameter 294,5 mm (11,59 in) Mechanical Quality Factor, Qms Baffle cutout diameter: Electrical Quality Factor, Qes 0,30 - Front mount 278 mm (10,94 in)
- Page 9 [ES] IT-A 112 PA incorpora además una bocina rotable de directividad constante, específicamente diseñada para trabajar con un motor de compresión Pro DG Systems de 100 W RMS. Las características de directividad constante de este modelo aseguran poder cubrir 80º de amplitud horizontal y 50º de amplitud vertical (en función de su posición), en prácticamente cualquier frecuencia dentro de su radio de acción.
- Page 10 [EN] IT-A 112 PA is also composed by one Pro DG Systems compression driver of 100 W RMS coupled to a wave guide. It is specially designed under our own parameters for the best performance of the system.
-
Page 11: Frequency Response And Distortion
FREQUENCY RESPONSE AND DISTORTION Note: On axis frequency response measured coupled to IT-A 112 P.A. horn in anechoic chamber 2,83 v @ 1m. FREE AIR IMPEDANCE CURVE Note: Electrical impedance measured coupled to IT-A 112 P.A. horn... - Page 12 Amplificación de IT-A 112 PA - IT-A 112 PA Amplification [ES] IT-A 112 PA incorpora un nuevo módulo de amplificación Clase-D de última generación con selector de corriente. Procesador DSP de 96kHz, 24 bit con 3 presets de fábrica. Interruptor de encendido / apagado, nivel de volumen, interruptor de encendido / apagado de Bluetooth, interruptor TWS, interruptor de gestión...
- Page 13 Color: Negro. 35mm - 1.38” Diametro del tubo: 840mm - 1120mm / 33.07” - 44.09” Altura: [EN] Extensible bar with thread for IT-A 112 PA. Material: Reinforced steel. Colour: Black. 35mm - 1.38” Tube diameter: 840mm - 1120mm / 33.07” - 44.09”...
- Page 14 [ES] Accesorio extensible con manivela y sistema »Ring Lock« de König & Meyer para IT-A 112 PA. (Opcional) Material: Acero reforzado. Color: Negro. Extremo(s) del tubo: »Ring Lock« 35 hasta 37mm de diámetro perno roscado M20. 920mm - 1520mm / 36.22” - 59.84”...
- Page 15 Diámetro 35x120mm / 1.38x4.72 in Anchura: Ajustable de 310 a 490mm. 12.20 - 19.29 in. Carga Máxima: 2 x 32 Kg / 2 x 70.55 lbs. “T” support for two (2) units IT-A 112 PA [EN] (Optional) Material: Reinforced steel. Mounting bolt: Diameter 35x120mm / 1.38x4.72 in...
- Page 16 [ES] Bumper de vuelo para trabajar [ES] Bumper de vuelo para trabajar [ES] Hardware de vuelo para en modo cluster. como sistema Line Array. IT-A 112 P.A. [EN] Flight Bumper to work in cluster [EN] Flight Bumper to work as Line [EN] Flight Hardware for IT-A mode.
-
Page 17: Software De Predicción / Prediction Software
[EN] In Pro DG Systems we know that making high quality speakers is an important part of our job. Then, offering the warranty of using speakers properly is another part which is also fundamental in our job. Good tools make the difference for an optimal use of the system. -
Page 18: Accesorios / Accessories
Accesorios - Accesories. [ES] Disponible de cableado completo del sistema listo para funcionar. [EN] Complete cabling for the system is available and ready to use. - Page 19 www.prodgsystems.com...
