- Page 1 Leica ScanStation P40/P30 Quick Guide Version 1.0 English...
- Page 2 ScanStation P40/P30, Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual on the accompanying USB card before using the product. Keep for future reference! Intended use • Measuring horizontal and vertical angles.
- Page 3 Laser products The ScanStation P40/P30 instrument contains the following laser products: Laser product Laser class EDM (Electronic Distance Measurement) module Class 1 Laser plummet Class 1 The classification is in accordance with IEC 60825-1 (2014-05). ScanStation P40/P30, Important Information about your Instrument...
- Page 4 ScanStation P40/P30, Important Information about your Instrument Locations of laser apertures a) Laser beam b) Laser beam (Laser plummet) c) Exit for laser beam (Laser plummet) 008030_001 The product must not be disposed with household waste.
- Page 5 • FCC Part 15 (applicable in US) Conformity to • Hereby, Leica Geosystems AG, declares that the product ScanStation P40/P30 is national regula- in compliance with the essential requirements and other relevant provisions of tions Directive 1999/5/EC. The declaration of conformity can be consulted at http://www.leica-geosystems.com/ce.
-
Page 6: Instrument Components

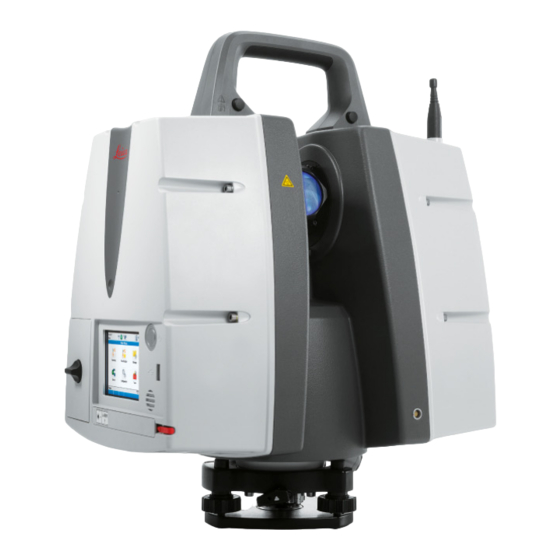

ScanStation P40/P30, Instrument Components Instrument Components Components of the ScanStation P40/P30 a) Antenna b) Removable handle c) Rotating mirror (laser and camera aperture) d) Battery compartment B e) Circular level Socket for power supply, 5 pin female with blue colour... -
Page 7: Technical Data
0 to +40 -25 to +65 Protection against water, dust and sand: Type Protection Instrument IP54 (IEC 60529) Dust protected Protection against splashing water from any direction Humidity: Type Protection Instrument Max 95 % non condensing ScanStation P40/P30, Technical Data... -
Page 8: Care And Transport
ScanStation P40/P30, Care and Transport Care and Transport Care and transport • Carry the product in its original container or carry the tripod with its legs splayed across your shoulder, to protect the product against shock and vibration. • Periodically carry out test measurements and perform the field adjustments indi- cated in the User Manual, particularly after the product has been dropped, stored for long periods or transported. -
Page 9: Operation
Operation The battery must be charged before using it for the first time. Turning on and off the instrument 2s > ON 2s > OFF 008031_001 ScanStation P40/P30, Operation... -
Page 10: Ec Declaration Of Conformity
EC Declaration of Conformity This corresponds to EN ISO/IEC 17050-1. EC Declaration of Conformity We, Leica Geosystems AG, CH-9435 Heerbrugg (Switzerland), declare under our sole responsibility that the product(s) ScanStation P40/P30, following the provision of Directive(s) • 2006/42/EC Machinery (MD) •... - Page 11 For a signed version and translations into the official EU languages please refer to: http://www.leica-geosystems.com/ce ScanStation P40/P30, EC Declaration of Conformity...
