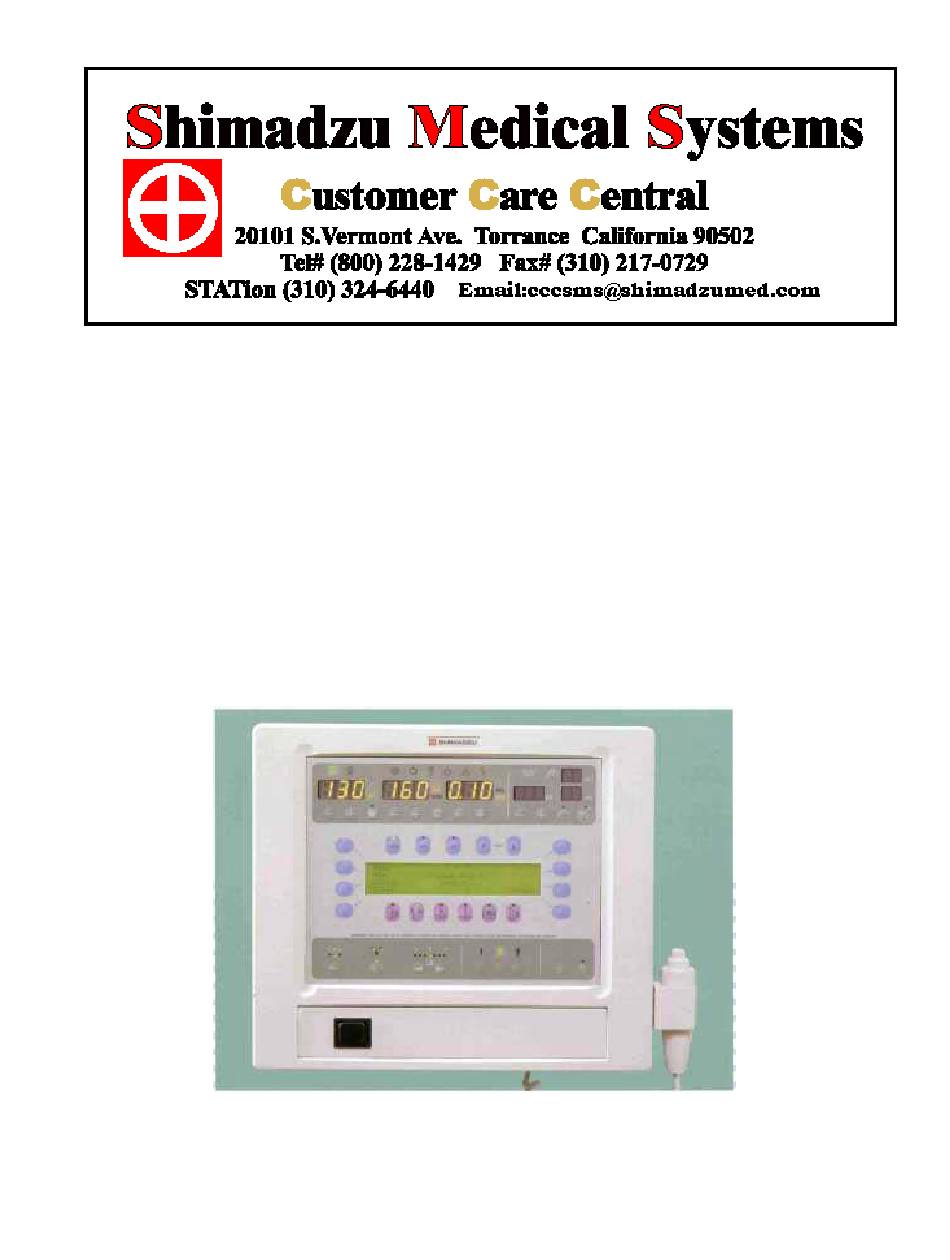

Installation Guide
For
UD 150L-30 EX/FX
UD150L30-FX/EX Installation Guide, REV_B
Page 1 of 35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UD 150L-30 EX and is the answer not in the manual?

Questions and answers

Related Manuals for Shimadzu UD 150L-30 EX

Summary of Contents for Shimadzu UD 150L-30 EX

  • Page 1 Installation Guide UD 150L-30 EX/FX UD150L30-FX/EX Installation Guide, REV_B Page 1 of 35...

  • Page 2: Table Of Contents

    Contents 1. General information 1.1 Component location 1.2 Mandatory modification 2. Connection of the system 2.1 Power transformers 2.2 Cable connection 3. Settings and adjustments 3.1 Settings 3.2 Adjustments 4. Appendix A. Mandatory modification B. List of error message C. List of Potentiometers D.

  • Page 3: General Information

    1. General information • Component location Before starting the installation, locate all major components and PCBs in the generator. Following three figures is the illustration for component location. Figure 1-1 Front View of UD150L-30/FX UD150L30-FX/EX Installation Guide, REV_B Page 3 of 35...
  • Page 4 Figure 1-2 Front view of UD150L-30/FX (open swing panel) UD150L30-FX/EX Installation Guide, REV_B Page 4 of 35...
  • Page 5 Figure 1-3 Back view of UD150L-30/FX UD150L30-FX/EX Installation Guide, REV_B Page 5 of 35...

  • Page 6: Connection Of The System

    2. Connection of the system 2.1 Power transformers • A step down transformer, (XAT-2) is normally shipped together with this generator for installation. This transformer can provide proper power input for UD150L-30 FX/EX generator, YSF/RS table system, HMS/AID high-speed starter, and other peripheral accessories. •...
  • Page 7 HMS-3. Follow the instruction in Section 6 on page 11. (X-ray tube must be connected to perform setup mode.) • Table power If a SHIMADZU table is to be installed, connect 3 φ 200 V from XAT-2 step down transformer to the power input terminal block for table. • Table interface with generator...
  • Page 8 • Bucky connection CAUTION: If UD150L30-FX is equipped only with SHIMADZU Bucky, YOU MUST DISCONNECT CABLES between TERMINAL-LF30 and TERMINAL LFX PCB. This includes 1B11, 1B1, 1B22, 1B2, 2B11, 2B1, 2B22, and 2B2 terminals on TERMINAL-LF30 PCB. Tape all disconnected terminals separately and secure them with other cables. Then connect Bucky cable directly to TERMINAL-LF30 PCB as stated below.
  • Page 9 CONNECTION OF NON-SHIMADZU BUCKY SYSTEM TERMINAL-LF30 TERMINAL-LFX NON-SHIMADZU BUCKY L 100 X0 1D JD 2 CONFIRMATION OF 1 B11X 1 B11 JP 2C GRID MOVING JB 2B 1 B1 1 B1X JB 2A 24 V DC RETURN SIGNAL K 27 B...

  • Page 10: Cable Connection

    • I.I. mode signal for under table collimator UD150L-30/FX YSF series table TERMINAL-LF30 PCB GENERATOR I/F PCB XS cable (collimator control) Adapter • I.I. Mag. Mode selection output TERMINAL-LF30 PCB has several terminals for I.I. Mag. mode output selection. These terminals are IF0, IF1, IF2, IF3, and IF4.
  • Page 11 TV 2 • Photo timing connection • For SHIMADZU Bucky with SPT photo timing connection, check the installation manual section 6.2. • If you programmed the Comet Chambers to Detector 2, follow the stated below diagram for connection. Comet Chamber...
  • Page 12 Setting Change the position of SW1 to ON position according to the position where Comet Chamber is connected. For example, if Comet was connected to DET2, set SW1-3 to ON. SW1-2 SW1-3 SW1-4 DET1 DET2 DET3 Adjustments Left Center Right Short Time Long Time * DET1...

  • Page 13: Settings And Adjustments

    Normal use for operating terminal SW3-7 OFF Download/upload mode • SYSTEM-LF30 PCB SW1 PREP SW2 X-ray (RAD) SW3-1 ON When using SHIMADZU CCD camera SW3-1 OFF When using other camera SW3-2 ON SW3-2 OFF UD150L30-FX/EX Installation Guide, REV_B Page 13 of 35...

  • Page 14: Adjustments

    • ANALOG-LF30 PCB SLIDE SWITCH: S1 Normally on S side • PH POWER-96 PCB SLIDE SWITCH AUTO Photo pick up type Int or Ext Setting for Ba comp LTC on/off PMT HV setting mode • PH CONT-98 PCB SLIDE SWITCH: S2 LTC ON OFF* OFF* OFF*...
  • Page 15 3.2.2 Power ON check up • Check all DC and AC power according to the table below. Name Measuring point Voltage Note T2 transformer 10LA-0LA 10.5V + 1V 100LB-0LB 105V + 10V T1 transformer L100-L0 AC 105V + 5V L125-L0 AC 130V + 10V A125-A0 AC 125V + 5V...
  • Page 16 Switch both probes to IGBT-QB and IGBT-QD side for the same purpose. Adjust VR12 on ANALOG-LF30 again if necessary. Reconnect J202, J203 and remove all jumpers for normal operation. IGBT layout Sample Waveform • Reset everything back to normal condition. 3.2.3 Initial setting •...
  • Page 17 Turn on S2-8 on NEXSC PCB. Go through the following mode base on the components for installation. General Mode Tube data mode Non standard tube mode (must program this mode for non-SHIMADZU tubes. Contact SMS for tube data) Option mode 3.2.4 Verification and calibration •...
  • Page 18 • FVF mode calibration 1) First, you need to set mA curve at ANALOG-LF30 PCB first before you adjust FVF, Fluoro filament heating. Refer to Appendix F and page 18/27 of ANALOG-LF30 connection diagram. 2) Turn off S2-2 on ANALOG-LF30 PCB to disable tube current feedback. (Make sure to turn it ON after you finish this calibration) 3) Connect a DVM at FmA3, CP79 at ANALOG-LF30 PCB.

  • Page 19: Appendix

    4. Appendix A. Mandatory modification • Modification of SYSTEM-LF30 PCB is mandatory for the following version SYSTEM-LF 30 BOARD (501-79573) B or earlier Rev. SYSTEM-LF 30 ASSY (501-79752) D or earlier Rev. If you have Rev. E or after, there is no need for you to perform this modification. •...
  • Page 20 J8 on SYSTEM-LF 30 PCB *APR1 ________1 EXPWC ________2 *APR3 ________3 *APR2 ________4 *APR5 ________5 *APR4 ________6 *HX1C ________7 *APR6 ________8 EXPWB ________9 *AR1C _______10 *EXPEB _______11 *EXTEA _______12 *EXTED _______13 *EXTEC _______14 *RDER _______15 *EXTEE _______16 *FEXP _______17 *HDEV _______18 EXPWA _______19...

  • Page 21: List Of Error Message

    B. List of error message Code Meaning Explanation Reference Circuit Power Down DC –15 V malfunction SYSTEM-LF30 13/18 Charge Voltage Over Charging Voltage abnormal ANALOG-LF30 9/27 Filament Current Over Heating of filament abnormal ANALOG-LF30 17/27 PKV Over Set KV over ANALOG-LF30 9/27 TKV Over Measured KV out of range...

  • Page 22: List Of Potentiometers

    C. List of Potentiometers ANALOG-LF30 PCB NAME PURPOSE CHECK PIN INSTALLATION KV+ ADJ Adjust for KV level (+) Meter Not Required WF ADJ+ Adjust for KV reponse (+) Meter Not Required WF ADJ- Adjust for KV reponse (-) Meter Not Required KV- ADJ Adjust for KV level (-) Meter...
  • Page 23 SYSTEM-LF30 PCB NAME PURPOSE CHECK PIN INSTALLATION Photo-S Ref V(4V/SEN=L,D=0 @90KV) Not Required PH-HVS PMT (1V/-100V) Not Required Filament heating limit (5V/5A) Not Required FVF (5V/5A) Not Required GAIN GAIN (for photocell) OP amp A4-1 Photocell required Short time for photocell OP amp A4-1 Photocell required FVR (5V/5A)
  • Page 24 PH CONT-96 PCB NAME PURPOSE CHECK PIN INSTALLATION VR21 LTC DET1 Correct DET1 long time Film Density Required VR22 Perform correction for short time Film Density Required VR86 LTC DET2 Correct DET2 long time Film Density Required VR87 LTC DET3 Correct DET3 long time Film Density Required...

  • Page 25: List Of Leds

    D. List of LEDs ANALOG-LF30 PCB Color Name Meaning when ON LED1 Measured tube voltage over LED2 Measured tube current over LED3 Setting tube voltage over LED4 Primary charge over LED5 Green Filament heating OK LED6 Primary charge (-) LED7 Primary charge (+) LED8 LVOVER...
  • Page 26 PH CONT-96 PCB Color Name Meaning when ON LED1 Green IP OFF Output phototimer shut down signal LED2 Green DET2 Selecting DET2 LED3 Green DET3 Selecting DET3 I/O 2-96 PCB Color Name Meaning when ON LED1 CLK1.5 UD150L30-FX/EX Installation Guide, REV_B Page 26 of 35...
  • Page 27 Tec5 ON (o) other Tube Data Mode Tube #1 See Tube Data on SHIMADZU Web Site Tube #2 See Tube Data on SHIMADZU Web Site Ext. Tube Data Mode See Tube Data on SHIMADZU Web Site See Tube Data on SHIMADZU Web Site...
  • Page 28 F. Fluoro mA curve setting (ANALOG-LF30 PCB) At ANALOG-LF30 PCB, adjust the following potentiometers to achieve the mA curve as shown in the figure. VR 34 to increase/decrease the mA level, under 50 KV Set to 0.3 mA VR 27 to change the first knee point for mA Set to 50 KV VR 29...
  • Page 29 G. Tube data for RAD60 and RAD56 X-ray tube data for Nonstandard Tube Data Mode X-ray Tube Type /Focus size Type Large focus Small focus RAD-60 HS 1.2 mm 0.6 mm High speed rotation Anode rotation Maximum KV 150 KV Minimum KV 40 KV HU load factor...
  • Page 30 Large focus(mA) Small focus(mA) Maximum mA Minimum mA UD150L30-FX/EX Installation Guide, REV_B Page 30 of 35...
  • Page 31 X-ray tube data for Nonstandard Tube Data Mode X-ray Tube Type /Focus size Type Large focus Small focus RAD-60 1.2 mm 0.6 mm High speed rotation Anode rotation Maximum KV 150 KV Minimum KV 40 KV HU load factor 90 % CINE load factor 90 % HU cooling curve...
  • Page 32 X-ray tube data for Nonstandard Tube Data Mode X-ray Tube Type /Focus size Type Large focus Small focus RAD-56 1.2 mm 0.6 mm High speed rotation Anode rotation Maximum KV 150 KV Minimum KV 40 KV HU load factor 90 % CINE load factor 90 % HU cooling curve...
  • Page 33 Large focus(mA) Small focus(mA) Maximum mA Minimum mA UD150L30-FX/EX Installation Guide, REV_B Page 33 of 35...
  • Page 34 X-ray tube data for Nonstandard Tube Data Mode X-ray Tube Type /Focus size Type Large focus Small focus RAD-56 HS 1.2 mm 0.6 mm High speed rotation Anode rotation Maximum KV 150 KV Minimum KV 40 KV HU load factor 90 % CINE load factor 90 %...
  • Page 35 For more information about non-standard X-ray tube, check SHIMADZU service Web Site. At www1.shimadzumed.com/ccc History of Revision: REVISION B (Change from A) 1. FmA curve adjustments 2. Example for Initial Settings 3. Tube data for RAD 56 and RAD 60 Change 1.
