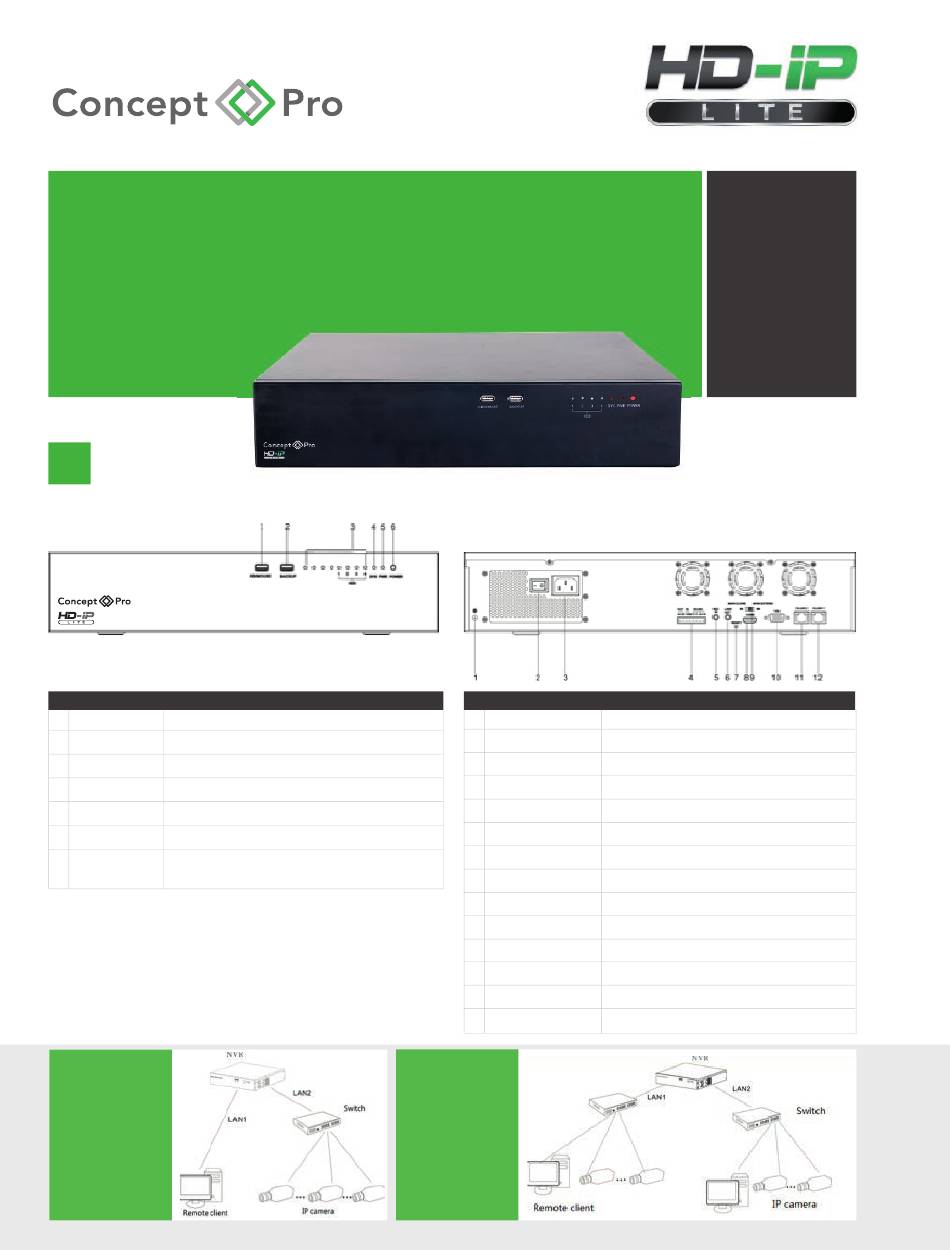

VHDIPL-32-4 / VHDIPL-32-8
32 CHANNEL NETWORK VIDEO RECORDER
1
INSTALLATION
front panel
No.
Name
Description
No.
Name
Description
1
USB Interface
For connecting external mouse and keyboard.
2
USB Interface
For connecting USB memory stick.
3
HDD 1-4, HDD 1-8 HDD installed solid blue, data read and write LED is fl ashing blue.
4
System LED
The system LED is a solid red.
5
Power LED
VHDIPL is turned on and the power LED is a solid red.
6
Power button
Power ON/OFF key – need to input password when shutting
down.
BASIC SETUP
rear panel
No.
Name
1
Ground connector
2
Power button
3
Power interface
4
Alarm Out
Alarm In
RS485
5
Audio input
6
Audio Output
7
Reset
8
HDMI
9
HDMI & VGA switch
10
VGA
11
G-LAN2
12
G-LAN1
Advanced
SETUP
NVR in
QUICK
view
START
GUIDE
Description
Safety ground connector.
Power ON/OFF.
AC110/220V power in.
1ch Alarm Out, for future development.
1ch Alarm In for future development.
1ch RS485 for future development.
Line in.
3.5mm linear audio output.
Press for 5 seconds to reset.
HDMI output.
For future development.
VGA output.
RJ45 10/100/1000Mbps.
RJ45 10/100/1000Mbps.
