Load(Ω): RL≤ (U-11)/0.02（2-wire）;≥10kΩ（3-wire）
Intrinsic safe version mark:ExiaIICT6Ga;
ExiaIICT4Ga(ATEX)
EC-Type Examination Certificate Number: Presafe 17 ATEX 11284X
Intrinsically safe coefficient:
Ui=28VDC Ii=93mA Pi=0.65W Ci=0.044uF Li=0mH
ATEX:
Ui=28VDC Ii=115mADC Li=0mH Ci=0.055uF Pi=0.66W (2-wire)
Ui=26VDC Ii=140mADC Li=0mH Ci=0.055uF Pi=0.66W (3-wire)
Ui=15VDC Ii=200mADC Li=0mH Ci=0.0451uF Pi=0.75W (3-wire)
Protection Rating :IP68

3 Construction and Outline Dimension

3.1 Construction

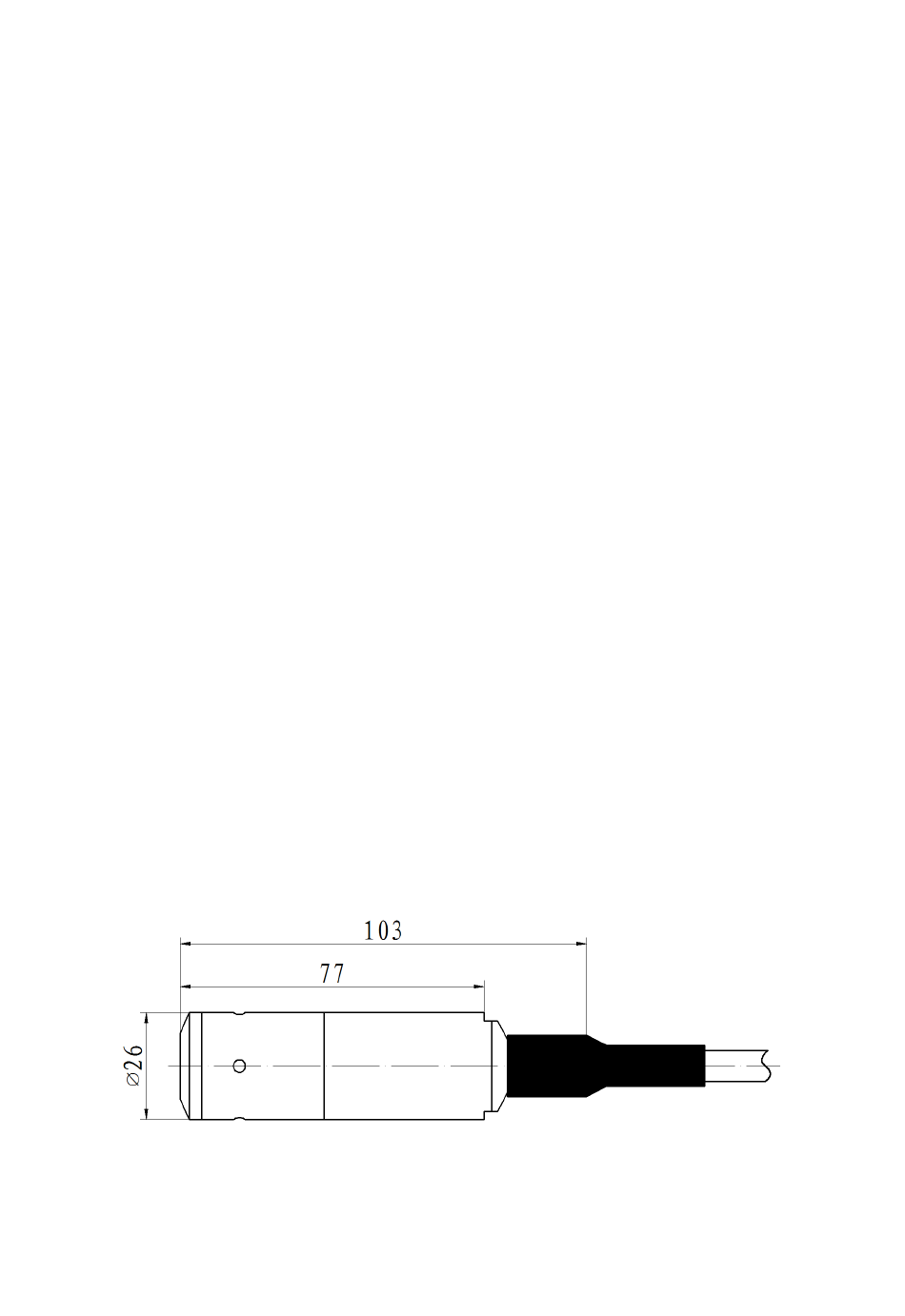

3.1.1 The transmitter construction to see Fig. 1:
Unit:mm
Fig. 1
3.1.2 Outline and Dimension
