Clevertronics L10 LIFELIGHT PRO LWPLIFE-PRO-CM Series Installation & Maintenance Instructions

Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Zoneworks and DATA Monitored Options
Fittings with part numbers -ZW, -HV, -DATA
These fittings are monitored using either Powerline Carrier Technology that utilize the power cable to
provide data communication, RF transceiver modules operating in the ISM band or a dedicated data cable
to/from data routers installed on a dedicated data trunk connected to a central Server (can also be
connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate
testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a single push
of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides a
multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HV, DATA Commissioned
ZW, DATA Un-commissioned
Un-commissioned
HV
With network connectivity
Un-commissioned
HV
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HV Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI Option
Lifelights with part numbers LWPLIFE-PRO-DALI-CM
connection and integration to 3 rd Party Lighting Control Systems. Before installing the LWPLIFE-PRO-
DALI-CM please confirm that the Lighting Control System has the capability to monitor DALI Emergency
Luminaires. The LWPLIFE-PRO-DALI-CM will be addressed and configured into the control system by
the Lighting Control System Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
are fitted with Zoneworks communications modules (nodes).
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s
are fitted with DALI modules (nodes) that facilitate

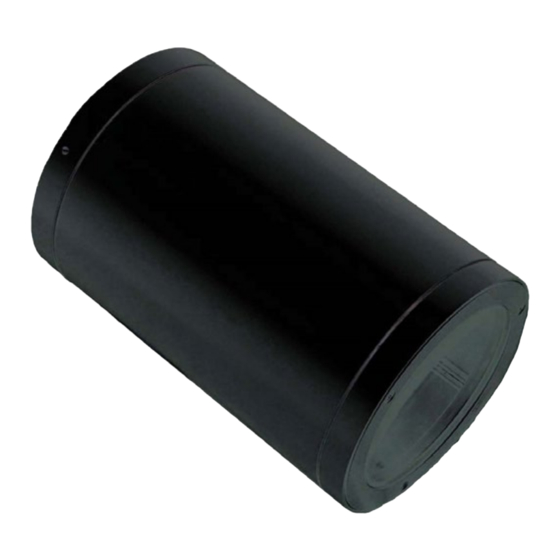

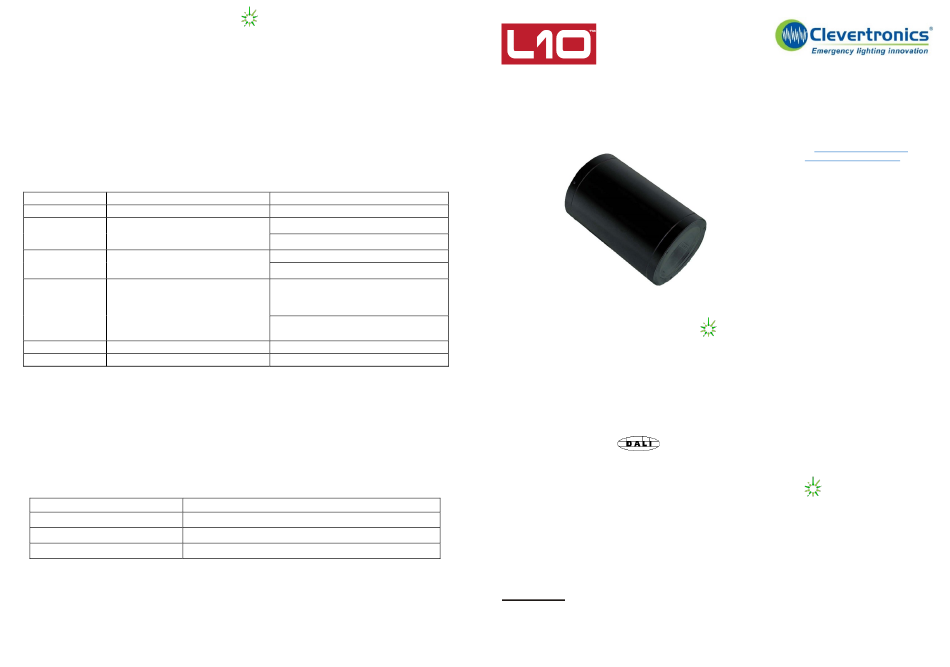

L10™ Weatherproof LIFELIGHT PRO Ceiling
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements of
AS2293.3: 2005 and AS/NZS CISPR15: 2011
NOTE: Standard product codes with this symbol
with Clevertest Plus capability. Please refer to the operation
guide supplied with the product for details.
LWPLIFE-PRO-xx-CM-yy
Models:
Testing: Options:
Manual Test xx = Blank
Zoneworks xx = ZW Colour variants
Z/W DATA xx = DATA
DALI xx = DALI
HIVE xx = HV
Clevertest xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
PLUS capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1530230 Battery, 3.3 Volt 5Ah Li-ion 200mm Lead and Bracket
1100817 Lifelight Pro Head Assembly, Round, LT, Blk, Gen 2
1100819 Lifelight Pro Head Assembly, Round, LT, Gen 2
AUM01370120001 LLIFE-PRO-CKIT-NP, LifelightPro,Control Only,Batten,L10, CTP, OWC, NP
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Mount
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9248 3720
Fax: +61 8 9248 3725
are enabled
New Zealand
Phone: +64 800 548 448
yy=BLK, MSLV
are activated with Clevertest
(For -BLK)
1942142 V1.1 3 March 2020
