Clevertronics L10 LIFELIGHT PRO LLIFE PRO Series Assembly, Installation & Maintenance Instructions

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
To access test switch of LLIFE-PRO-RECWP front cover needs to be removed.
Maintained fittings (LLIFEM-PRO-xx-yyv-ww) cannot be scanned with a camera using the CleverSparky
App as the maintained light source interferes with the camera scanning function. To register the fitting
manually enter the serial number from the QR code and visually read the test result and enter manually
into CleverSparky.

Zoneworks and DATA Monitored Options

LLIFE PROs with part numbers LLIFE-PRO-ZW, LLIFE-PRO-DATA
communications modules (nodes).These fittings are monitored using either Powerline Carrier Technology
that utilises the power cable to provide data communication or a dedicated data cable to/from data routers
installed on a dedicated data trunk connected to a central Server (can also be connected via
Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate testing and
collate test data from each Lifelight. Zoneworks LLIFEs can be commissioned by a single push of the test
switch or scanning of the supplied barcode. The LED Test Switch indicator provides a multifunction
indication of the status of the Lifelight during testing and normal operation:
State LED Operation
Commissioned LED on Solid (Green)
Un-commissioned LED flashes at 0.5Hz (0.5s Green, 0.5s Yellow)
Emergency Light Test In Progress LED flashes at 3s On (Yellow) & 0.5s Off
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks LW system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl.
DATA version)

DALI EM Option

LLIFEs with part numbers LLIFE-PRO-DALI are fitted with DALI modules (nodes) that facilitate connection
rd
and integration to 3 Party Lighting Control Systems. Before installing the LLIFE-PRO-DALI please
confirm that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The
LLIFE-PRO-DALI will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.

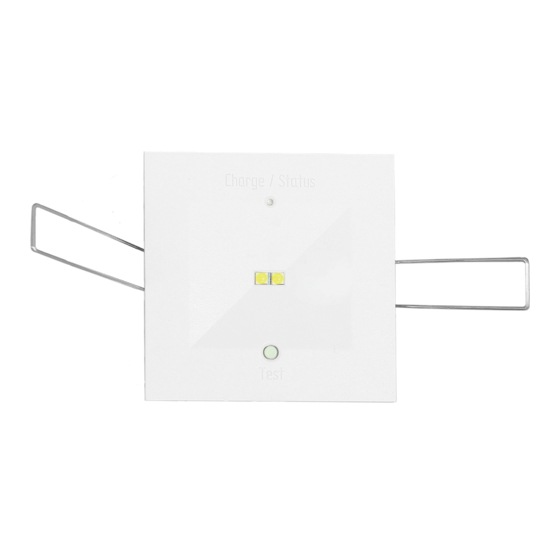

L10™ LIFELIGHT PRO Recessed Emergency
Installation & Maintenance Instruction Leaflet
are fitted with Zoneworks
Designed in Australia to comply with the
requirements of AS2293.3: 2005 and AS/NZS
CISPR15: 2011.
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please
refer to the operation guide supplied with the product
for details.
Models:
Testing
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1530230
1100871
1100868
LLIFE-PRO-CKIT
LLIFEM-PRO-CKIT
8002917

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
LLIFEz-PRO-xx-yyv-ww
:
Manual Test xx = Blank
Zoneworks xx = ZW
Zoneworks DATA xx = DATA
DALI Compatible xx = DALI
Clevertest xx = CT
BATTERY: L10 3.3V 5AH. 200mm lead.Brkt..
Lifelight Pro Head Assbly,Rnd,Lge+Ring,LT,Blk,Gen2
Lifelight Pro Head Assbly,Rnd,Large+Ring, LT,Gen 2
Lifelight Pro, Control Only, L10
Lifelight Pro, Maintained, Control Only, L10
PCA: LLPRO RBCIL CT10142-L8 Non-CTP (for use with -RBCIL)
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email:
info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
News South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9248 3720
Fax: +61 8 9248 3725
New Zealand
Phone: +64 800 548 448
:
Options
Maintained z = M
Non-Maintained z = Blank
Square v=SQ
Recessed Weatherproof yy=RECWP
Reduced Brightness Status LED yy=RBCIL
Black (Colour of Head) ww=BLK
are activated with Clevertest PLUS
1941953 V1.1 3 March 2020
