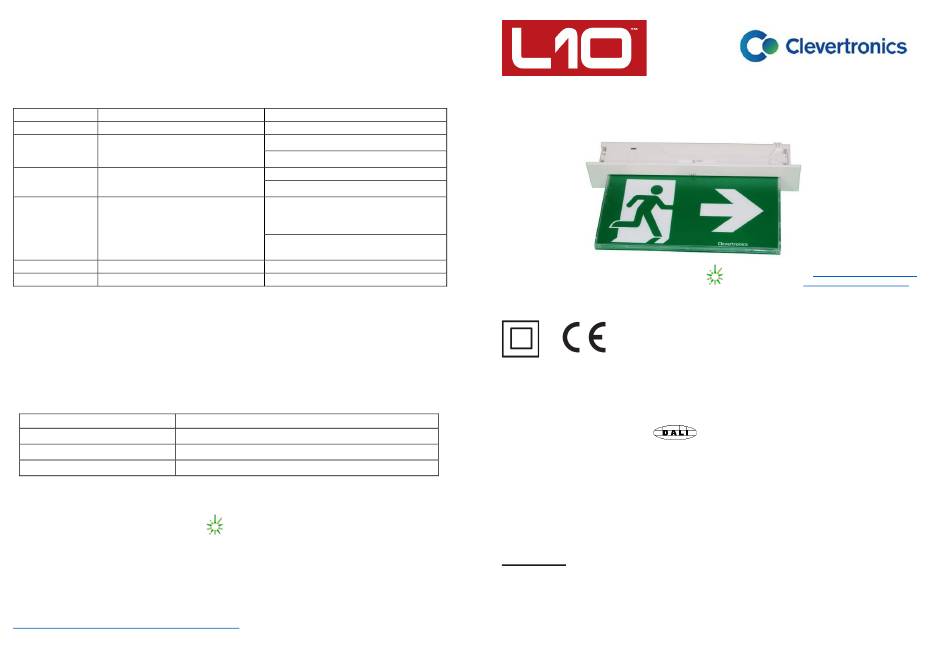

Clevertronics L10 LUBPRO Series Installation & Maintenance Instruction Leaflet

Zoneworks, HIVE and DATA Monitored Options
Fittings with part numbers -ZW, -HVG, -DATA are fitted with Zoneworks communications modules (nodes).
These fittings are monitored using either Powerline Carrier Technology that utilize the power cable to
provide data communication, RF transceiver modules operating in the ISM band or a dedicated data cable
to/from data routers installed on a dedicated data trunk connected to a central Server (can also be
connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate
testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a single push
of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides a
multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HVG, DATA Commissioned
ZW, DATA Un-commissioned
Un-commissioned
HVG
With network connectivity
Un-commissioned
HVG
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HVG Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Ultrablades with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection
and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
https://clevertronics.co.uk/product-warranty-statement/
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s

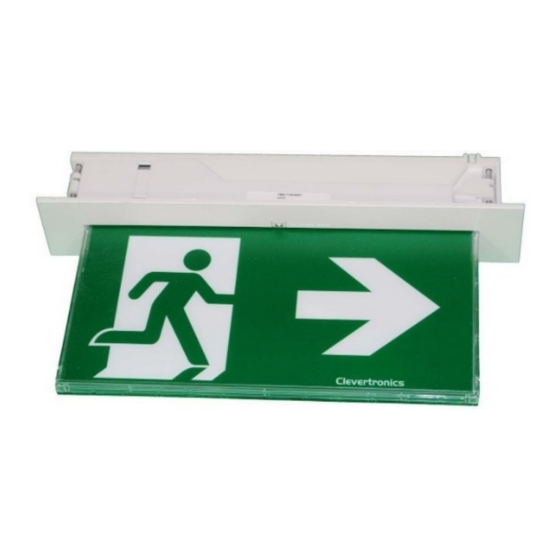

L10™ Ultrablade Pro Recessed LED Exit
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
IP20
Models: LUBPRO-ww-xx-yy
Testing:
Manual Test xx = Blank
Zoneworks xx = ZW
Z/W DATA xx = DATA
DALI Registered xx = DALI
Hive xx = HVG
Spare Parts:
1530050 BATT: L10 3.3V 2500mAh 70mm lead, no BRKT.
8002178 PCA: UBP LED strip PCB Assy
8011493 SUBASSY: WHT LED Strip
UKM01370030002 LUBPRO-CKIT-70, Ultrablade Pro, Control Only, L10, CTP, OWC, 70mA
UKM01870020001 LUBPRO-CKIT-HVG-70, Ultrablade Pro, Control Only, L10, HVG, OWC, 70mA
UKM01170010002 LUBPRO-CKIT-ZW-70, Ultrablade Pro, Control Only, L10, ZW, OWC, 70mA
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.
Australia (Head Office)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
UK OFFICE
362 Stockley Close
West Drayton UB7 9BL
Phone: 01895 430 255
Options:
Colour, Black yy = BLK
Rod Suspended (1.5m rods) ww = RS
(Rod Suspended LED strip)
1943037 V1.1 1 April 2021
