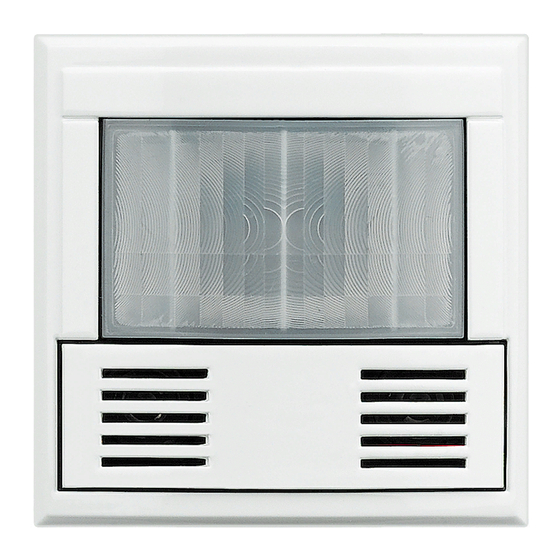

PIR+US flush-mounted SCS Green Switch
Description
This devices features a PIR and US (ultrasound) movement detector, and a brightness
sensor for automatic activation of various types of loads following the detection of a
movement, and a brightness level lower than the set level.
The enabling/disabling of the load can also be performed manually using the
appropriate front pushbutton and/or using an external BUS control device.
IT is possible to configure several operating modes; for the detailed descriptions see
page 4.
Standards, Certifications, Marks
Directive:
– Electromagnetic Compatibility Directive 2004/108/EC
Installation regulations:
– CEI 64-8
Product regulations:
– IEC 60669-2-1
– EN 50428
Environmental regulations:
– EU Directive 2002/96/EC: WEEE (Waste Electrical and Electronic Equipment)
– EU Directive 2002/95/EC: RoHS (Restriction of Hazardous Substances)
Dimensional data
Size:
A
A
45
Technical data
Voltage:
Current draw:
Connection between sensor and actuator:
Sensor type:
Flush mounted box depth:
Weight:
Impact resistance:
Penetration of solids and liquids:
Time delay:
Brightness:
Operating temperature:
Storage temperature:
2 flush mounted modules
C
B
B
C
45
51
27 V=
17 mA
SCS BUS connector
movement detector (PIR+US) with 180°
detection angle and brightness sensor.
40 mm
60 g
IK04
IP20
from 5 sec to 59 min. 59 sec
from 20 lux to 1275 lux
from - 5 °C to + 45 °C
from - 20 °C to + 70 °C
MQ00473-f-EN
574048
574098 AM5658

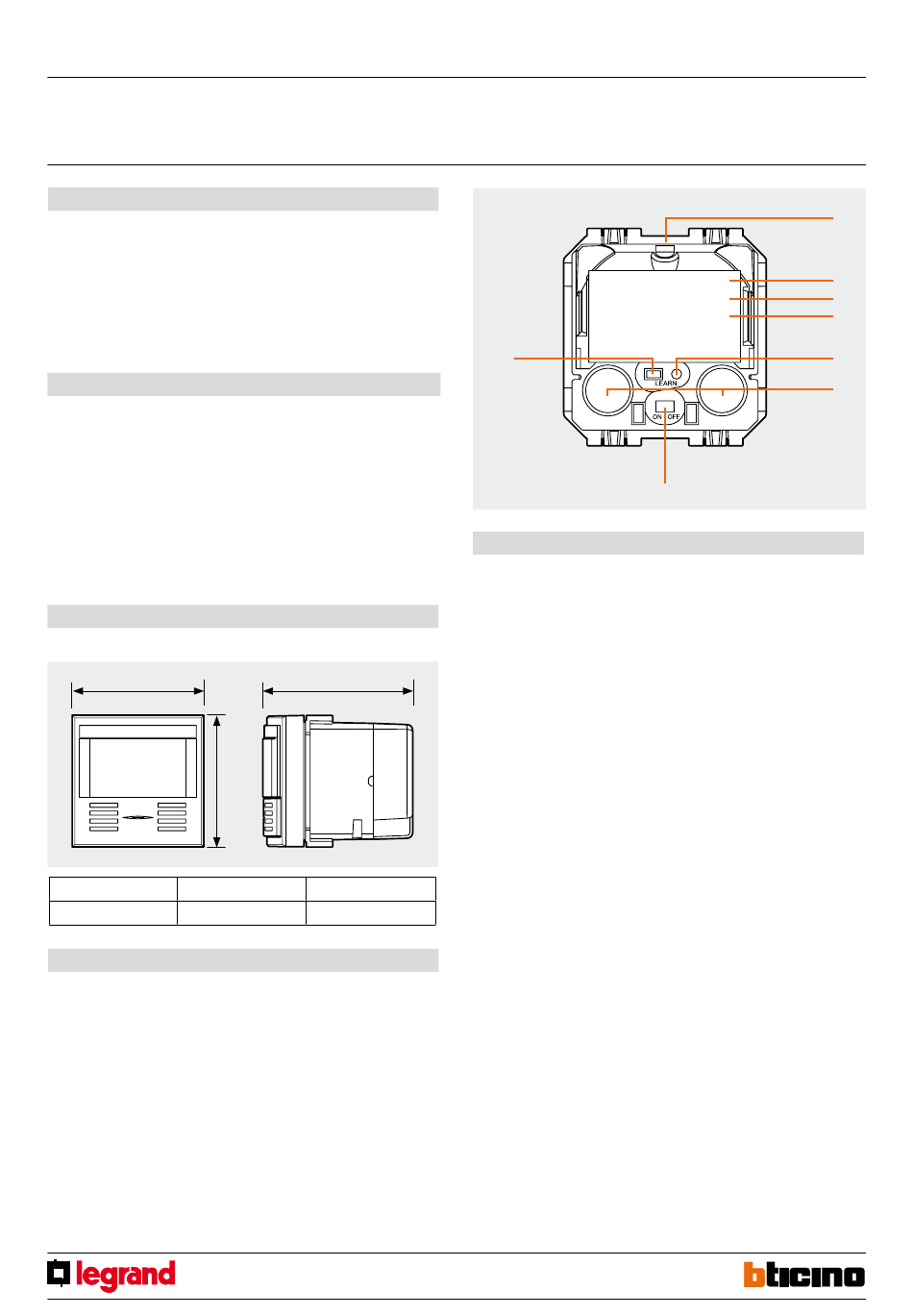

Front view
5
Legend
PIR sensor
1.
LEARN LED
2.
US sensor
3.
ON-OFF button
4.
LEARN button
5.
Movement detector sensor (under the lens)
6.
Infrared transmitter (under the lens)
7.
Brightness sensor
8.
09/06/2014
067226 HD/HC/HS4658
L/N/NT4658N
4
8
7
6
1
2
3
1
