Summary of Contents for Storm Shell 44

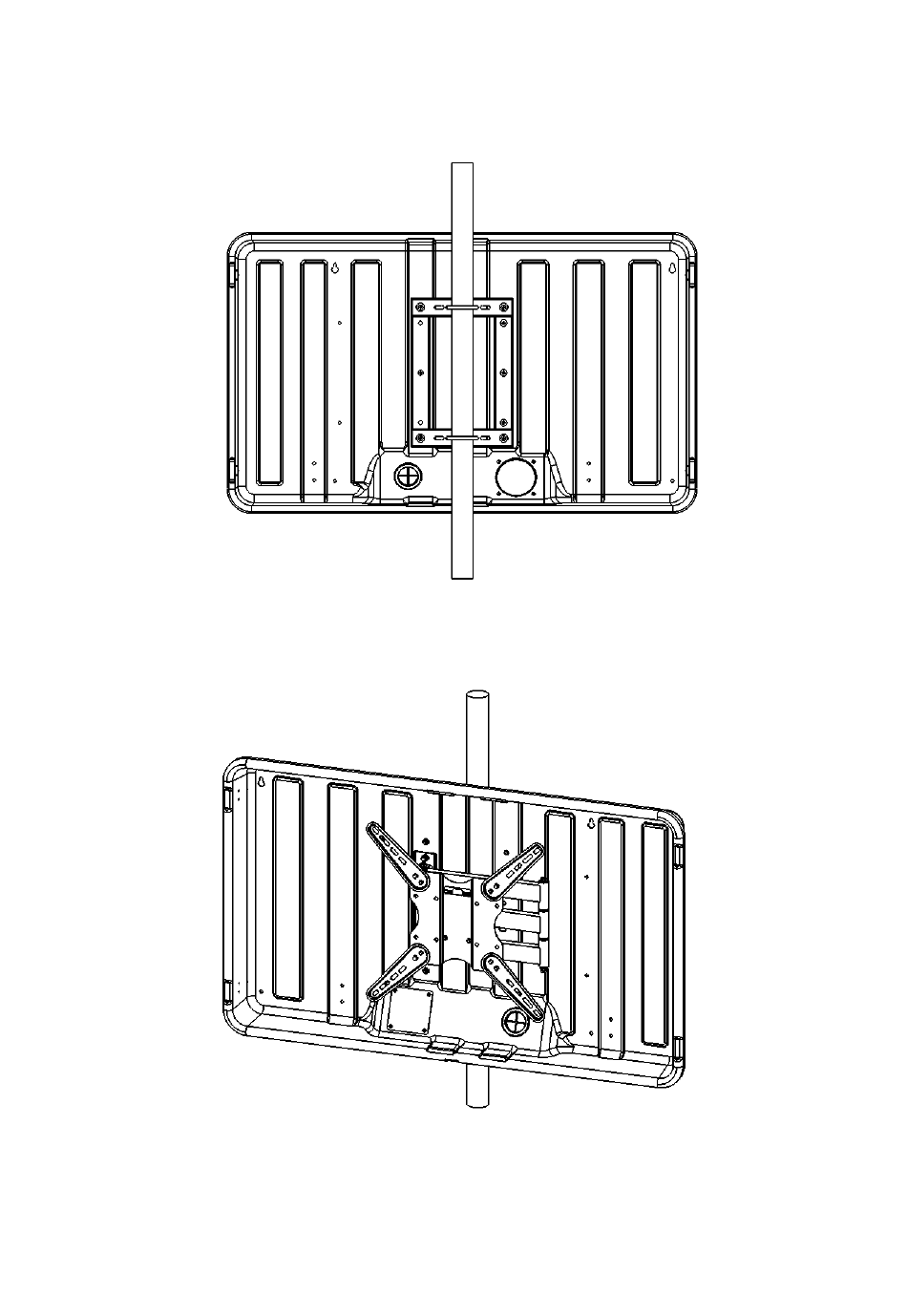

- Page 1 STORM SHELL Installation Instructions for 44" Storm Shell Pole Mount...
- Page 2 Purpose of the Pole Mount The 44 Storm Shell Pole Mount is designed to be used with the 44 Storm Shell TV Hard Cover. This instruction manual is a supplement to the Assembly and Installation Instructions for 44” Storm Shell TV Hard Cover.
- Page 3 Caution Prior to installation of this product, the installation instructions should be read and completely understood. The installation instructions must be read to prevent personal injury and property damage. Keep these installation instructions in an easily accessible location for future reference.
-
Page 4: Tools Required
Tools Required Phillips head screw driver or electric drill 13mm Socket and Wrench Bubble Level Electric drill, ¼” drill bit for mounting holes 44 Storm Shell Pole Mount Hardware: ITEM NAME QUANTITY PICTURE 1.5” U-Bolt 2.0” U-Bolt 3.0”... - Page 5 Position the Pole Mount Plate on the back of the Storm Shell. Make sure the flat side of Mount Plate is lying flat against Storm Shell Hard Cover Back (Figure 4a and 4b). Line up pre-drilled TV Mounting Bracket holes on Storm Shell Hard Cover with holes on Pole Mount Plate.
- Page 6 4b). Use Bubble Level to ensure the Pole Mount Bracket is level. (if (3) bolts were assembled prior to marking drill locations, dis-assemble (3) M8 bolts) Next, remove Pole Mount Bracket and use ¼” drill bit in Electric Drill to drill through body of Storm Shell TV Hard Cover (Figure 4c).
- Page 8 Figure 5c (assembled) 4. Position back part of the Storm Shell TV Hard Cover on the assembled vertical Pole Mount Plate. Assemble (5) M6 x 16mm bolts (L5) through the back side of the Pole Mount Plate through corresponding drilled holes on the Storm Shell TV Hard Cover Body from Step 2. The hole locations can be seen in Figure 6b.
- Page 9 Figure 6b 5. Connect Storm Shell TV Mounting Bracket to the Pole Mount Plate through the TV Hard Cover Body (Figure 7a). Fasten using (3) M8 x 25mm bolts (L6) starting from the back of the Pole Mounting Plate through the corresponding holes on the TV Hard Cover, and through the holes (3) on TV Mounting Bracket vertical plate.
- Page 10 PLEASE NOTE: The following parts included in the Storm Shell TV Mounting Hardware are included with the Storm Shell TV Hard Cover. When Installing the Storm Shell Pole Mount, some of the mounting components included with the Storm Shell TV Hard Cover are not used. These are the components normally used to mount the TV bracket onto a wall.
- Page 11 Storm Shell and TV Mounting Bracket Parts 1. Storm Shell Front 1 pc 2. Storm Shell Back 1 pc 3. TV bracket (preassembled in Storm Shell 4. Vertical VESA Mounting Plate 2 pc Back ) 1 set Storm Shell and TV Mounting Hardware...
- Page 12 M8X25 Screw D6 Washer NOT USED POLE MOUNT ASSEMBLY ST3.5X20 Self Buckle Tapping Screw Latch ST6X30 Self Extension Tapping Screw NOT USED IN POLE MOUNT ASSEMBLY M6X15 Screw M6 Nut D6 Washer...
