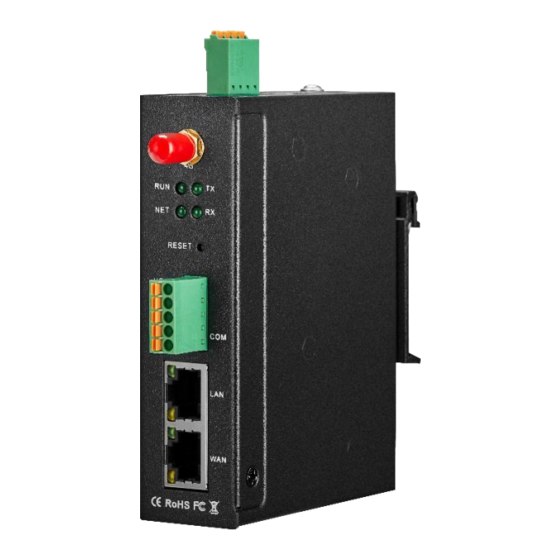

King Pigeon BL102 User Manual

Plc gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PLC Gateway
BL102
BL102
User Manual
Version: V1.0
Date: 2021-7-8
King Pigeon Communication Co.,Ltd
Website:
www.iot-solution.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL102 and is the answer not in the manual?

Questions and answers

Related Manuals for King Pigeon BL102

Summary of Contents for King Pigeon BL102

  • Page 1 PLC Gateway BL102 BL102 User Manual Version: V1.0 Date: 2021-7-8 King Pigeon Communication Co.,Ltd Website: www.iot-solution.com...
  • Page 2 Copyright This user manual is owned by King Pigeon Communication Co., Ltd. No one is authorized to copy, distribute or forward any part of this document without written approval of King Pigeon. Any violation will be subject to legal liability.

  • Page 3: Table Of Contents

    PLC/Modbus to MQTT/OPC UA Gateway BL102 General Description......................... 6 Application Illustration........................7 Packing List............................7 Features............................10 Technical Parameters........................11 Model Selection..........................13 2 Hardware Introduction.......................... 14 Outline Dimension.......................... 14 Power Source Interface.........................15 SIM & SD Card Slots........................15 Debugging & Upgrading Interface....................15 Gateway Grounding........................
  • Page 4 4.2.9.5 AWS Cloud........................50 4.2.9.6 King Pigeon Cloud via MQTT..................52 4.2.9.7 King Pigeon Cloud via Modbus..................55 5 Gateway BL102 Application Example....................57 FX3U & S7-200SMART Connect to Gateway BL102...............57 Configuration Software........................58 5.2.1 Add Device and Datapoint....................58 5.2.1.1 COM Port Configuration....................58 King Pigeon Communication Co., Ltd.
  • Page 5 5.2.2.10 View Data in AWS Cloud..................... 77 5.2.2.11 King Pigeon Cloud via Modbus Configuration............79 5.2.2.12 View Data in King Pigeon Cloud via Modbus............79 5.2.2.13 King Pigeon Cloud via MQTT Configuration............82 5.2.2.14 View Data in King Pigeon Cloud via MQTT..............82 5.2.2.15 King Pigeon Cloud MQTT Data Format..............

  • Page 6: General Description

    PLC/Modbus to MQTT/OPC UA Gateway BL102 1 Gateway Introduction General Description BL102 is a Gateway that collects Siemens, Mitsubishi, Omron, Delta,Allen-Bradley and Schneider PLC data and converts to Modbus TCP, OPC UA, MQTT, HUAWEI Cloud, AWS, Alibaba Cloud, King Pigeon Cloud protocols It’s developed on embedded Linux operation system with high stability and various interfaces,...

  • Page 7: Application Illustration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Application Illustration Packing List Before using Gateway BL102, please make sure below parts are included in the package: (Below pictures are for reference only. If any discrepancy, please follow real products) 1x Gateway BL102 ...
  • Page 8 PLC/Modbus to MQTT/OPC UA Gateway BL102 1x 4PIN 3.5mm Wiring Terminal for power input  1x 5PIN 3.5mm Wiring Terminal for RS485 or RS232 power output  1 x 4G SMA Cellular Network Antenna  2 x Wall-Mount Clip Kit ...
  • Page 9 1 x SIM Card Picking Pin  1 x Product Qualification Certificate  1 x Warranty Card  Note: if any items are missing, please contact King Pigeon sales representative. King Pigeon Communication Co., Ltd. Page 9 of 88 Pages www.iot-solution.com...

  • Page 10: Features

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Features Downlink supports: Siemens, Mitsubishi, OMRON, Delta, Allen-Bradley, Schneider and other  PLCs Uplink supports: Modbus TCP, MQTT, OPC UA, HUAWEI Cloud, Alibaba Cloud, AWS, ThingsBoard Cloud, King Pigeon Cloud, etc. DC 9-36V wide power voltage input with wiring terminal. There’re 2 channels of power input ...

  • Page 11: Technical Parameters

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Technical Parameters Item Parameter Description Processor ARM9, clock speed 300Mhz System Storage 128MB( scalable to 1G) Flash Memory 64MB Input Voltage DC 9～36V Power Power Normal: 85mA@12V, max 117mA@12V Source Consumption Wiring Support Inverse Connection Protection...
  • Page 12 PLC/Modbus to MQTT/OPC UA Gateway BL102 WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD-LTE:B1,B3,B8 TDD-LTE:B38,B39,B40,B41 WCDMA:B2,B4,B5 L-A version FDD-LTE:B2,B4,B12 GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 L-AU version FDD-LTE:B1,B3,B4,B5,B7,B8,B28 TDD-LTE:B40 WCDMA:B2,B4,B5 L-AF version FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71 GSM:900,1800 CAT-1 version FDD-LTE:B1,B3,B5,B8 TDD-LTE:B34,B38,B39,B40,B41 Steady light if device is powered on Flickering if device is running...

  • Page 13: Model Selection

    PLC/Modbus to MQTT/OPC UA Gateway BL102 IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-3 (RS) Level 4 IEC 61000-4-4 (EFT) Level 4 IEC 61000-4-5 (Surge)Level 3 IEC 61000-4-6 (CS)Level 4 IEC 61000-4-8 (M/S) Level 4 Other CE, FCC Working -40～80℃, 5～95% RH...

  • Page 14: Hardware Introduction

    PLC/Modbus to MQTT/OPC UA Gateway BL102 2 Hardware Introduction Outline Dimension Unit: mm King Pigeon Communication Co., Ltd. Page 14 of 88 Pages www.iot-solution.com...

  • Page 15: Power Source Interface

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Power Source Interface 2 optional channels of power input support DC 9~36V voltage with inverse connection protection. SIM & SD Card Slots Make sure device is powered off before inserting or removing SIM card. Insert SIM card Picking PIN into the hole with tiny force to eject out the card tray.

  • Page 16: Antenna Interface

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4G Antenna Interface Connect 4G Antenna LED Indicator LED Indicator Introduction Item Name Status Description Flickering Device running normally Device Running Indicator Device faulty Flickering Ethernet Communication Ethernet or 4G Communication 4G communication Indicator...

  • Page 17: Com Port & Power Output Interface

    PLC/Modbus to MQTT/OPC UA Gateway BL102 indicator is off. Gateway BL102 will return to default factory setting. COM Port & Power Output Interface RS485 or RS232 and Power Output Item Description VOUT+ Positive Pole of Power Output VOUT- Negative Pole of Power Output...

  • Page 18: Gateway Mounting

    Connected Network Link Yellow Flickering It’s transferring data Indicator Disconnected 3 Gateway Mounting Gateway BL102 can be placed on desk, mounted on the wall and DIN-Rail. Wall-Mounting Wall Mounting King Pigeon Communication Co., Ltd. Page 18 of 88 Pages www.iot-solution.com...

  • Page 19: Din Rail Mounting

    4 Configuration Software Introduction Login to Configuration Software Connect BL102 to router or switch through WAN port with standard direct network cable or cross network cable. Make sure BL101 and PC are in the same local area network. If it’s necessary to connect the gateway to PC directly, use standard cross network cable to connect through BL101 LAN port.

  • Page 20: Open Configuration Software

    Click Device Search to get all devices which are in the same local area network with PC. If no device is found, please follow the procedure on the right notice box to check the root cause. Below is the example of connecting Gateway BL102 with switch through WAN. A device with IP 192.168.1.164 is searched out.

  • Page 21: Connecting Gateway

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.1.3 Connecting Gateway Double click the device to be configured (For example, double click device with IP 192.168.1.164) . Reading success message will be shown in prompting box. Click confirm to enter configuration page.

  • Page 22: Configuration Software Introduction

    Configuration Software Introduction 4.2.1 System System Function Item Description Device Search Search for all BL102 gateways in the same local area network New Configuration Open a new default configuration file Import Configuration File Import gateway configuration file Export Configuration File...
  • Page 23 SIM Registration Red indicates SIM card is registered. Status Gray indicates SIM card is not registered， King Pigeon Cloud Red indicates King Pigeon cloud is connected via Modbus via Modbus Online Gray indicates King Pigeon cloud is unconnected via Status Modbus...

  • Page 24: Com Port Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.2 COM Port Configuration 4.2.2.1 COM Port Attribute Configuration Double click COM1. Serial Port Attributes box will pop up for configuration Serial Port Attributes Item Description Default Select mode: Collect/Transparent Mode Selection Collect Transmission/Modbus RTU to...

  • Page 25: Add Com Port Connected Device

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.2.2 Add COM Port Connected Device Right click COM1 and click Add to add PLC. Device configuration box will pop up. For the added device, double click it to show device configuration information. Right click to delete device。...

  • Page 26: Add Com Port Device Datapoint

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Device Information Item Description Device Name Name of PLC to be connected Configure it according to different PLC model. Device Property Blank means no configuration items Confirm device configuration Cancel Cancel device configuration Note: For different PLCs, the protocols are different and the configuration items are different. For...
  • Page 27 PLC/Modbus to MQTT/OPC UA Gateway BL102 it. Double click the datapoint to edit it. To add more datapoints, right click the box and perform the same procedures. Datapoints Configuration Item Description Variable Name Name of Added Datapoint Variable Unit Datapoint unit, fill it as required, can be blank...

  • Page 28: Lan Port Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 integer, 32-bit unsigned integer, 32-bit signed integer, 32-bit single precision floating point Add Number Datapoint qty Read-Write Type Select “read only”, “read and write” Only set for numeric data. Data can be magnified or minified...

  • Page 29: Add Device To Lan Port

    Right click LAN and clik Add to enter device configuration page. PLC data can be collected through Gateway BL102 LAN Port or through switch which is connected with LAN. Note: Total 50 PLCs can be connected through LAN and WAN, different models from different PLC makers can be connected simultaneously.
  • Page 30 Device IP Set IP Address of LAN port PLC. PLC IP Address must be the same as Gateway BL102 LAN IP Address. If it’s not the same, need to change PLC IP address or LAN port IP address. To change LAN port configuration, it will not take effective until...

  • Page 31: Add Lan Port Device Datapoint

    PLC/Modbus to MQTT/OPC UA Gateway BL102 configure it if Modbus is selected as device brand 16-bit Data Type Select “AB” or “BA”, only configure it if Modbus is selected as device brand. 32-bit Data Type Select“ABCD”, “DCBA”, “BADC” or “CDAB”, only configure it if Modbus is selected as device brand.

  • Page 32: Add Device To Wan Port

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Gray indicates IP is specified IP Address Current IP Address of WAN Port Subnet Mask Current WAN Subnet Mask Gateway Current WAN Gateway Address MAC Address WAN port MAC address Current WAN port DNS server...

  • Page 33: Add Wan Port Device Datapoint

    PLC/Modbus to MQTT/OPC UA Gateway BL102 WAN Port Device Configuration Item Description Device Name Name of WAN Port PLC Device IP IP Address of WAN Port PLC Device Port WAN port PLC Port Device Brand Select from Siemens, Modbus Device Model...

  • Page 34: Network Introduction

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.5 4G Network Introduction Double click 4G to enter APN setting box. Note: It’s not necessary to set APN for China mainland 4G network. If no 4G module in the device, it’s not needed to set it either...

  • Page 35: Alarm Point Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.6.1 Alarm Point Configuration Alarm and Events Configuration Item Description Name Name of Alarm Point MQTT Flag MQTT flag of alarm point, can be randomly set Select alarm point and click Add. Datapoint box will pop up. Click Association Point the point to be set for alarm and click OK to confirm.

  • Page 36: Alarm Event Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Select from digital alarm mode: Normally Open or Normally Close Digital Alarm Type Within alarm acknowledge time, if data will recover to normal Alarm ACK Time value, no alarm will be triggered. Otherwise it will generate alarm...

  • Page 37: Task Plan Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Event Configuration Item Introduction Write Point Name is generated based on selected datapoint. Write Point Name Click Add, select datapoint and click OK to confirm. Double click datapoint to view its attributes Write Value Write datapoint value.

  • Page 38: Data Service

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Item Description Task Name Name of Task Plan Local Time Set time to perform the planned task (local time) Week Set week day to perform the planned task Write Point Name will be generated based on selected Write Point Name datapoint.Click Add , select the datapoint and click OK to...

  • Page 39: Modbus Rtu To Modbus Tcp

    COM1 Mode Selection Select Gateway as “TCP Server” or “TCP Client” Only set it when BL102 Gateway is used as TCP server Select Network Port Select WAN or LAN If BL102 is used as server, it can’t be set but...

  • Page 40: Modbus Tcp Server

    Confirm Modbus RTU to Modbus TCP configuration Cancel Cancel Modbus RTU to Modbus TCP configuration 4.2.8.3 Modbus TCP Server BL102 Gateway supports Modbus TCP protocol and provides data as Modbus TCP server. Modbus King Pigeon Communication Co., Ltd. Page 40 of 88 Pages www.iot-solution.com...
  • Page 41 PLC/Modbus to MQTT/OPC UA Gateway BL102 TCP server is enabled permanently. Only configure Ethernet port and monitoring port. WAN /LAN IP address can be viewed by clicking WAN/LAN Modbus TCP Server Configuration Item Description Ethernet Port Select “WAN” or “LAN”...

  • Page 42: Opc Ua

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.8.4 OPC UA Gateway BL102 supports OPC UA and provides data as OPC UA server. WAN/LAN IP Address can be viewed by clicking WAN LAN OPC UA Configuration Item Description Green indicates OPC UA is enabled Enable Gray indicates OPC UA is disabled.

  • Page 43: Cloud Platform

    Take below picture for example, only datapoint Y0 of COM1 Device FX3U is published and other datapoints are not published. MQTT Client One , MQTT Client Two data format is the same as King Pigeon cloud MQTT data format. Refer to：King Pigeon Cloud MQTT Data Format...
  • Page 44 PLC/Modbus to MQTT/OPC UA Gateway BL102 MQTT Client One Configuration Item Description Green indicates MQTT Client One is enabled Enable Gray indicates MQTT Client One is not enabled. Server IP/ Domain Name Input Server IP/Domain name Server Port Input server port(required), default is 1883 Client Identifier of MQTT Connecting message.

  • Page 45: Mqtt Client Two

    MQTT Client Two subscribe topic will not be working. MQTT Client Two is used for view data but not control data from cloud. MQTT Client One , MQTT Client Two data format is the same as King Pigeon cloud MQTT data format. Refer to：King Pigeon Cloud MQTT Data Format...
  • Page 46 PLC/Modbus to MQTT/OPC UA Gateway BL102 Gray indicates Alibaba Cloud is not enabled. Default is disabled Default is connecting with Secret Key. Click it to move the Secret Key/X.509 button on the right for connecting with Certificate. Set the same ProductKey as the one in Ali Cloud.

  • Page 47: Huawei Cloud

    PLC/Modbus to MQTT/OPC UA Gateway BL102 Note: Currently Alibaba cloud device shadow is not supported. Data is written through online debugging. Multiple data sending is not supported. 4.2.9.4 HUAWEI Cloud HUAWEI Cloud can be connected with or without Certificate. It supports multiple service IDs. Click Add to set Service ID.
  • Page 48 PLC/Modbus to MQTT/OPC UA Gateway BL102 command. HUAWEI Cloud Configuration Item Description Green indicates HUAWEI Cloud is enabled. Enable Gray indicates HUAWEI Cloud is disabled. Default is disabled Select connecting to HUAWEI Cloud via MQTT to enter console. Click Overview to get server IP address of device connection...
  • Page 49 PLC/Modbus to MQTT/OPC UA Gateway BL102 Set the same Device Secret Key as the one in HUAWEI Cloud Device Secret when creating device in HUAWEI Cloud. If it’s forgot, it can be reset in device authentication. (Not necessary if connecting with certificate is selected) Root Certificate Select file to upload (Need to select certificate X.509 first)

  • Page 50: Aws Cloud

    PLC/Modbus to MQTT/OPC UA Gateway BL102 4.2.9.5 AWS Cloud 1. Datapoint box is blank in default which means all datapoints will be published. If multiple topics are published, only one topic datapoint box can be blank. For other topics, datapoints for publishing must be selected.
  • Page 51 PLC/Modbus to MQTT/OPC UA Gateway BL102 AWS Configuration Item Description Green indicates AWS is enabled. Enable Gray indicates AWS is disabled. Default is disabled Input AWS Connection Endpoint (Enter Console, click Things and then click Interact to get it) Server IP/...

  • Page 52: King Pigeon Cloud Via Mqtt

    Confirm AWS setting Cancel Cancel AWS setting 4.2.9.6 King Pigeon Cloud via MQTT King Pigeon Cloud MQTT data format refer to: King Pigeon Cloud MQTT Data Format Configure it as below picture : King Pigeon Communication Co., Ltd. Page 52 of 88 Pages...
  • Page 53 Gray indicates King Pigeon cloud via MQTT is disabled Server IP/Domain Name mqtt.dtuip.com Server Port 1883(Required) Input device serial number issued by King Pigeon Client ID (Contact King Pigeon sales to get the serial number if required to connect to King Pigeon cloud) User Name MQTT Password MQTTPW...
  • Page 54 PLC/Modbus to MQTT/OPC UA Gateway BL102 Configure datapoint with below procedure. First add datatpoint and then configure datapoint mark. It must be the same as MQTT flag in configuration software. For example, collect datapoint Q1 of PLC S7-200SMART, in configuration software MQTT flag is Q1, then set Q1 as read-write mark in King Pigeon cloud.

  • Page 55: King Pigeon Cloud Via Modbus

    Both King Pigeon Cloud and custom Modbus cloud can be connected via Modbus RTU protocol. BL102 supports function code 01, 05 of Boolean data and function codes 03, 06 of numerical data. 16-bit byte sequence is AB and 32-bit byte sequence is ABCD.
  • Page 56 Modbus ID, function code, address, data format, byte sequence and data collection cycle. Modbus address in King Pigeon cloud and configuration software is deviated by 1. For example, datapoint Q0 of PLC S7-200SMART in configuration software is 8, then put 9 in cloud. Sensor names in cloud can be different from those in configuration software King Pigeon Communication Co., Ltd.

  • Page 57: Gateway Bl102 Application Example

    Below is the example of BL102 Gateway COM port collecting data of Mitsubish PLC FX3U and LAN port collecting data of Siemens PLC S7-200SMART. Other PLC configuration procedures are the same. Just set Device Brand and Device Model of the PLC to collect data. BL102 Gateway WAN port connects to industrial Router R40 for internet access.

  • Page 58: Configuration Software

    Gateway BL102 COM Port with RS232 to RS422 converting cable. Connect Industrial Router R40 to BL102 Gateway WAN port. Collected PLC data is sent to cloud through 4G industrial router R40. Note: Both WAN and LAN ports can collect PLC data. This example is introduction to LAN port data collecting.

  • Page 59: Add Com Port Device-Mitsubish Plc Fx3U

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.1.2 Add COM Port Device-Mitsubish PLC FX3U (1) Click COM1, right click it and click Add to enter device configuration box (2) Set Device Name at random like FX3U (3) Click OK to confirm adding FX3U PLC.

  • Page 60: Lan Port Configuration

    (8) Read-write Type：Select from Read only and Read & Write according to PLC register. (9) Modbus Mapping Address: Input the address where the collected datapoint is saved in BL102. It can be any address from 0-2000 but can’t be repeated. For example, Y0 data is saved in register address 0 of BL102 (10) MQTT Flag: can be any identification mark, but can’t be repeated.
  • Page 61 PLC/Modbus to MQTT/OPC UA Gateway BL102 (1) Double click LAN to enter configuration box (2) DHCP: enable auto IP distribution. Default is disabled. (3) Routing: Enable network routing function. Default is disabled. For example, PLC S7-200SMART does not need network. Thus it’s necessary to enable it.

  • Page 62: Add Lan Port Device-Siemens Plc S7-200Smart

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.1.5 Add LAN Port Device-Siemens PLC S7-200SMART (1) Click LAN and right click mouse and click Add to enter device configuration box (2) Device Name: set device name, for example, set S7-200SMART as device name.

  • Page 63: Upload Plc Fx3U & S7-200Smart Data To Cloud

    (9) Ratio: set the ratio to be multiplied or minified for uploading to cloud (10) Modbus Mapping Address: Set address where datapoint will be saved in BL102. Modbus mapping address can be any from 0 to 2000 and it can’t be repeated For example, set 8 as VW0 mapping address (11) MQTT Flag: It can be any identification mark and can’t be repeated.

  • Page 64: Modbus Tcp Server Configuration

    Gateway provides data as Modbus TCP server. Modbus TCP host computer will collect data from BL102, like SCADA, MES host PCs. Function codes supported for collecting gateway data: 01 & 05 for boolean data; 03 & 06 for numerical data. Below example is simulating KEPServerEX 6 as host computer to collect BL102 data.
  • Page 65 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 65 of 88 Pages www.iot-solution.com...
  • Page 66 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 66 of 88 Pages www.iot-solution.com...

  • Page 67: Opc Ua Configuration

    (10) Click Save Data. Gateway will restart automatically. After device restarting, OPC UA is configured successfully. 5.2.2.4 View Data in KEPServerEX 6 Gateway BL102 provides data as OPC UA server. View data in KEPServerEX 6 as below: King Pigeon Communication Co., Ltd. Page 67 of 88 Pages...
  • Page 68 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 68 of 88 Pages www.iot-solution.com...

  • Page 69: Alibaba Cloud Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.2.5 Alibaba Cloud Configuration (1) Double click Ali IOT Cloud to enter configuration box (2) Click Enable to enable(Green) Alibaba Cloud. Default is disabled (Gray ) (3) Secret Key/X.509: Click it to move the button on the right for connecting with certificate. Default is...

  • Page 70: View Data In Alibaba Cloud

    PLC/Modbus to MQTT/OPC UA Gateway BL102 (13) Click OK to confirm the setting (14) Click Save Data. Gateway will restart automatically and Alibaba cloud is enabled successfully. Open configuration software and login the device. Alibaba cloud connection status can be viewed from basic information.
  • Page 71 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 71 of 88 Pages www.iot-solution.com...

  • Page 72: Huawei Cloud Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.2.7 HUAWEI Cloud Configuration (1) Double click HUAWEI IOT Cloud to enter configuration box (2) Click Enable to enable(green) HUAWEI Cloud. Default is disabled(gray) (3) Server IP/Domain Name: input HUAWEI Cloud connecting address(Login to HUAWEI Cloud, enter console, click overview to get server IP address) (4) Server Port: Default is 1883 for connecting with secret key.
  • Page 73 PLC/Modbus to MQTT/OPC UA Gateway BL102 (8) Root Certificate: Upload root certificate if connecting with certificate is selected (9) Client Certificate: Upload client certificate if connecting with certificate is selected (10) Client Secret Key: Upload client secret key if connecting with certificate is selected.

  • Page 74: View Data In Huawei Cloud

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.2.8 View Data in HUAWEI Cloud King Pigeon Communication Co., Ltd. Page 74 of 88 Pages www.iot-solution.com...
  • Page 75 PLC/Modbus to MQTT/OPC UA Gateway BL102 Click View All Attributes or Device Shadows to view all data as below picture: King Pigeon Communication Co., Ltd. Page 75 of 88 Pages www.iot-solution.com...

  • Page 76: Aws Cloud Configuration

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.2.9 AWS Cloud Configuration AWS supports publishing multiple topics. Configuration is the same as that of configuring multiple service ID of HUAWEI Cloud. Below example is configuring single topic with all datapoints to be published.

  • Page 77: View Data In Aws Cloud

    PLC/Modbus to MQTT/OPC UA Gateway BL102 (9) Client Secret Key: Select client secret key and upload it. (10) Publish Topic: Input the topic of rule created in AWS. It’s the topic of MQTT message publishing. Click Add to set more publishing topics. Click Delete to delete selected topic. For example, login to AWS, click Act and click Rules to view the topic.
  • Page 78 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 78 of 88 Pages www.iot-solution.com...

  • Page 79: King Pigeon Cloud Via Modbus Configuration

    (10) Heartbeat Interval: Set cycle time of sending Heartbeat message. Default is 60s (11) Click OK to confirm the configuration. (12) Click Save Data. Gateway will restart and King Pigeon Cloud via Modbus is enabled successfully. Open configuration software and login device. King Pigeon cloud via Modbus connection status can be viewed from basic information.
  • Page 80 PLC/Modbus to MQTT/OPC UA Gateway BL102 Sensor names in cloud can be different from those in configuration software Data collected is like below picture King Pigeon Communication Co., Ltd. Page 80 of 88 Pages www.iot-solution.com...
  • Page 81 PLC/Modbus to MQTT/OPC UA Gateway BL102 King Pigeon Communication Co., Ltd. Page 81 of 88 Pages www.iot-solution.com...

  • Page 82: King Pigeon Cloud Via Mqtt Configuration

    (13) Click OK to confirm King Pigeon Cloud via MQTT configuration (14) Click Save Data. Gateway will restart and King Pigeon Cloud via MQTT is configured successfully. Open configuration software and login the device. King Pigeon Cloud connection status via MQTT can be viewed from basic information.
  • Page 83 PLC/Modbus to MQTT/OPC UA Gateway BL102 Data collected is as below picture: King Pigeon Communication Co., Ltd. Page 83 of 88 Pages www.iot-solution.com...

  • Page 84: King Pigeon Cloud Mqtt Data Format

    PLC/Modbus to MQTT/OPC UA Gateway BL102 5.2.2.15 King Pigeon Cloud MQTT Data Format MQTT Client One , MQTT Client Two and King Pigeon Cloud MQTT data formats are the same. See below: (1) Valid Load Data Format in device Publishing messages King Pigeon Communication Co., Ltd.
  • Page 85 PLC/Modbus to MQTT/OPC UA Gateway BL102 Publish Topic: Serial Number (Configured publish topic) "sensorDatas": [ //Boolean value "flag": "REG001", //Read-write identification mark "switcher": 0 //Data Type and Value //Numeric Type "flag": "REG005", //Read-Write identification mark "value": 3 //Data Type and Value "state":"alarm", //Alarm mark(Set Alarm Event in configuration software.
  • Page 86 (2) Valid Load Data Format in device Subscribing messages Subscribe Topic: Serial Number/+ (Subscribe topic set in configuration software) (King Pigeon cloud message publishing topic is “serial number/sensor ID”, thus wildcard “/+” must be added for device Subscribing Topic so that cloud can publishing data for controlling) "sensorDatas":...

  • Page 87: Firmware Upgrading

    This gateway supports upgrading firmware via configuration software. Click About in configuration software, click Firmware Upgrade, select update folder and click OK to confirm. Once upgrading is completed, a prompt box will pop up. Click it to confirm. Contact King Pigeon technical support to get update folder.

  • Page 88: Warranty Terms

    PLC/Modbus to MQTT/OPC UA Gateway BL102 7 Warranty Terms 1) Warranty period is 1 year from the date of purchase. If any quality issues within warranty period, it will be repaired for free. 2) Device fault caused by wrong operation is beyond warranty.
