- Page 1 LoRa Gateway Wireless Data Acquisition S281 User Manual Ver 1.0 Date Issued: Aug 21st,2019 King Pigeon Hi-Tech. Co., Ltd. www.iot-solution.com...
- Page 2 LoRa Gateway 【Foreword】 Thank you for using the S281 LoRa wireless data acquisition module of Shenzhen King Pigeon Hi-Tech Co., Ltd. Read this product user manual to help you to know the function and usage of this product quickly. 【Copyright Notice】...
-
Page 3: Table Of Contents
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Table of Contents 1.Brief Introduction......................................4 1.1 Overview......................................4 1.2 Typical Application..................................... 5 1.3 Packing List ....................................... 6 1.4 Features......................................8 1.5 Gateway Technical Parameter................................9 2.Hardware illustration....................................10 2.1 ID........................................11 2.2 LED Indicator....................................12 2.3 Interface Definition..................................12 2.4 Installation......................................13 3.Configuration......................................14 3.1 Before Configuration.................................. -
Page 4: Brief Introduction

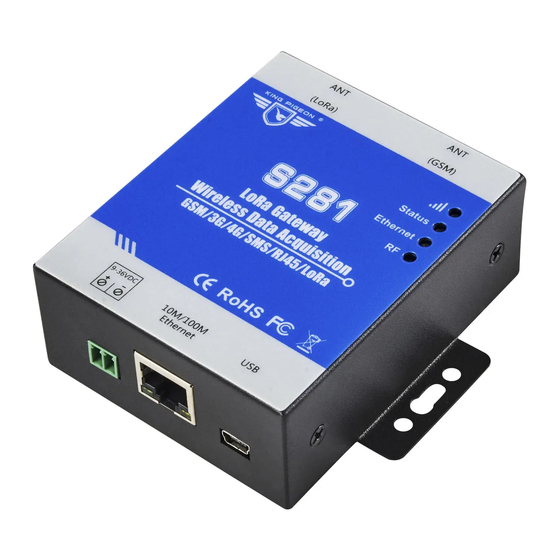

1.Brief Introduction Overview S281 is wireless data ,wireless temperature and humidity acquisition &alarm system. It is based on LoRa radio, mainly used for multi-point and long-distance distributed temperature and humidity acquisition and transparent transmission from equipment to cloud platform. LoRa modulation technology is adopted to realize on-site distributed multi-point IO equipment monitoring and temperature &humidity collection. -
Page 5: Typical Application
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 1.2 Typical Application Smart agricultural temperature and humidity data acquisition and monitoring. Smart breeding temperature and humidity data acquisition and monitoring. Smart factory temperature and humidity acquisition and monitoring. Other distributed monitoring points. ATM、POS、PLC、DAQ and other devices’... -
Page 6: Packing List
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 1.3 Packing List Before install and use S281,pls confirm the contents in box: 1） S281 gateway... - Page 7 GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 2） 3.5mm female jack 3） MINI USB cable 4） Adaptor（12VDC-2A，EU/US/UK/AU Plug optional） 5） LoRa Antenna（433MHz） 6） 2G/3G/4G SMA Cellular Antenna...
-
Page 8: Features
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Remark:If anything above missing,pls contact King Pigeon sales. Optional accessories： 35mm DIN X2 1.4 Features Embedded ARM® CortexTM-M4 32-bit RISC core real-time operating system, software watchdog and hardware watchdog to prevent false downtime. Wide working voltage design,gateway support 9~36VDC power supply, LoRa sensor support 3.3-24V power supply and with ... -
Page 9: Gateway Technical Parameter
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 1.5 Gateway Technical Parameter Item Parameter Description Working Voltage 9～36V DC Power Normal:130mA@12V,Max:150mA@12V Consumption Power Power Protection Anti wrong wiring,air ESD:15KV,surge:4KV Built-in Lithium 3.7V/900mAh,standby time 1-2hrs Battery 1 x mini USB Port Type 1 x RJ45,10/100Mbps Network Port Port Protection ESD:8KV, surge:4KV（10/1000us）... -
Page 10: Hardware Illustration
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway transparent Support transmission Modbus Protocol Support Modbus RTU/Modbus TCP Log in message Support customized log in message Heartbeat Support customized Heartbeat message message Memory Max can save 2000 history records and 500 alarms MTBF ≥100,000hrs EN 55022: 2006/A1: 2007 (CE &RE) Class B IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-3 (RS) Level 4 Certificates... -
Page 11: Led Indicator
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Bottom LED Indicator Name Color Status Description 2G:No signal（off 0.8s，on 2.2 LED Indicator 0.2s） Fast flashing 3G/4G: No signal（off 2S，on 0.2s） 2G: Normal （off 2S， on 0.2s） ； Slow 3G/4G:Normal（off 0.2S，on flashing 2s）； Device issue Constantly External power supply is Status bright normal... -
Page 12: Interface Definition
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 2.3 Interface Definition 2.3.1 Power Input Power Input Item Symbol Description Power input positive Power input negative RJ45 mini USB Power input 2.3.2 Ethernet Interface Definition Network Port Description Item 568B Definition Description Orange Send white positive Orange Send negative... -
Page 13: Installation
LoRa Gateway 2.3.4 SIM card S281support standard 1.8V/3V SIM card 2.3.5 Antenna Interface S281 has 1* LoRa antenna interface and 1*GSM/3G/4G antenna interface Connect LoRa antenna Connect GSM/3G/4Gantenna 2.4 Installation S281 supports flat desktop placement, wall mounting and rail mounting. -
Page 14: Configuration
Rail mounting Parameter configuration S281 software is with a very user-friendly UI design.User can connects the S281 gateway (hereinafter referred to as "gateway") through the USB cable to configure related content, export and load configuration files or firmware upgrade. 3.1 Before Configuration 3.1.1 Install Driver... - Page 15 GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 3.1.2 Find Com Port Right mouse click [My Computer] and click "Properties > Device Manager > Port". If the connection is normal and the driver is installed properly, the following is displayed (the local port number is COM3)： Tips: In some computer, if install the USB driver with problem, please try to get technical supports from technical support page http://www.silabs.com...
-
Page 16: Basic Setting
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Select connected com port, ,COM3,click open com button ,Then click the password (the initial password is 1234).If the device is successfully connected, the left bottom will turn green and show “connect successfully”. If the connection is not successful, please verify that the USB connection is good. If the password is incorrectly verified, please check the port number and password. - Page 17 GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway The device model number and version number are product default information. IMEI：Device identification,every device has only 1 IMEI. ◆ ◆GSM Value：The signal strength of the GSM/3G/4G network ranges from 0 to 31. If the reading is always zero, please verify that the SIM installation is secure and if the SIM card charge is overdue.
-
Page 18: Alarm Numbers Setting
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 3.3 Alarm Numbers Setting Alarm Tel Numbers: Set the alarm receiver numbers, please includes the country code, e.g. in China is 0086, so input 8613570810254 neither +8613570810254 nor 008613570810254. Also, some GSM/3G Operators not required input country code, so please remove country code, e.g. in China is 0086, and China Mobile not required country code, so can set as 13570810254. -
Page 19: Cellular Network Setting
GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Week: Set Monday to Sunday or every day. ◆ ◆Action:The specific action that is performed at the set time. Notice: After setting , please click the “Write Gateway Parameters” button above to save the set value. 3.5 Cellular Network Setting This Page is for set the Cellular communication parameters, Cellular network Transmit data protocol and Server information. -
Page 20: Ethernet Setting
The device ID sent by the device to the server to confirm the device information. If you want to Login Message: access King pigeon Cloud V3.0 platform (www.KPIIOT.com), please contact King pigeon to get a registration code. Confirmation data that the server feeds back to the device. - Page 21 GSM/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway 3.6.1 Local Network Setting ： ◆Ethernet Communication: 1 Enable ethernet communication function. Disable ethernet communication function. ◆Transmission protocol: TCP/UDP, pls choose according to your requirements. ◆Local IP and port: pls fill in according to the actual situation. (Cannot conflict with other IP addresses and ports in the network) ◆Subnet mask: pls fill in according to the actual situation.
- Page 22 The device ID sent by the device to the server to confirm the device information. If Login Message: you want to access King pigeon Cloud V3.0 platform (www.KPIIOT.com), please contact King pigeon to get a registration code. Login ACK Message: Confirmation data that the server feeds back to the device.
-
Page 23: Add Slave Device
WT100 remote transmission terminal device can connect the RS485 serial port device or RS485 sensor to the S281 gateway and the cloud, and transmit the devices or sensors data to the cloud. Can use many WT100 as group networks. The gateway S281 can collect data of RS485 Sensors or devices which connected to WT100 via RS485. - Page 24 S281 gateway. It is mainly used to monitor the environment temperature and humidity , and actively upload the data to the S281 LoRa gateway.It is with imported sensor core, meets the WMO World Meteorological Organization specifications, widely used in meteorology, environment,...
- Page 25 LoRa Gateway Features: LoRa protocol, simple, secure and reliable. The operating parameters and alarm parameters can be configured through the S281 configuration software. low power-consumption mode. Usually in a dormant state, periodically wake up to report data. If alarm is trigged ,can directly wake up to send the alarm data in 10S.
- Page 26 Features: LoRa protocol, simple, secure and reliable. The operating parameters and alarm parameters can be configured through the S281 configuration software. low power-consumption mode. Usually in a dormant state, periodically wake up to report data. If alarm is triggered ,can directly wake up to send the alarm data in 10S.
- Page 27 LoRa Gateway Features: LoRa private protocol, simple, secure and reliable; Working parameters and alarm parameters can be configured through S281 configuration software. Adopting two working modes, normal working mode and low power consumption mode, automatically switching according to voltage In low power consumption mode, an alarm can be triggered within 10 seconds to report the alarm data directly;...
- Page 28 ◆Active upload interval: The time interval for the terminal to report automatically, which can be selected according to the drop-down box. Minimum 5min, maximum 4h. ◆ Input type: temperature and humidity are fixed, the first channel is temperature, and the second Page 28 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
- Page 29 )Fill in the configuration information of WT100 on the configuration software ◆ Slave serial NO: Device address of the terminal (range: 1-100) ◆ Baud rate: 1200-115200 is optional, choose according to the actual situation, default: 9600. , Page 29 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
-
Page 30: Manage Slave Device
Because the working mode of the slave device is active upload, the data of the gateway cannot be received. Therefore, the “delete configuration” can only change the upload interval to 0, making it unable to alarm. Page 30 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0... -
Page 31: History Record
◆Export CSV: Export the contents of the table to a file in .XML format. ◆Delete device records: Delete all the history records and alarm records of the device, and start recording again from the first one. Page 31 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0... -
Page 32: Alarm Record
◆Clear displayed content: Empty the contents of the current form ◆Export CSV: Export the contents of the table to a file in .XML format. .Update Firmware S281 supports direct firmware upgrade via the USB port. If you have any new requirements to upgrade the firmware, please contact us. - Page 33 Default is 1. query password+IDE ID:XXXXX 6 ） Set Gateway Time Format is 2015-05-22 15:20:30W01, the W01 stands for Monday, W07 stands for Sunday. SMS Command Return SMS Content Page 33 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
- Page 34 Return SMS Content password+DRT+xx+yy Daily SMS Report at: xx:xx Notice: xx =00~23, stands for hour. yy=00~59,stands for minutes. Default is 10:00 query password+DRT Same as above Delete password+DRTDEL (not to report) Page 34 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
-
Page 35: Appendix A Sms Command
Return SMS Content Cellular network：password+GPRSON1 GPRS ON Enable Ethernet:password+ETHON1 Ethernet ON Password+GPRSOFF GPRS/3G OFF Password+ETHOFF Ethernet OFF Query Password + INTE Same as above GPRS Note: INTE fixed digital Page 35 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0... - Page 36 (N) to query separately and multiple . eg, query equipment 1 and 8: Note: Y means normal, N means 1234RCU0108 alarm Page 36 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
- Page 37 SMS reply: device ID: xx, yy zz... communication is abnormal. Appendix B Local Modbus Register Address S281 has no I/O port. The register is mainly used to map and store the temperature, humidity and voltage values of the terminal. Input register support function code 04...
-
Page 38: Appendix C Communication Protocol
GSM/SMS/GPRS/3G/4G/Ethernet/Cloud LoRa Gateway Appendix C Communication Protocol The S281 supports the Modbus TCP protocol and the Modbus RTU protocol, which can be connected to the user's OPC UA server, SCADA and HMI through cellular or Ethernet network. 1.Modbus RTU Protocol... - Page 39 0022H parameter, the low byte is first, such as 00 01H, then the order: 01 00H. Specific explanation: 0126H:294, temperature: 29.4C 024DH: 589, humidity: 58.9% RH 0022H:34, voltage: 3.4V Page 39 of 39 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0...
