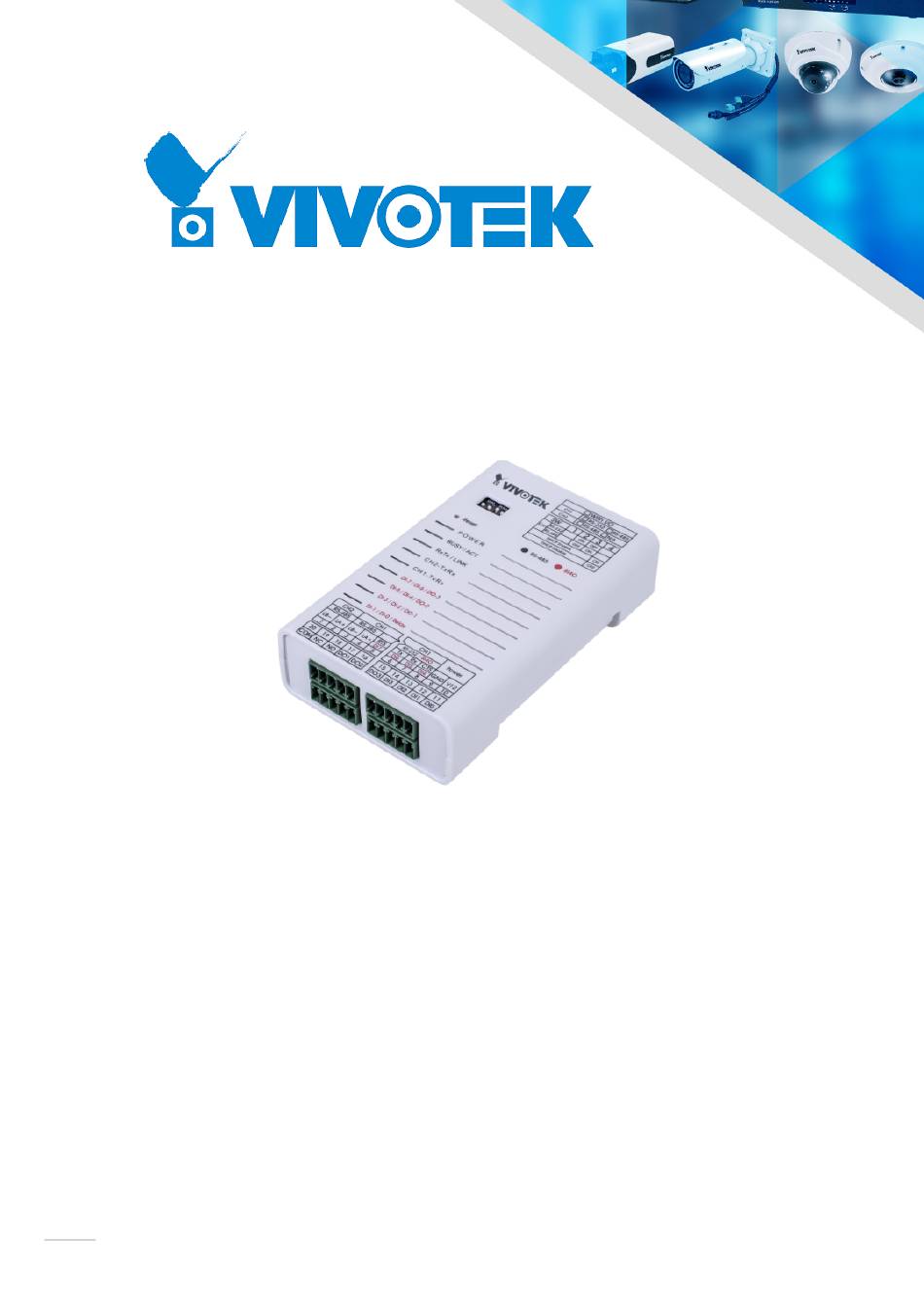

- Page 1 User Manual VIVOTEK Wiegand Converter AO-20W (900061700G)
-
Page 2: Table Of Contents
Scenario description ..................... 3 System Deployment ....................3 Configuration in ANPR software ............... 4 ..............4 How to configure mapping list ... 7 Configure VIVOTEK Wiegand converter settings in ANPR service Configuration in VIVOTEK Wiegand converter management tool ..8... -
Page 3: Overview
(Data 0, Data 1) so that an easy integration is possible with existing access control systems. Using the VIVOTEK ANPR software, you can easily configure the mapping list to link plate number to a specific ID number, and configure different actions in individual user groups. -
Page 4: Configuration In Anpr Software
Configuration in the ANPR software How to configure a mapping list 1. Click the “List” tab on the top menu. 2. You can see different types of lists that you can edit. You can also create your own list by clicking the “+” icon. Click the list you would like to configure. - Page 5 Adding a new plate number to a specific list. You can click “+” icon to add a new plate number, u Plate: The plate numbers you would like to add to this specific list, for example, ABC321, please remove the dash “-” in the plate number.
- Page 6 You can also edit or delete any plate number using the “edit” or “delete” buttons. 5. Adding action to the group. Click the “+” icon, you can fill in any information on description column, and select “Wiegan Vivotek” on the action type column. Select “Enabled” on the active column.
-
Page 7: Configure Vivotek Wiegand Converter Settings In Anpr Service
Click “Wiegand Vivotek” on the action type column to show the “Action properties,” and configure the converter information to ANPR service so that ANPR service is able to find the VIVOTEK Wiegand Converter and know the output format and output bit length it should... -
Page 8: Configuration In Vivotek Wiegand Converter Management Tool
Configuration in the VIVOTEK Wiegand Converter management tool 1. Connect the device to a computer, then open a Web Browser and enter "http://192.168.1.127" on IP address field to start a web console. This is the default IP. You may have to configure your PC IP to 192.168.1.x. - Page 9 4. Click on “Network Setting” on the Main Menu to configure a new IP address. You can enter the new IP address, LAN Net Mask and Default Gateway and click the “Update” button to save the new settings. 5. Click on “User Password” on the main menu to change the password.
