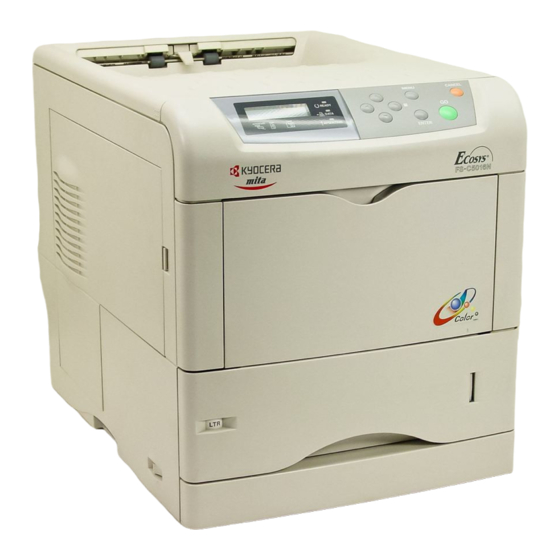

Kyocera Mita FS-C5016N Quick Reference Manual

Color page printer
Hide thumbs Also See for FS-C5016N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operating Manual
FS-C5016N
Color Page Printer
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Kyocera Mita FS-C5016N

Summary of Contents for Kyocera Mita FS-C5016N

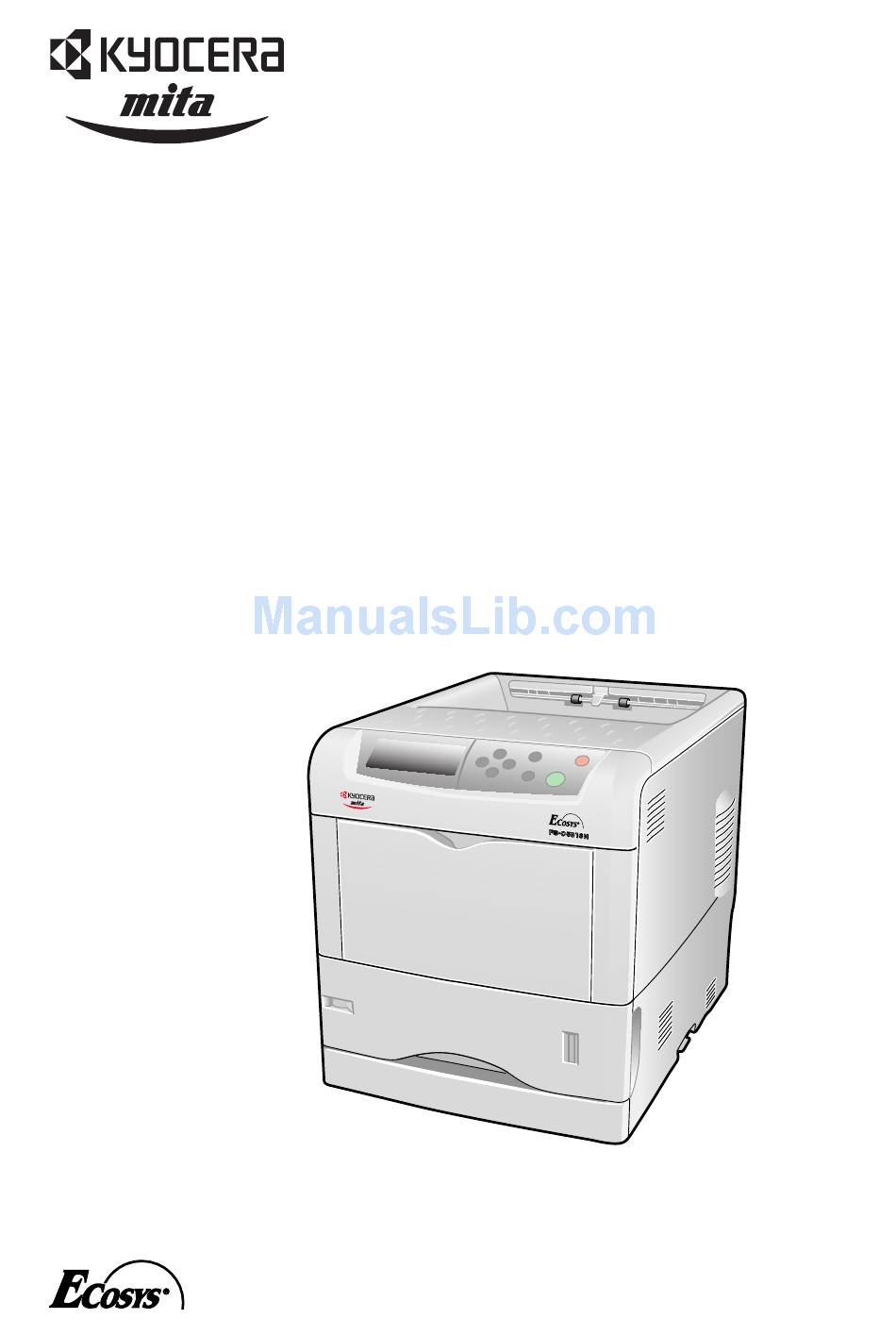

  • Page 1 FS-C5016N Color Page Printer Quick Reference Guide...
  • Page 2 All rights are reserved. Copying or other repro- duction of all or part of this manual, any copyrightable subject matter without the prior written consent of Kyocera Mita Corpora- tion is prohibited. Any copies made of all or part of this manual, any copyrightable subject must contain the same copyright notice as the material from which the copying is done.
  • Page 3 FS-C5016N Quick Reference Guide...

  • Page 4: Table Of Contents

    Contents Guide to the information about the printer ...3 Understanding the Error Messages ...4 Loading Paper ...14 Clearing Paper Jams ...22 Jam at the Paper Cassette ...23 Jam at the Paper Transfer Unit ...23 Jam at the Rear Cover ...25 Jam at the MP Tray ...26...

  • Page 5: Guide To The Information About The Printer

    (PDF) in the CD-ROM. This guide explains how to install and configure the printer driver. These CDs include the printer software for Kyocera Mita printers such as printer drivers, network printer monitors, and various soft- ware utilities. Also, these CDs include the Operation Guides and other documents.

  • Page 6: Understanding The Error Messages

    2 or more, only the Add paper message is displayed. F### represents a controller error (#=0, 1, 2, ...). Call a service. The printer does not operate when this message is displayed. #### represents a mechanical error (#=0, 1, 2, ...).
  • Page 7 Close the duplexer top cover. The paper transfer unit is open. Close the paper transfer unit. The left cover of the printer is open. Close the printer left cover. The rear cover of the printer is open. Close the printer rear cover.
  • Page 8 Hard disk Format error Memory card Corrective Action The top cover of the printer is open. Close the printer top cover. You attempted to print with a paper size and paper type that cannot be used for duplex printing. Press the GO key to print onto one-side of the paper only.
  • Page 9 Replace Maintenance Kit which is dis- played on the message display. Replace- ment of the maintenance kit is necessary at every 200,000 images of printing and requires professional servicing. Contact your Kyocera Mita dealer.
  • Page 10 Message KPDL error ## Press GO Load Cassette # † (A4)/(PLAIN) Corrective Action Current print processing cannot continue because of occurrence of KPDL error which is categorized by ##. To print out an error report, display > Print KPDL err(s) from the menu system, and select On.
  • Page 11 (A5)/(PLAIN) Corrective Action There is no paper cassette installed in the printer that matches the paper size and paper type of the print job. Set paper in the envelope feeder. Press the GO key to resume printing. (Note that feeding the...
  • Page 12 If you continue reading the mem- ory card, insert the same memory card into the slot again. The printer again reads it from the beginning of the data. Also see Insert the same memory card.
  • Page 13 Paper path error There is no paper cassette in the feeder, Corrective Action The total amount of data received by the printer exceeds the printer’s internal mem- ory. Try adding more memory. Press the GO key to resume printing. You can aban- don printing by the CANCEL key.
  • Page 14 Press GO Toner low C, M, Y, K Corrective Action The print job transferred to the printer was too complex to print on a page. Press the GO key to resume printing. (The page may break in some pages.). You can abandon printing by the CANCEL key.

  • Page 15: Corrective Action

    The storage area in the hard disk for the virtual mailboxes is full. Print out accumu- lated jobs in the virtual mailboxes. The printer’s internal memory is running low due to too many numbers of fonts and macros downloaded. Try deleting unnec-...

  • Page 16: Loading Paper

    Loading Paper Fan the media (paper/transparencies), then tap it on a level surface to avoid media jams or skewed printing. Caution Loading paper into the cassette Pull the paper cassette all the way out of the printer. Paper Cassette...
  • Page 17 Standard paper sizes are attached to the inside of the paper cassette as shown in the following figure. Push the bottom plate down until it locks. Bottom Plate...
  • Page 18 Paper Size Dial When the paper size dial is set to OTHER the paper size must be set into the printer on the operator panel. See chapter 3 of the Operation Note Guide. Release Lever Paper Size Window Paper Guides...
  • Page 19 Release Lever When using non-standard size paper, move the paper guides and paper stopper all the way out, insert the paper, then adjust the paper guides and paper stopper to the size of the paper. Adjust them so that they are in light contact with the paper.
  • Page 20 • Do not load more paper than will fit under the load limits on the paper guides. Note • The paper cassette will hold approximately 500 sheets of paper with a 80 g/m² (21 lb.) basis weight, or with a thickness of 0.11 mm. Load Limit Clip...
  • Page 21 When paper is exhausted, the pointer will go down to the level of (empty). Paper Gauge Insert the paper cassette into the slot in the printer. Push it straight in as far as it will go.
  • Page 22 MP Tray Paper Guides Subtray Loading paper into the MP (Multi-Purpose) tray Pull the MP tray towards you until it stops. Pull out the sub- tray. Adjust the position of the paper guides on the MP tray. Standard paper sizes are attached to the MP tray.
  • Page 23 Load Limit • Do not load more paper than will fit under the load limits on the inside of the MP tray. Note • If the paper is considerably curled in one direction, for example, if the paper is already printed on one side, try to roll the paper in the opposite direction to counteract the curl.

  • Page 24: Clearing Paper Jams

    Clearing Paper Jams The figure below is a simplified diagram showing the paper paths in the print system. You can clear paper jams easily and quickly if you become familiar with the paper paths and locations of potential jams. Duplex unit DU-300 Depending on the indication on the message display, proceed as follows:...

  • Page 25: Jam At The Paper Cassette

    Jam at the Paper Cassette If paper is jammed at the standard paper cassette (Cassette 1), open and close the paper transfer unit (the paper jam error will be reset). Jam at the Paper Transfer Unit Paper Transfer Unit Pull out the paper cassette and remove the jammed paper.
  • Page 26 If paper is jammed as shown in A, remove the paper by pulling the center up. Registration Roller If paper is jammed as shown in B, remove the paper by pulling the edge. Registration Roller...

  • Page 27: Jam At The Rear Cover

    Jam at the Rear Cover Paper Transfer Unit Paper Transfer Unit Release Lever Rear Cover Fuser Cover While pulling the green paper transfer unit release lever, pull out the paper transfer unit. Open the rear cover and then the fuser cover, and remove the jammed paper.

  • Page 28: Jam At The Mp Tray

    The fuser unit inside the printer is hot. Do not touch it with your hands as it may result in burn injury. Remove jammed paper carefully. Caution Push the paper transfer unit back in and close the fuser cover and rear cover.

  • Page 29: Toner Container Replacement

    8,000 images Magenta 8,000 images Yellow 8,000 images Replace the toner container when the printer displays, for example: Toner low This is the first caution. Note the replacement is not always necessary at this stage. Replace the toner con- tainer immediately when the printer displays: Replace Toner †...

  • Page 30: Replacing The Toner Container

    Replacing the Toner Container You do not have to turn printer power off before starting the replacement. Any data that may be under printing process will be deleted if you turn Note printer power off. To replace the toner container, first make sure of the color of the toner container requiring replacement according to the message display.
  • Page 31 Carefully remove the old toner con- tainer from the printer. Put the old toner container in the plastic bag (con- tained in the toner kit) and discard it later according to the local code or regulations for waste disposal. Plastic Bag...
  • Page 32 Set the new toner container in the printer as shown in the figure. Push down on the top of the toner container to install it firmly in place. Push the blue lock Lock Lever lever on the toner container back...
  • Page 33 To replace the other color toner containers, use the same procedure above. When the toner container has been replaced, proceed to the next section. Close the top cover.

  • Page 34: Replacing The Waste Toner Box

    Replacing the Waste Toner Box Replace the waste toner box each time you replace the toner container. A new waste toner box is included with the toner kit. The printer will not operate without replac- ing the waste toner box. Left Cover...
  • Page 35 Plastic Bag Close the cap to the old waste toner box after removing the box from the printer. Old Waste Toner Box To prevent toner from spilling, put the old waste toner box in the plastic bag (con- tained in the toner...
  • Page 36 The printer parts must be cleaned when replacing the toner container. See Cleaning the Printer on page 35. When the toner container is replaced, reset the toner counter (see chapter 3 of the Operation Guide). New Waste Toner Box Insert the new...

  • Page 37: Cleaning The Printer

    Cleaning the Printer The following parts must be cleaned each time the toner container is replaced: • Main charger wire • Main charger grid • Registration roller In addition to this, it is recommended that the main charger wire and registration roller are cleaned periodi- cally at least once a month.
  • Page 38 There are 4 main charger units, one for each toner con- tainer. When performing the cleaning procedure, be sure to clean the main charger unit that corresponds to the toner container that was replaced. The following example explains the procedure to clean the main charger unit for the black toner container.
  • Page 39 Wire Cleaner Knob After cleaning, make sure you restore the wire cleaner knob to its home position. If the wire cleaner knob is not restored to its home position, a band will print along the length of the page. Note Cleaning the main charger wire —...
  • Page 40 Note Lift up slightly on the main charger unit and pull it out a short distance as shown in the figure. Attach the grid cleaner to the printer with the pad facing up. Grid Cleaner...
  • Page 41 Repeat this 2 to 3 times. These move- ments clean the grid. After cleaning is finished, remove the grid cleaner from the printer and discard it. The grid cleaner cannot be reused.

  • Page 42: Cleaning The Paper Transfer Unit

    Cleaning the Paper Transfer Unit Print problems such as soiling of the reverse side of printed pages may occur if the paper transfer unit becomes dirty. To clean the paper transfer unit: Be careful not to touch the black transfer roller during cleaning as this may adversely affect print quality.

  • Page 43: Registration Roller

    Paper Ramp Wiper Cloth Paper Transfer Unit Push the paper transfer unit back in. Transfer Roller (Black) Registration Roller (Metal) Wipe away the paper dust on the registration roller and the paper ramp using the wiper cloth included in the toner kit.
  • Page 44 Kyocera Mita Corporation 2-28, 1-Chome, Tamatsukuri, Chuo-ku Osaka 540-8585, Japan Phone: (06) 6764-3555 2003.3 © 2003 by KYOCERA MITA CORPORATION 7KKTA80E++RX All rights reserved. Printed in Japan...
