Kyocera Mita FS-C5016N Installation Manual

FS-C5016N

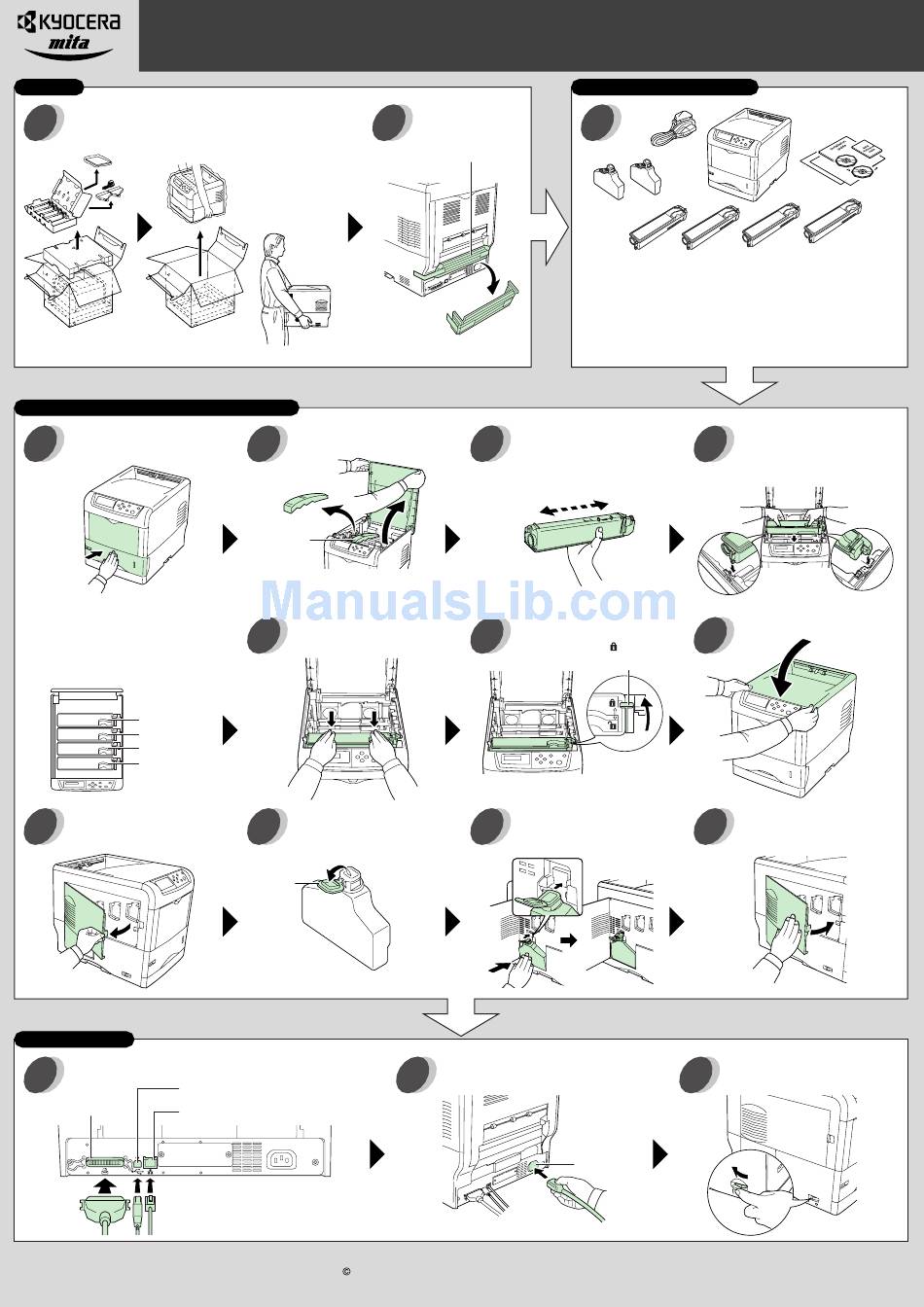

Installation Guide

Unpacking
Unpack the printer.
1
Installing the Toner Containers and Waste Toner Box
Close the paper transfer unit
4
tightly.
Note
Be sure you set the toner
container in the correct location
for that color.
Magenta (M)
Cyan (C)
Yellow (Y)
Black (K)
Open the left cover.
11
Making Connections
Connect to the computer.
15
USB Interface
Parallel
Interface
Network Interface
(Ethernet)
2
Be sure to hold
the right and left
sides of the
printer when
carrying it, as
shown in the
illustration.
Rear
Open the top cover and remove
5
the packing item.
Packing
Item
In this example, it is assumed that you
are installing the black toner container.
Push down on the top of the
8
toner container to install it firmly
in place.
Open the cap of the waste
12
toner box.
Cap
16
For more information about the printer, refer to the Operation Guide (PDF) in the CD-ROM supplied with the printer.
2003 by KYOCERA MITA CORPORATION All rights reserved. 2-28, 1-Chome, Tamatsukuri, Chuo-ku, Osaka 540-8585, Japan
Important!
Kyocera Mita assumes no liability for any damage caused by an improper
installation of the printer.
Checking Parts and Components
Remove the packing
3
cover.
Packing Cover
1 Printer
2 Documents and Software
Shake the new toner container
6
5 or 6 times as shown in the
figure in order to distribute the
toner evenly inside the
container.
Push the blue lock lever on the
9
toner container back towards
the locked symbol ( ) as far as
it will go.
To install the other color toner containers,
use the same procedure above.
Insert the waste toner box as
13
shown in the figure. When the
box is set correctly, it will shap
into place.
Connect the power cord to the
power outlet.
Power Cord
Connecter
8
7
3 4
3 Magenta Toner Container
4 Cyan Toner Container
• Installation Guide 5 Yellow Toner Container
(This sheet) 6 Black Toner Container
• Quick Reference Guide 7 Waste Toner Boxes
• Quick Configuration (One is spare.)
Guide (for Network) 8 Power Cord
• CD-ROMs
Set the new toner container in
7
the printer as shown in the
figure below.
Close the top cover.
10
Lock Lever
Make sure that the waste toner
14
box is correctly inserted and
close the left cover.
Turn on ( | ) the printer power
17
switch.
Printed in Japan 7KKTA80E++AX 2003.3
1
2
5 6
