- Page 1 Quick Start Guide with Alert Indicator included Mobile phone not included Powered by Technology CCD-0004082...
- Page 2 Quick Start Guide Pair Compass Connect App to Repeater ..3 Sensor Pairing with the App ....8 Pairing Alert Indicator to Repeater ..11 Troubleshooting .
- Page 3 Pair Compass Connect App to Repeater 1. Search for and download the free Compass Connect app (Fig.1) for either an iOS or Android smart phone. Fig.1 2. After the app has been downloaded, press GET and then Install and launch the app.
- Page 4 3. Follow the app’s installation prompts to configure the Compass Connect app. NOTE: Optionally, press the Pair Mode button (Fig.3A) on the Repeater and look for TireLinc in the app’s listing. Fig.3...
- Page 5 4. Press the Settings button (Fig.4A) at the bottom of the Compass Connect HOME page. Fig.4...
- Page 6 5. Select the “Add an accessory” A. -60 is greater than -70; select button (Fig.5A). -60 because it is the stronger number. 6. When the “scan for devices” window appears, look for TireLinc in the list. B. 20 is greater than 10; select 20 Select the one with the strongest RSSI because it is the stronger number.
- Page 7 7. Select a vehicle class (Fig.7) and 8. Select a vehicle and press finish press continue. (Fig.8A). Fig.7 Fig.8...
- Page 8 Sensor Pairing with the App NOTE: If a wrong trailer type is is room to add the sensors. Lock chosen or there is a new trailer nuts will be tightened later. The configuration, see Troubleshooting lock nuts are optional and are not section for factory reset.
- Page 9 NOTE: It may take up to 30 3. Repeat steps 2B, 2C and 2D seconds for the sensor to awake until all sensors are learned. and be found. 4. Press the Finished button to exit TIRE PRESSURE Sensor C. If the sensor is not seen Configuration mode.
- Page 10 NOTE: To exit learn mode, NOTE: If installing the optional press the back arrow and the lock nut as a theft deterrent, sensors will not be forgotten. loosen stem sensor slightly and hand tighten lock nut against NOTE: When learning has the sensor.
- Page 11 Pairing Alert Indicator to the Repeater 1. Pair the Alert Indicator (Fig.9) to the Repeater by pressing and releasing the Alert Indicator button (Fig.9A) The Indicator will power up and its LED (Fig.9B) will blink red once then blue three times indicating the Alert Indicator is NOT linked to the Repeater.

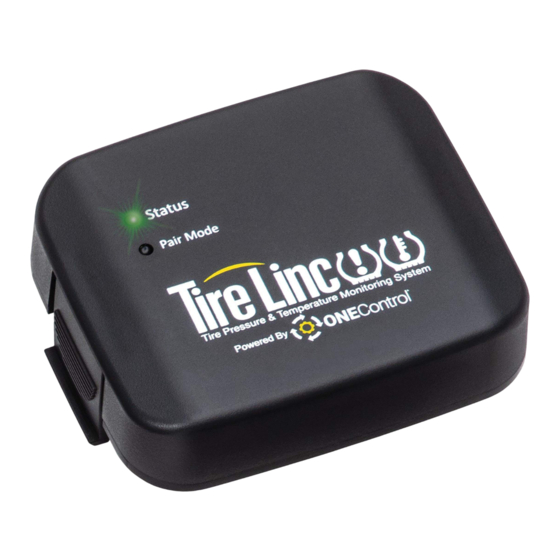

- Page 12 2. Link the Alert Indicator to the Repeater (Fig.10A) by pressing and holding the Pair Mode button (Fig.10C) on the Repeater for at least five seconds until the Status LED (Fig.10B) blinks rapidly. 3. Release the Repeater’s Pair Mode button. 4.
- Page 13 I. One beep will sound off and 6. The Alert Indicator is now one green LED flash will be linked to the Repeater. emitted. Continue to hold NOTE: The Repeater’s Status the button. LED will blink green, yellow or II. Two beeps will sound red to indicate certain conditions off and the LED will blink (see Step 7).
- Page 14 7. Wait for the Repeater’s Status continue to blink red until fault is LED to turn off, then press and corrected. release the Alert Indicator’s D. Red followed by blue notes button. The Indicator’s LED will Indicator is not linked to the flash as follows: Repeater.
- Page 15 Troubleshooting Factory Reset No Power In the event a wrong trailer type If system is not working, check is chosen or if there is a new the in-line fuse to the dock to trailer configuration, the settings ensure the dock has power. can be reset.
- Page 16 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI).LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been pro- vided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of LCI. ...
