Fosera SPARK User Manual

SPARK
User Manual
fosera GmbH & Co. KGaA
Beim Mühlbach 3
sales@fosera.com
89171 Illerkirchberg
Germany
Tel: +49 7346 92469 73
www.fosera.com
Fax: +49 7346 92469 75
Overview

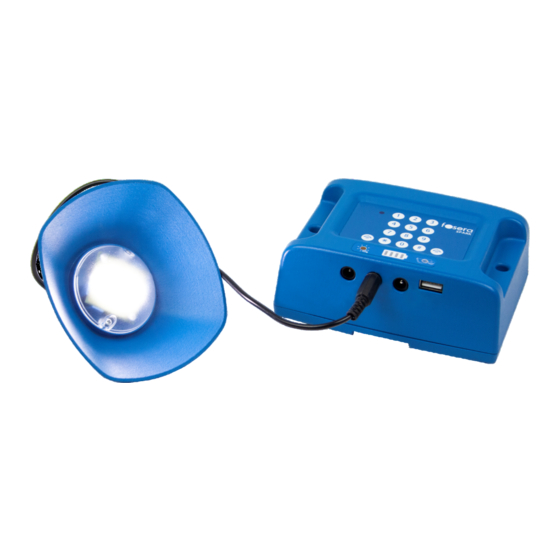

The fosera SPARK comes dimmable lamps which can be adjusted
between eco, medium and full level by pushing the SPARK Lamp/
Status button for the 2 LAMP mini configurations or by pressing
the LAMP mini touch switch for the 3 LAMP mini configurations.
For the 3 LAMP mini configuration, the SPARK Lamp/Status button
shows the state of the system (charge, battery and PAYG status).
PAYG keypad
1 2 3
4 5 6
7 8 9
Lamp/Status
button Left *
0 #
Charge
indicator
Battery status bar
PAYG
To top up credit enter the keycode over the keypad.To get infor-
mation about the status of your PAYG, press the SPARK Lamp/
Status button.
· Green light : More than 2 days of credit left.
· Orange light : 1 hour to 2 days of credit left.
· Orange & red blinking light : Less than 1 hour of credit left.
· Red light : No more credit. Please top up.
Solar charge indication
By pressing the Lamp/Status button the system will show the so-
lar charge level:
· Green light : High charging power
· Orange light : Medium charging power
· Red light : Low charging power
!
Note: in the mornings, evenings and shady or bad weather con-
ditions the indicator could be orange or red. If it is a bright sun-
ny day and the indicator lights orange or red, it could indicate
that shading is occurring on the solar panel.
Additional power
USB charging is possible through one USB port. The USB port
automatically turns on if the system is operating. During low
power operation USB charging is disabled.
Lamp outlets
Solar input
SPARK
Lamp/Status
button Right
PAYG status
indicator
Battery state of charge
When either of the SPARK
Lamp/Status buttons are
pressed the battery status
bar and the PAYG status
bar indicator lights up.
Energy saving mode:
SPARK Protections
USB outlet
100%
75%
Energy saving mode ensures that even if the battery
is getting low, some charge is still left over for
lighting. When the system is in energy saving mode,
the USB is turned off. The energy saving mode is
indicated by one blinking green bar.
The fosera SPARK is protected against short circuit
and over current.
If an error occurs, all the LED's will blink.
Please disconnect all appliances and solar panel.
50%
25%
