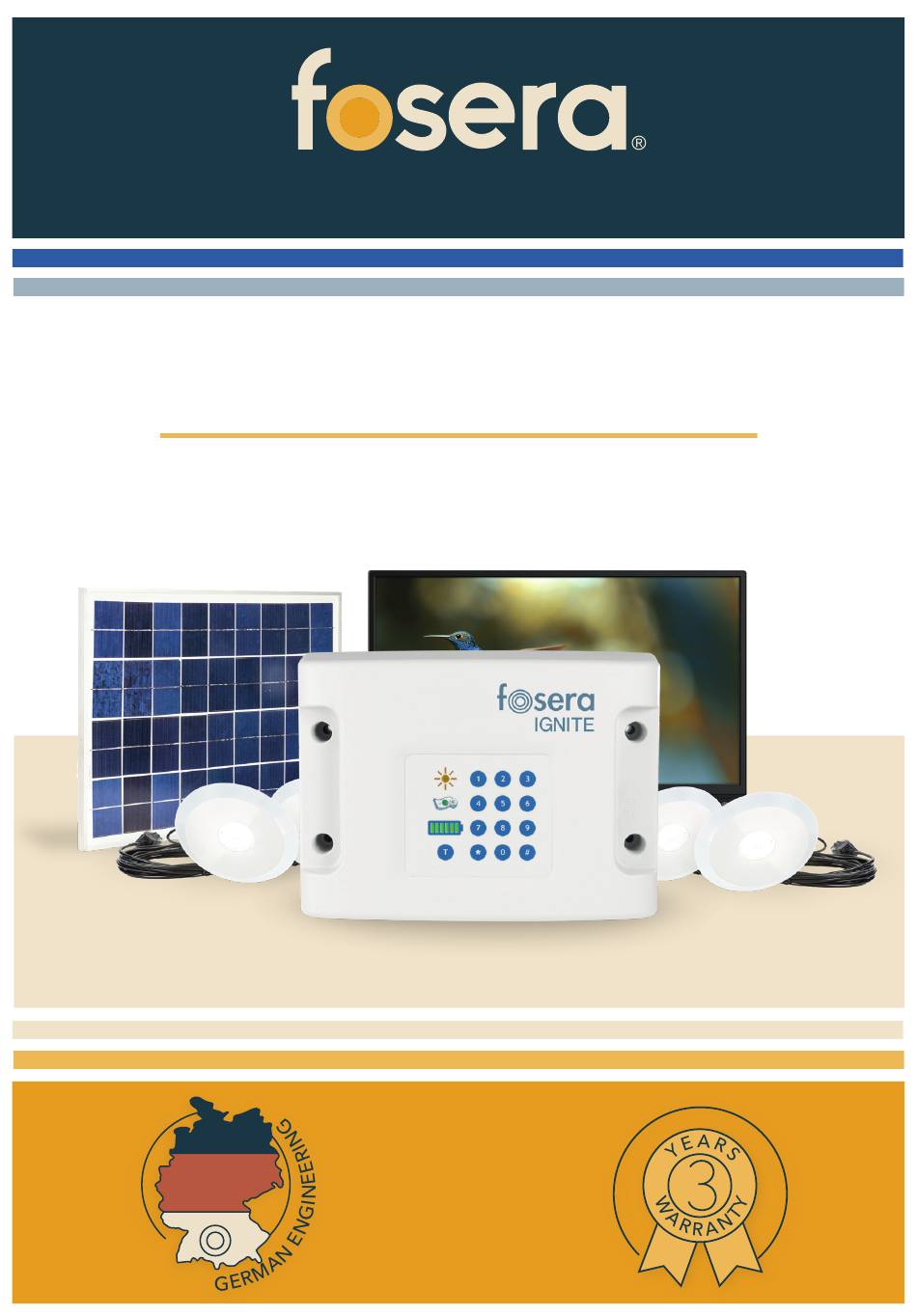

- Page 1 Power Line IGNITE USER MANUAL Rev01...
-
Page 3: Installation And Maintenance
Fosera. • Clean the solar panel from time to time to ensure proper power output. • Keep all Fosera products in a safe place and make sure the panel is installed securely, so it can not fall down. -
Page 4: Operation
• Clean the panel regularly. As soon as the IGNITE is connected to the solar panel, the solar charging light indicates that the systems battery is charging and is well connected to the solar module. - Page 5 The Configurable Output and the High Power Output can be used as a special outlet with four different functions. These functions can be changed by introducing a fosera code into the keypad. HIGH POWER OUTPUT Normal mode Night light Priority outlet...
-
Page 6: Box Mode
SOLAR CHARGING INDICATOR The solar charging indicator is turned on as long as the system recieves energy from the panel. Green light: Red light: Indicates maximum charging power. Indicates low charging power, e.g. in the morning, a cloudy day or a shaded panel Orange light: Light off: Indicates medium charging power. -
Page 7: Test Button
TEST BUTTON KEYPAD PAYG RECHARGING CREDIT Once the credit of the system is low or empty you need to purchase new credit from your distributor. Once you received your token (e.g. *123456789#) you need to enter the token into the integrated keypad to recharge your system. The system gives the feedback via a green indication each time a button is pressed and once the code is typed it will give the following messages: Orange light:... - Page 8 SYSTEM COMUNICATION The IGNITE keypad allows the user to get information as how many exact days of PAYG credit are left or recieve the PAYG ID code in case it’s lost by using specific Fosera codes. DAYS OF PAYG CREDIT LEFT...
-
Page 9: Error Indication
ERROR INDICATION The IGNITE system will switch off automatically when an error occurs and it will automatically restart after 30 seconds. The errors are the following: OVERLOAD Display All SOC battery display blink green Error The Fosera. IGNITE notices an output power consumption bigger... -
Page 10: Data Sheet
Weight 1.00 1.41 1.78 2.17 2.53 Dimensions 233.0 x 172.5 x 90.0 PAYG (optional) OpenPAYGO Token AVIABLE APPLIANCES Fosera. Lamps Fosera. Radio 100 Fosera. Standing Fan Fosera. TVs 24” 24” 32” 32” Fosera. Cooler OPERATION TIME Solar runtime* 7:20 15:00... -
Page 11: Recycling Information
WARRANTY We trust in the quality of our products. All Fosera battery boxes, PV modules and lighting products come with 3 years warranty. During this period, we guarantee that our products are free from defects in material or workman-ship. - Page 12 CONTACT Headquarters Local retailer Fosera GmbH & Co. KGaA Beim Muehlbach 3 89171 Illerkirchberg Germany Tel: +49 7346 92469 73 Fax: +49 7346 92469 75 E-Mail: info@fosera.com Visit our website: www.fosera.com...
Need help?
Do you have a question about the IGNITE and is the answer not in the manual?
Questions and answers

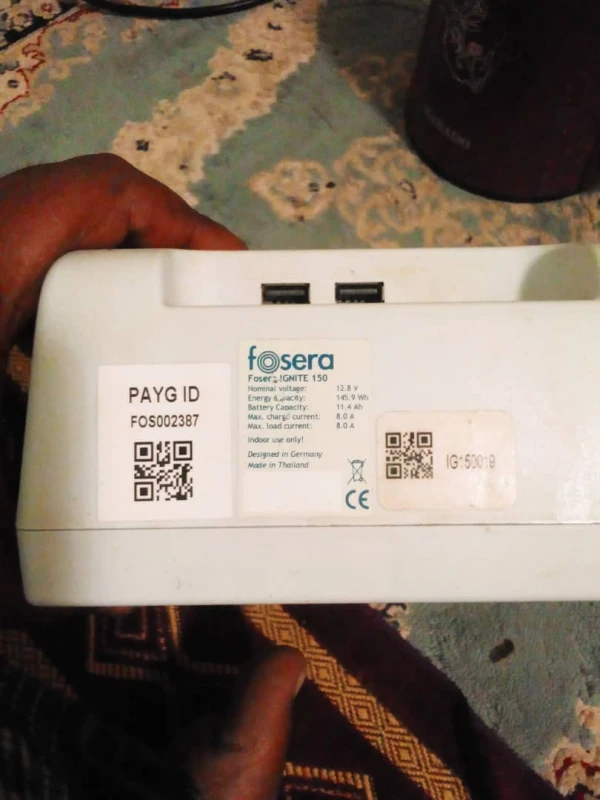

Subject: Assistance Request for Fosera Ignite 150 Charging Issue Dear Fosera Support Team, I have two Fosera Ignite 150 units, and both have stopped charging and are not displaying any output lights. Could you please provide any troubleshooting guide or solutions to resolve this issue? Your assistance would be greatly appreciated. Best regards, Abdifatah
1. Check Solar Panel Connection: Ensure the solar panel is properly connected. If the solar charging indicator blinks red, the input may be too high—use a smaller solar panel.
2. Battery Status Check: Press the test T button to check the battery status.
- If the display shows one red bar, the battery is empty. Connect the unit to the solar panel for charging.
3. Box Mode Activation: If the system has been inactive for 24 hours, it enters box mode, disabling all functions. To exit box mode, charge the system with the solar panel or press the test T button.
4. PAYG Credit Check: Press the test T button to check the PAYG display.
- Red light: No more credit—top up required.
- Orange light: 0–2 days of charge left—consider topping up.
5. Check Protection Features: The system has overcharge, deep discharge, overcurrent, and short-circuit protection. If triggered, allow time for reset and ensure no faults in connections.
