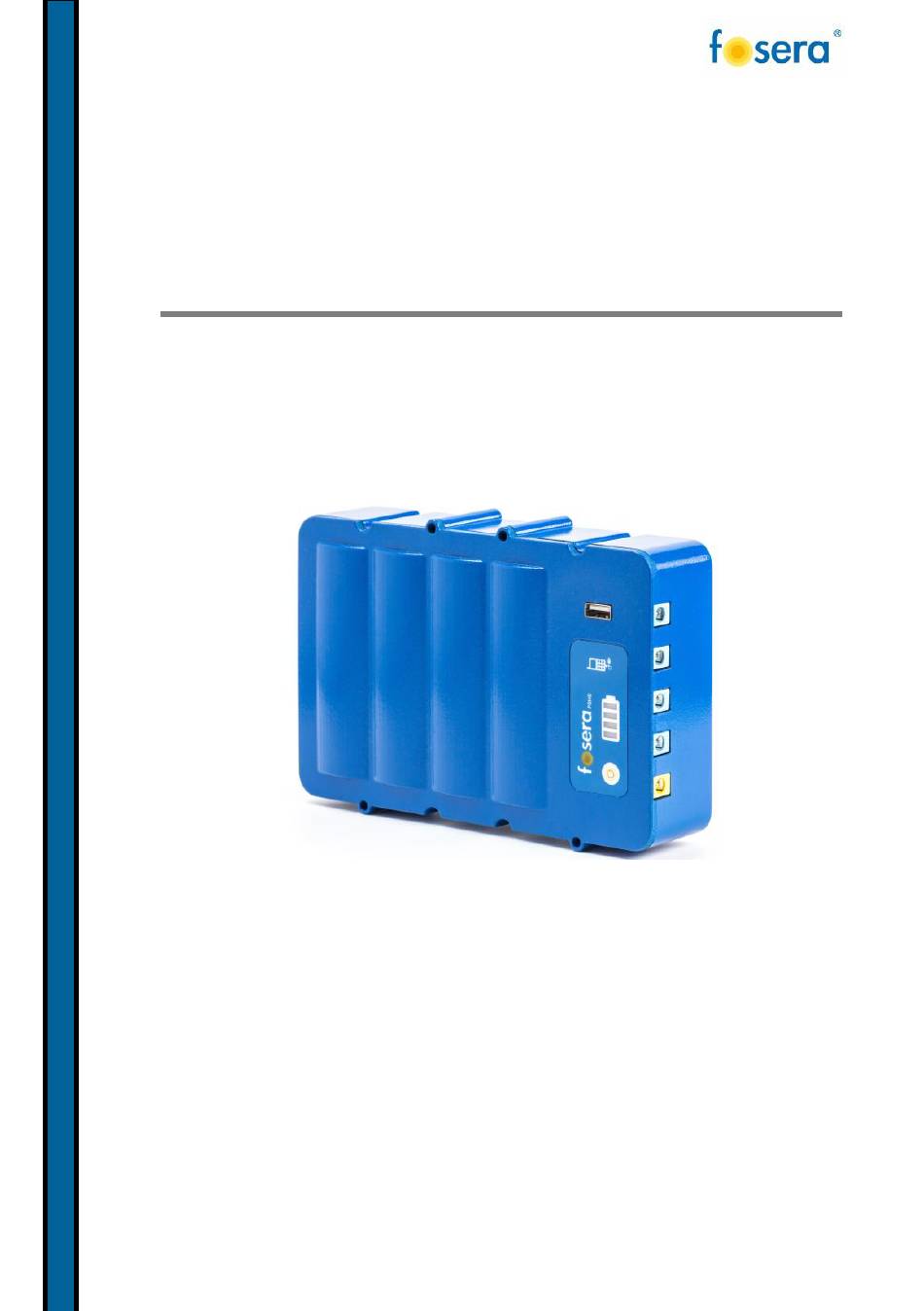

- Page 1 PSHS Li-Ion Solar Home System User Manual Please read and follow the instructions carefully before using the product! PSHS version 6 www.fosera.com info@fosera.com Rev01...
-
Page 2: Package Content
Introduction The fosera Li-Ion Solar Home System PSHS will provide you with years of reliable electrical energy. fosera systems have been developed according to German engineering standards to meet your daily energy needs. The PSHS system uses: High quality lithium iron phosphate batteries managed by our intelligent battery charger to ensure a long battery life. - Page 3 (C) Lamp alternatives (optional) Lamp12V 100 Lamp 12V 200 Lamp 12V 400 (D) Radio with cable (optional) (E) User Manual (F) Mounting Set...
-
Page 4: Installation
Connect the solar panel (A) to the yellow socket of the PSHS (B). Connect the cable of the fosera lamp (C) to the blue socket of the PSHS. As soon as the PSHS is connected to the solar panel and the test button is pressed, the yellow light indicates that the systems battery is charging and well connected to the solar module. -
Page 5: Operation
Operation Solar Home System operation Check the status of the system by pressing the (T) Test Button: Battery bar Charge light Test button (T) During the daytime the yellow charging light should be always on. It indicates that the system is being charged and is well connected to the module. - Page 6 Light symbol Status Meaning Charge light Indicates that the system charging. Battery bar 4 green bars Indicates full battery charge. (100% – 81%) Battery bar 3 green bars Indicates medium battery charge. (80% – 51%) Battery bar 2 green bars Indicates partial battery charge.
- Page 7 Mode 4: Excess outlet This outlet is always on when the battery is full, meaning it will work when the highest LED light is on. Changing the function: The function of the Special Outlet (next to the solar plug) can be changed by the user by pressing the “T”...
-
Page 8: Error Indication
Error Indication Over current protection: If all LED lights start blinking, too many “high consumption appliances” are connected to the system. The total consumption should not exceed Solution: Disconnect one or more appliances from the system and press the Test- Button (T) to reset the system. -
Page 9: Expanding Your System
Only authorized personnel can carry out any repairs of- and/or change fosera. Otherwise the warranty will be invalid. The ideal temperature for the functional capability of all fosera products is between 0°Celsius and 50°Celsius. -
Page 10: Maintenance
Keep all fosera products in a safe place and make sure they are installed securely. Do not open the products; this will result in a loss of the warranty. If the cables are damaged, make sure that they are repaired or replaced. -
Page 11: Technical Data
Technical Data fosera appliances are designed to last a long time and are extremely efficient. The appliances can therefore be used for many hours every day. fosera appliances can operate at any voltage of the system and in a wide range of temperatures. - Page 12 Protection function Overcurrent switch 2.80 short circuit µs reaction time short circuit peak current Charge current limitation Charging recommended 0.34 0.58 1.33 charge current Absolute max. 2.25 charge current Topology Mosfet with PWM Storage Store time full years battery Store time empty years battery Battery Box...
- Page 13 Solar Panel types 1.5 W 2.5 W Cell type poly poly poly Module dimensions 150x192x17 150x192x17 270x192x17 Nominal power (STC) 4.43 4.43 4.50 5.33 5.33 5.40 0.34 0.578 1.33 0.37 0.636 1.46 Weight...
-
Page 14: Warranty Card
Warranties We trust in the quality of our products. All fosera battery boxes and lighting products come with 3 years warranty. During this period we guarantee that our products are free from defects in material or workman- ship. Please contact your dealer or local fosera sales agent if you experience any problems with the product. -
Page 15: Recycling Information
For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, please visit the following webpage: http://ec.europa.eu/environment/waste/weee/index_en.htm Contact Headquarters Local Retailer fosera GmbH & Co. KGaA Beim Mühlbach 3 89171 Illerkirchberg Germany Tel: +49 7346 92469 73 Fax: +49 7346 92469 75 E-Mail: info@fosera.com...
Need help?
Do you have a question about the PSHS 3000 and is the answer not in the manual?
Questions and answers

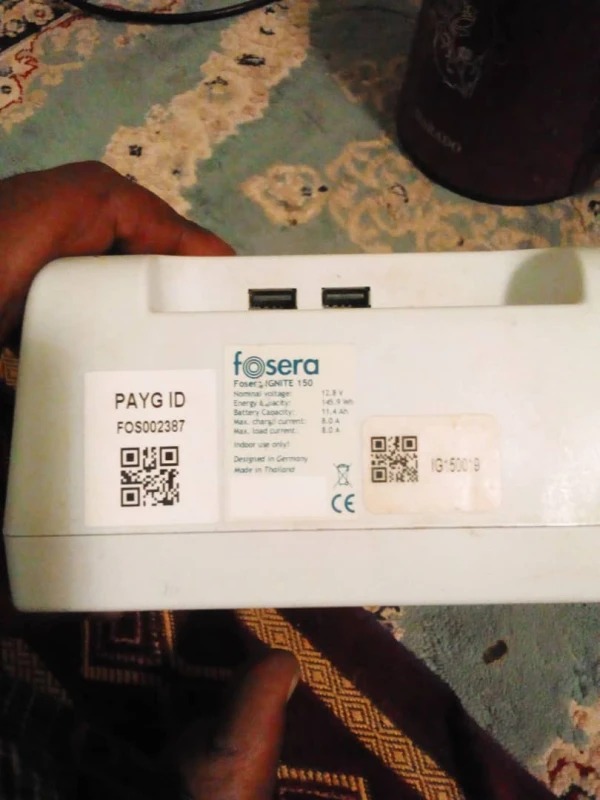

Subject: Follow-Up on Fosera Ignite 150 Charging Issue Dear Fosera Support Team, Thank you for your previous response. I have gone through all the troubleshooting steps, but the issue persists. I haven't used the units for about a month, and they were in the boxes during that time. Regarding the PAYG credit, I would like to understand more about how to check and top up. When I press the test button, I still don’t see the expected output, and I’m not sure if the lack of credit could be causing this issue. Could you please clarify how I can check and top up the PAYG credit? I would greatly appreciate your guidance. Best regards,
