Autonics LSE Series Product Manual

TCD210013AB

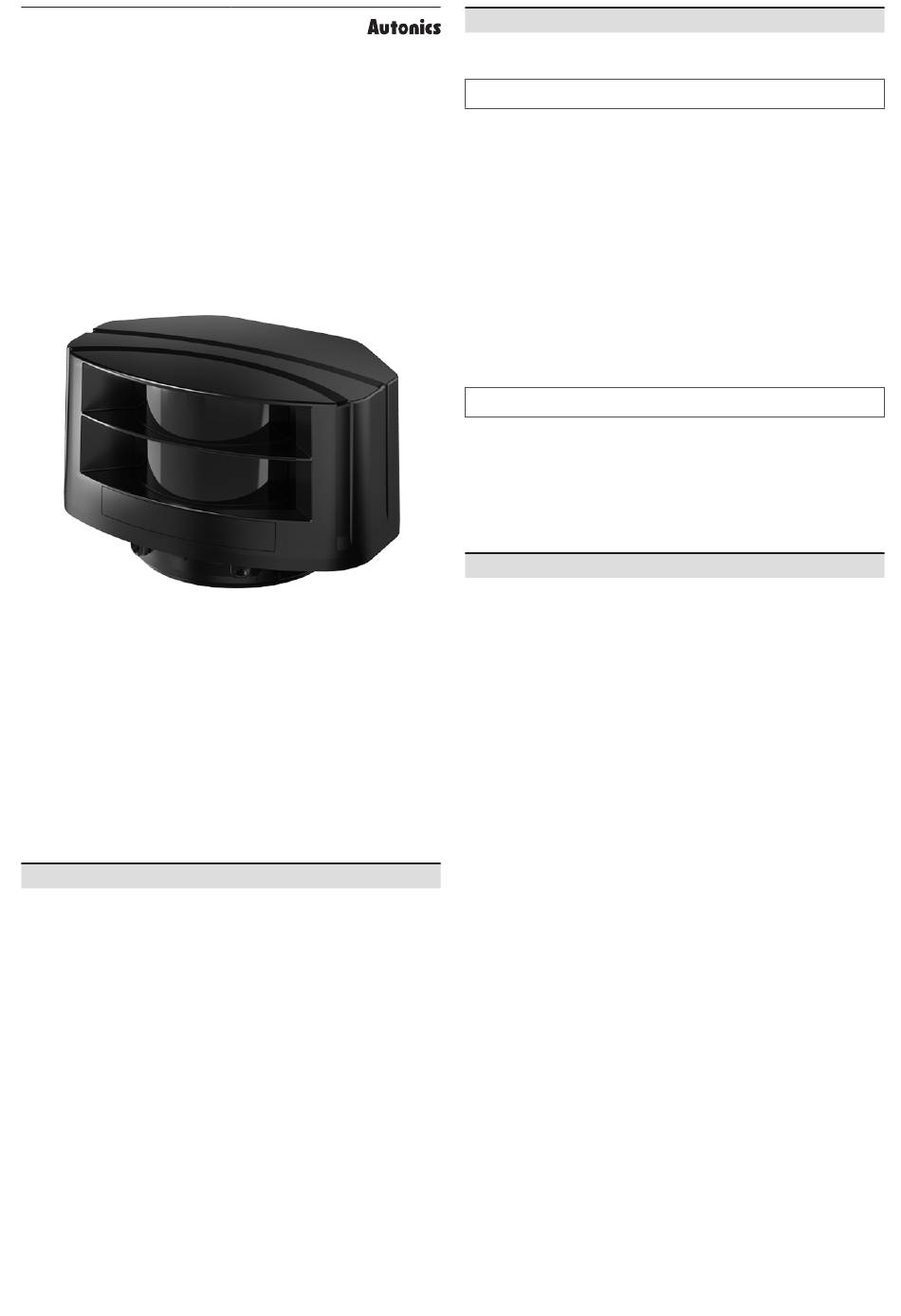

2D Laser Scanners
LSE Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Major Features

• Activated channel (s) among Ch1 to Ch4
- Monitoring zone setting
- Concentrated monitoring zone setting by channel
• Minimum size of the scanning target setting
(W × H × L: approx. 5 / 10 / 15 / 20 cm per each)
• Parameter setting and real-time monitoring by laser scanner program (atLidar)
(Ethernet communication)
• Easy parameter setting via the remote control (RMC-LS, sold separately)
• Emitting property: CLASS1, wavelength band (905 nm),
max. pulse output power: 75 W
• Small size (W 125 × H 80.3 × L 88 mm) for various installation environment
• Protection structure: IP67 (IEC standard)
• Satisfying Korean Railway Standard (KRS)
Patent application (Korea) 10-2017-0086042,
Patent registration (Korea) 10-1674062,
Patent application (China) 201680065367.9,
Patent applicatin (Germany) 112016004753.3
ᜢ ᜣ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in economic loss, personal injury or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
Failure to follow this instruction may result in fire or explosion.
03. This product is not safety sensor and does not observe any domestic nor
international safety standard.
Do not use this product with the purpose of injury prevention or life
protection, as well as in the place where economic loss maybe expected.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
05. Check connections and connect cables.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Do not stare at the laser emitter.
Failure to follow this instruction may result in eye damage.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
03. Use dry cloth to clean the unit. Do not use water or organic solvent when
cleaning the unit.
Failure to follow this instruction may result in fire.
04. Do not apply high pressure to the laser scanner to clean it.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• Power supply should be insulated and limited voltage / current or Class 2, SELV power
supply device.
• After supplying power, the sensor performs self-check for about 10 sec. When self-
checking, error occurrence, remote control setting, and teaching, the laser scanner
outputs the same as it sensed obstacle.
• Mutual optical interference between laser scanners and photoelectric sensors may
result in malfunction.
• Mutual optical interference between laser scanners may result in malfunction.
• Objects cannot be scanned when covering the front cover of the laser scanner.
• When the laser scanner is moved to another position, use it after re-teaching (Teach-
in).
• Do not drop the unit. It may cause malfunction.
• Installing the laser scanner in the place where smoke, fog, dust, or corrosion is heavy
may result in malfunction.
• When installing the laser scanner outdoors, take protective measures. Otherwise, it
may result in product damage.
• Keep away from high voltage lines or power lines to prevent inductive noise. In
case of installing power line and input signal line closely, use line filter or varistor at
power line and shield wire at input signal line.
• Do not use the laser scanner near the equipment which generates strong magnetic
force or high frequency noise.
