MARK Secure 1
Anchor point for drywall wall & attachment shell socket installation
Anchor device type A according to EN 795:2012
English translation of the original German
instruction manual
Keep for future reference
Version 1.2
Instruction manual
MARK Save A Life GmbH
Gleinkerau 23
4582 Spital am Pyhrn
Österreich / Europa
Tel +43 7563 8002 - 111
Fax +43 7563 8041 - 111
mark@savealife.at
www.savealife.at
Advertisement
Table of Contents
Related Manuals for Mark Secure 1
Summary of Contents for Mark Secure 1

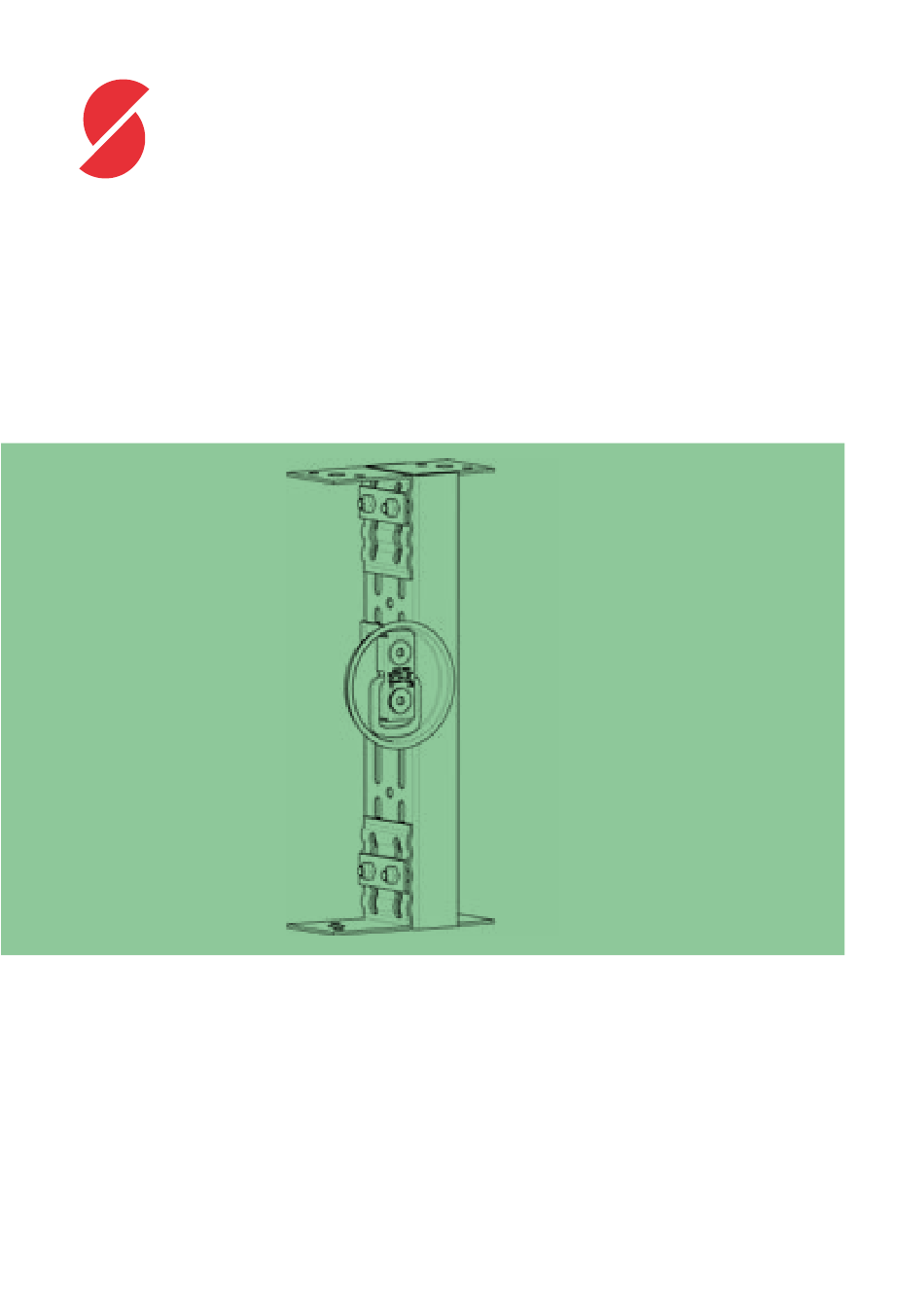

- Page 1 Instruction manual MARK Secure 1 Anchor point for drywall wall & attachment shell socket installation Anchor device type A according to EN 795:2012 MARK Save A Life GmbH Gleinkerau 23 4582 Spital am Pyhrn Österreich / Europa Tel +43 7563 8002 - 111...
-
Page 2: Table Of Contents
MARK Secure 1 installation instructions ....... . 9... -
Page 3: Legal Information
Protect the product from sharp-edged objects, „ welding sparks, sources of fire, chemicals, oils, The MARK Secure 1 anchor point is intended for use as acids, etc. an anchor device in conjunction with personal protective Draw up a rescue plan that includes the sequence equipment (PPE) recommended by MARK Save A Life „... -
Page 4: Overview, Scope Of Delivery And Technical Details
3.2 Scope of delivery: 1 x MARK Secure anchor point 4 x Fischer bolt anchor FAZ M12 incl. 1 x absorber washers and nuts (incl. -
Page 5: Mark Secure 1 Installation Instructions
4 x deformation brackets Installation: 4 x Fischer FAZ II 12/10 This product may only be installed as per this instruction manual. MARK Save A Life GmbH recommends it is installed by 7 x screws M8 x 25 8.8 galvanised a specialist company.. - Page 6 F with the maximum permit- 30 mm to the right of the position of the anchor point mark the anchor holes on the unfinished ceiling and that it is as far as possible towards the end of the un- ted torque (27 Nm).
-
Page 7: Transport And Storage
Observe periodic inspections. it can no longer be used (see Point 8) and replace Observe instructions for use for MARK Secure 1 on the following pages! The result of this inspection must be entered in „... -
Page 8: Disposal
Only put the person into a recumbent position „ MARK Save A Life GmbH is committed to protecting and knowledge, nor does it release you from your own slowly. the environment. We endeavour to consider the individual risk. - Page 9 Installation report for MARK Secure 1 Installation report for MARK Secure 1 Drywall wall & attachment shell socket installation Drywall wall & attachment shell socket installation The completed installation report for the anchor points listed below confirms that installation has been carried out The completed installation report for the anchor points listed below confirms that installation has been carried out properly in line with the instruction manual for the product.
- Page 10 Installation MARK Secure 1 construction kit supplied in full Instruction manual read and understood Unfinished floor concrete ≥ C 20/25 Unfinished ceiling concrete ≥ C 20/25 Distance of the drilled holes from the edge ≤ 55 mm Screw-in depth of the anchor ≥ 100 mm...
- Page 11 Making your life safer. MARK Save A Life GmbH Subject to technical modifications. Gleinkerau 23 The latest version shall always 4582 Spital am Pyhrn apply. Österreich / Europa only guarantee that materials are in perfect working Tel: +43 7563 8002 111 order.
