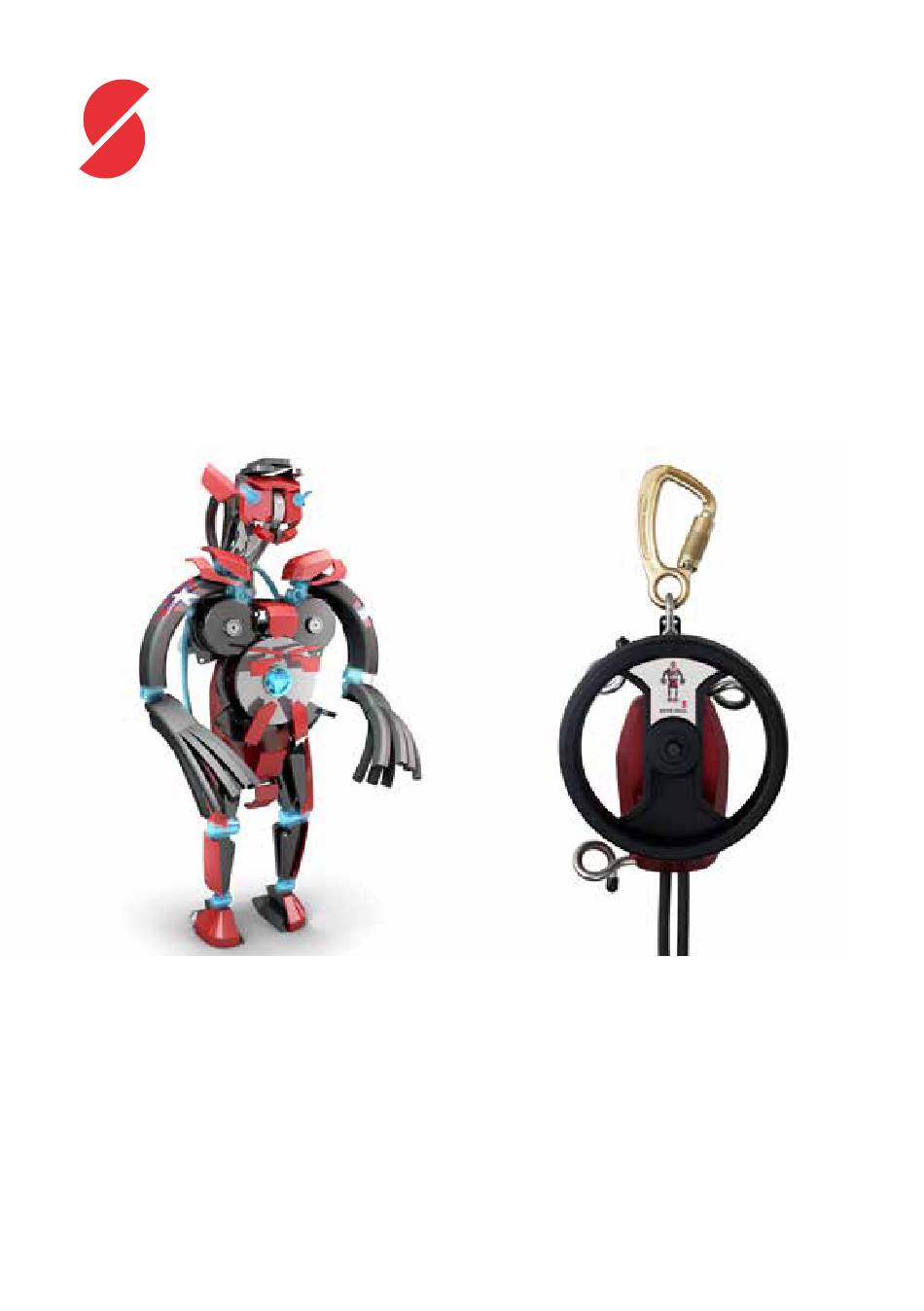

MARK Allstar Instructions for use
Descender, rescue and lifting device
ANSI Z359.4:2013 (2 Persons), EN 341:2011 – 1A, EN 1496:2017 - B
EN 12841 Type C
MARK Save A Life GmbH
Serial number:
Gleinkerau 23
4582 Spital am Pyhrn
Österreich / Europa
Tel +43 7563 8002 - 111
Fax +43 7563 8041 - 111
Translation / German into English
mark@savealife.at
Keep for future use
www.savealife.at
Version 1.1
www.facebook.com/makingyourlifesafer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allstar and is the answer not in the manual?

Questions and answers

Related Manuals for Mark Allstar

Summary of Contents for Mark Allstar

  • Page 1 MARK Allstar Instructions for use Descender, rescue and lifting device ANSI Z359.4:2013 (2 Persons), EN 341:2011 – 1A, EN 1496:2017 - B EN 12841 Type C MARK Save A Life GmbH Serial number: Gleinkerau 23 4582 Spital am Pyhrn Österreich / Europa...
  • Page 2 DATA SHEET...
  • Page 3 Fax +43 7563 8041 – 111 mark@savealife.at www.savealife.at Manufacturer MARK Save A Life GmbH, Gleinkerau 23, 4582 Spital am Pyhrn, Austria / Europe Country of origin Austria / Europe Copyright MARK Save A Life GmbH, Gleinkerau 23, 4582 Spital am Pyhrn, Austria / Europe...
  • Page 4 COMPETENT PERSON trained according to DGUV 312-906 or with appropriate regional training AUTHORIZED PARTNER trained by MARK Save A Life. The authorized partner is authorized to perform inspections and maintenance of the product. RESCUE / DESCENDER MARK Allstar incl. rope...

  • Page 5: Table Of Contents

    2.8 Overload 2.9Temperature 3 USE 3.1 Intended use 3.2 Important notes on the usage of the eyebolts 3.3 Abseiling with MARK Allstar 3.4 No move during lifting 3.5 Anchor device 3.6 Training 3.7 MARK Infini-Box 3.8 Lifetime and period of use...
  • Page 6 10 LEGAL INFORMATION 10.1 Declaration of conformity 10.2 Product liability 10.3 Copyright 10.4 Trademarks 11 DECLARATION OF CONFORMITY 12 TEST PROTOCOL 13 USAGE OVERVIEW...

  • Page 7: For Your Own Safety

    If you need more information or if you are not sure how to use this product, get in touch with MARK Save A Life. We will be happy to help you. This product is state of the art and corresponds to all applicable technical standards and guidelines.

  • Page 8: User Requirements

    • If the use of this product does not seem safe anymore (e.g. rope damaged etc.), send it to MARK Save A Life or an authorized partner for inspection and repair. Do not use • Fill in the inspection protocol carefully. Each inspection must be entered.

  • Page 9: Storage And Transport

    • Do not use chemicals when cleaning the product. • This product must be inspected by MARK Save A Life or an authorized partner at least once a year but in any case after maximum descent distance written on page 23.

  • Page 10: Product Overview

    ANSI Z359.4:2013 (2 persons), EN 12841:2006 Typ C (1 person) • Weight (without rope): 3,75kg • Rope for EN 341, EN 1496 und ANSI Z359.4:2013: MARK Kernmantlerope Ø10,5mm (EN 1891 A) • Rope for EN 12841: MARK Kernmantleropel Ø9,6mm till Ø11mm (EN 1891 A) •...

  • Page 11: Marking

    13 Max. and min. rated load 14 Compatible rope sizes and types 15 Harmonized standards Rope marking EN standard EN1891A:1998 - 10,5mm - L: 10m Diameter and Date of production, MM/JJ: 11/20 - MARK Save A Life length of rope Manufacturer...

  • Page 12: Scope Of Delivery

    This product may only be used in combination with tested and certified products. • Only use this product with tested products or with products that have been recom- mended by MARK Save A Life. The following products correspond to the applicable WARNING PPE against falls from a height standards.

  • Page 13: Redundancy

    Danger: If you turn the hand wheel in the wrong (blocked) direction, the wheel or the WARNING device can be damaged. In that case, the device has to be inspected by MARK Save A Life or by an authorized partner.

  • Page 14: Use

    Using this product without having read these instructions for use can lead to acci- dents resulting in severe injuries or death. • Read these instructions for use carefully before using this product. • In case of doubt or if you have questions please contact MARK Save A Life. DANGER Inspection Using this product without having performed a visual and functional inspection can lead to accidents resulting in severe injuries or death.

  • Page 15: Important Notes On The Usage Of The Eyebolts

    3.2 Important notes on the usage of the eye bolts Eye bolt Shorter rope end, has to be tightened (no loose rope) Longer rope end, runs through the eye bolt Using the eye bolts, you can control the descent speed or stop the descent. The longer, unloaded rope end runs through the eye bolts.

  • Page 16: Abseiling With Mark Allstar

    3.3 Abseiling with MARK Allstar 3.3.1 Simple Abseiling passive Attach the rescue device to a proper anchor point. In both ways: using the eye bolt located on the side of the unloaded rope end will add friction when you hold back the unloaded rope end. This way you can reduce speed manually.

  • Page 17: No Move During Lifting

    3.3.2 Simple Abseiling active For ergonomic rope handling and to create addi- tional friction use the third eye bolt. This way the rope runs from bottom to top. You can block the device after stopping by run- ning the rope out of the device making a U-turn to the eye bolt and back through the rope clamp as shown (grab the handwheel while doing this).

  • Page 18: Anchor Device

    Training inspection requirements for this product must be followed (see inspection and maintenance). NOTE Trainings are an important part of MARK Save A Life products and services. No pro- tective equipment will save you from injury or death if you do not know how to use it properly.

  • Page 19: Mark Infini-Box

    MARK Save A Life. The MARK Infini Box has to be inspec- ted at least once a year but in any case before each use (damage, humidity etc.) from a competent person. If this box is damaged, it must be sent to MARK Save A Life for inspection.

  • Page 20: Lifetime And Period Of Use

    After max. 100 descents the rope has to be changed. Abrasion and usage have to be regularly checked. If the rope does not seem safe anymore, send the device to MARK Save A Life or a authorized person to check and replace the rope.

  • Page 21: Transport And Storage

    Repairs, adjustments or changes to this product that have not been authorized by MARK Save A Life can lead to severe accidents and falls. • Changes (e.g. change of the rope length) and repairs have to be performed by MARK DANGER Save A Life.

  • Page 22: Inspection

    6.2 Regular inspections After having been subjected to a fall, this product has to be sent to MARK Save A Life for inspection. Don’t forget to give us all necessary information (where and how this product has been damaged).

  • Page 23: Inspection And Maintenance

    If this product is used as emergency equipment (kept in MARK Infini Box or MARK Seal Pack and not being used), it has to be inspected by MARK Save A Life afte a max. of 10 years. Textile components have to be replaced. If this product is used as an emergency equipment, the packaging has to be checked regularly and, if damaged, the packaging and the product have to be sent to MARK Save A Life.

  • Page 24: Retirement

    RETIREMENT • You have to retire this product if MARK Save A Life or a competent person has stated that use is not safe. • Retire the product in such a way that it cannot be used anymore. • Retire this product in an environmentally friendly way. Separate materials! RESALE •...

  • Page 25: Accidents

    ACCIDENTS The following information should help you avoid accidents. However, this information does not replace experience, responsibility and know-how and does not release you from assuming personal risk. • Prepare a rescue plan and indicate all possible rescue measures for any given emergency situations.
  • Page 26 Identification number 511 10.2 Product liability MARK Save A Life does not assume liability for any direct, indirect consequences or consequences associated with accidents that result from improper use of this product or from false information made by a competent person or fitter on the test protocol or acceptance protocol.
  • Page 27 DECLARATION OF CONFORMITY...
  • Page 28 12 TEST PROTOCOL Product MARK Allstar Manufacturer MARK Save A Life GmbH Owner User Serial / lot number Purchased on Seller First used on Inventory number Inspections must be carried out at least once a year by a competent person.
  • Page 29 12 TEST PROTOCOL Product MARK Allstar MARK Save A Life GmbH Manufacturer Owner User Serial / lot number Purchased on Seller First used on Inventory number Inspections must be carried out at least once a year by a competent person.
  • Page 30 13 USAGE OVERVIEW (DOWNLOAD UNDER WWW.SAVEALIFE.AT) Usage no. Date Usage in meters Signature of user...
  • Page 31 13 USAGE OVERVIEW (DOWNLOAD UNDER WWW.SAVEALIFE.AT) Usage no. Date Usage in meters Signature of user...
  • Page 32 Making your life safer.
