Anchor point for reinforced concrete ceiling, suspended ceiling system, socket installation
Anchor device type A according to EN 795:2012
English translation of the original German instruction manual
Keep for future reference
Version 1.1
Instruction manual
MARK Save A Life GmbH
Gleinkerau 23
4582 Spital am Pyhrn
Austria/Europe
Tel. +43 (0) 7563 8002 111
Fax +43 (0) 7563 8041 111
mark@savealife.at
www.savealife.at
Advertisement
Table of Contents
Related Manuals for Mark Secure 2
Summary of Contents for Mark Secure 2

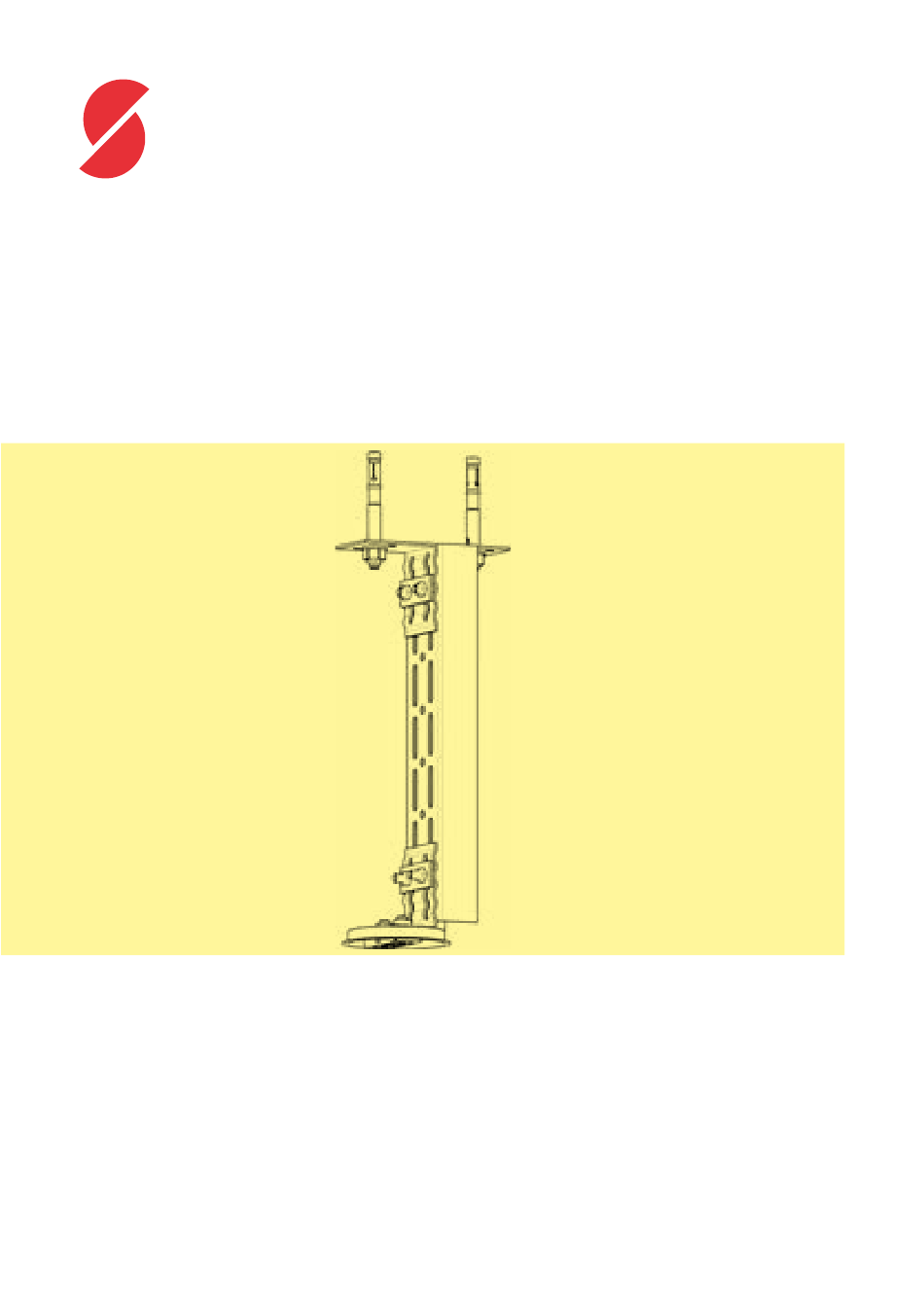

- Page 1 Instruction manual MARK Secure 2 Anchor point for reinforced concrete ceiling, suspended ceiling system, socket installation Anchor device type A according to EN 795:2012 MARK Save A Life GmbH Gleinkerau 23 4582 Spital am Pyhrn Austria/Europe Tel. +43 (0) 7563 8002 111...
-
Page 2: Table Of Contents
MARK Secure 2 installation instructions ....... . 9... -
Page 3: Legal Information
Assign your product an inventory number and enter it in the hit an obstacle or impact on the floor. The MARK Secure 2 anchor point is intended for use as installation report. an anchor device in conjunction with personal protective... -
Page 4: Overview, Scope Of Delivery And Technical Details
3.2 Scope of delivery: 1 x MARK Secure anchor point 2 x Fischer bolt anchor FAZ M12 1 x absorber incl. washers and nuts (incl. -
Page 5: Mark Secure 2 Installation Instructions
2 x deformation brackets Installation: 2 x Fischer FAZ II 12/10 This product may only be installed as per this instruction manual. MARK Save A Life GmbH recommends it is installed by 4 x screws M8 x 25 8.8 galvanised a specialist company. - Page 6 6 Secure 2 deformation brackets E with the attached UA 5. Mark holes for screw holes on the ceiling and drill 2 x profile J to the load-bearing structure using 2 x Fischer 12 mm holes to a depth of 110 mm.
-
Page 7: Transport And Storage
If it is stored and installed correctly and not subjected to a the reservation that components of the product have not MARK Save A Life GmbH is committed to protecting and knowledge, nor does it release you from your own load, this product has an unlimited service life. - Page 8 Notes 10.1.2 What can you do to stave off suspension 10.1.3 What first aid measures can you instigate? trauma if you need to be rescued? Call the emergency services. „ Kick one foot firmly against the other and point Lower the person who needs to be rescued. „...
- Page 9 Installation report for MARK Secure 2 Installation report for MARK Secure 2 Reinforced concrete ceiling, suspended ceiling system, socket installation Reinforced concrete ceiling, suspended ceiling system, socket installation The completed installation report for the anchor points listed below confirms that installation has been carried out The completed installation report for the anchor points listed below confirms that installation has been carried out properly in line with the instruction manual for the product.
- Page 10 Installation MARK Secure 2 construction kit supplied in full Instruction manual read and understood Unfinished ceiling concrete ≥ C 20/25 Distance of the drilled holes from the edge ≤ 55 mm Screw-in depth of the anchor ≥ 100 mm Drilled holes = 12 mm All parts of the construction kit used in full.
- Page 11 Fax: +43 (0) 7563 8041 111 mark@savealife.at All rights reserved. It is only www.savealife.at permitted to make changes to, reprint photographically reproduce this document, in whole or in part, with the express consent of MARK Save A Life GmbH, Gleinkerau 23, 4582 Spital am Pyhrn.
