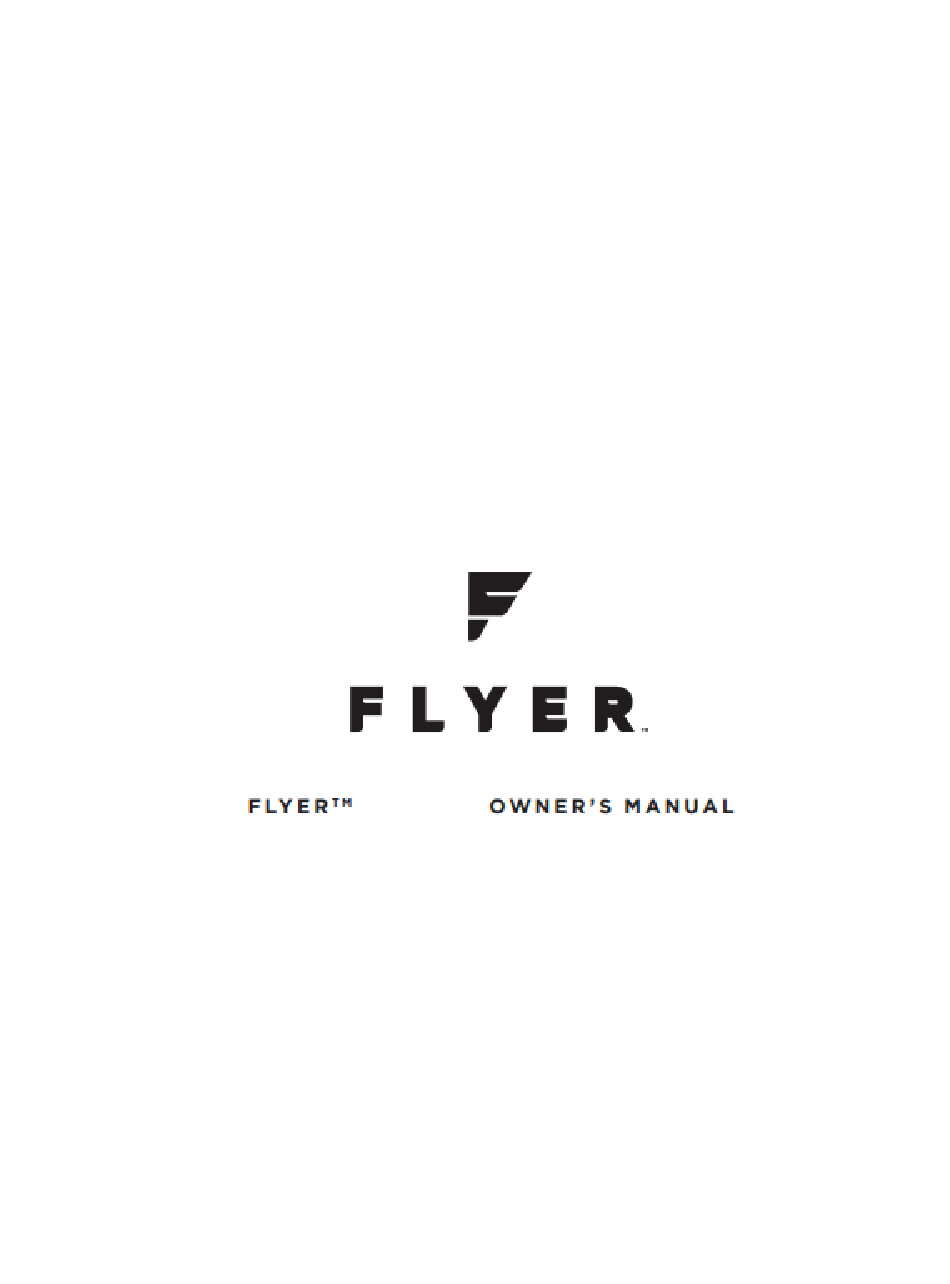

  • Page 1 Folding Cargo...
  • Page 3 Folding Cargo...

  • Page 8: Getting Started

    WARNING! Incorrect assembly, maintenance, or use of your Flyer™ eBike can cause component failure, loss of control, serious injury, or death. Please note, the assembly and first fit of your Flyer™ eBike require special tools and mechanical skills. It is highly recommended that the assembly and adjustment are completed by a reputable bicycle mechanic when possible.
  • Page 9 Step 2: Install kickstand A. Release the rubber latch that holds the bike in the folded position. Re-attach this latch to the pin located on the rear frame. B. Unfold the bike frame until the front and rear frames are aligned. C.
  • Page 10 Step 3: Position handlebar stem Your Flyer™ eBike’s handlebar stem is designed to be adjusted for optimal comfort. A. While holding the front wheel in place, rotate the stem to the rough location depicted below. B. Align the arrow decals on the frame, stem, and fork to ensure that the Stem is assembled straight.
  • Page 11 Step 4: Install Handlebars A. Using the provided 4mm allen wrench, loosen the two stem clamp bolts. B. Place the center of the handlebar in between the stem clamps. Tighten both bolts by hand making sure the handlebar can still freely rotate. Check to see that the cables are not twisted around the stem. C.
  • Page 12 Step 5: Install headlight A. Fully install the connector to the rear of the headlight housing. Make sure the headlight wire is installed in the correct orientation by aligning the small rib on both connectors. B. Adjust the angle of the headlight beam to illuminate the road ahead, while ensuring the light will not blind or obscure the vision of oncoming traffic or pedestrians.
  • Page 13 Step 6: Install right pedal A. Install washer onto the right pedal before installing. B. Install the right pedal to the crank arm by turning the axle clockwise by hand. C. Use the provided 15mm wrench to torque the pedal to 35 Nm. Note: We recommend applying pedal grease to the threads prior to installation.
  • Page 14 Step 8: Check fastener torque values Step 9: Inflate tires to 40-50 psi...

  • Page 15: Adjusting Seat Height

    Consult a trusted, reputable bike mechanic or contact Flyer customer service for any questions related to the seat position and fit of your bike. A. Open the quick release lever located under the saddle. Rotate the lever fully open to allow the seat post to slide easily.
  • Page 16 Adjusting Stem Height The stem height should be set based on your personal preference. The proper stem position is important to avoid back strain. WARNING! The stem post must be inserted to the minimum insertion mark. Do not raise the stem post beyond the minimum insertion marking on the seat post tube.
  • Page 17 Proper Bike Usage** Folding the Bike Note: Ensure the bike is on flat ground and the kickstand is deployed before folding. Remove any accessories attached to the bike that could inhibit the folding. A. Slide the round switch on the frame folding latch. B.
  • Page 18 Deploying and Retracting the Kickstand Warning: Make sure the kickstand is deployed before loading and unloading kids or cargo from the bike. Incorrect kickstand use could cause injury or death. A. Push the kickstand feet to the ground with your foot. B.
  • Page 19 Folding and Unfolding the Pedals Warning: Always use the bike when the pedals are unfolded. Riding the bike with folded pedals could cause injury or death. A. To unfold the pedals, squeeze the plunger to disengage the lock. B. While squeezing the plunger, rotate the pedal down until you hear a click. C.
  • Page 20 The bike includes a holder that can house one Bluetooth location tag as a security feature. The tag must be purchased separately and activated prior to installation. For a list of compatible tags visit flyer.radioflyer.com or contact customerservice@radioflyer.com You can access the Bluetooth tag holder by removing the battery and locating the tag pocket on the dock.

  • Page 25: Charging The Battery

    Charging the Battery The Flight SpeedTM battery can be charged while installed in the bike or when removed from the bike frame. Before charging, ensure the battery is off by powering off the display as described in the “Handlebar Display” section above. A.

  • Page 26: Removing The Battery

    A. Insert the provided key into the battery lock. If you own multiple Flyer™ bikes, please ensure the 3- digit codes on the key and lock are matching.

  • Page 27: Checking Battery Charge Level

    Checking Battery Charge Level In addition to the main display, the battery charge level can also be checked directly on the battery. Before checking the fuel gauge, remove the battery following the steps outlined in the “Removing the Battery” section. A.
