2.8.1

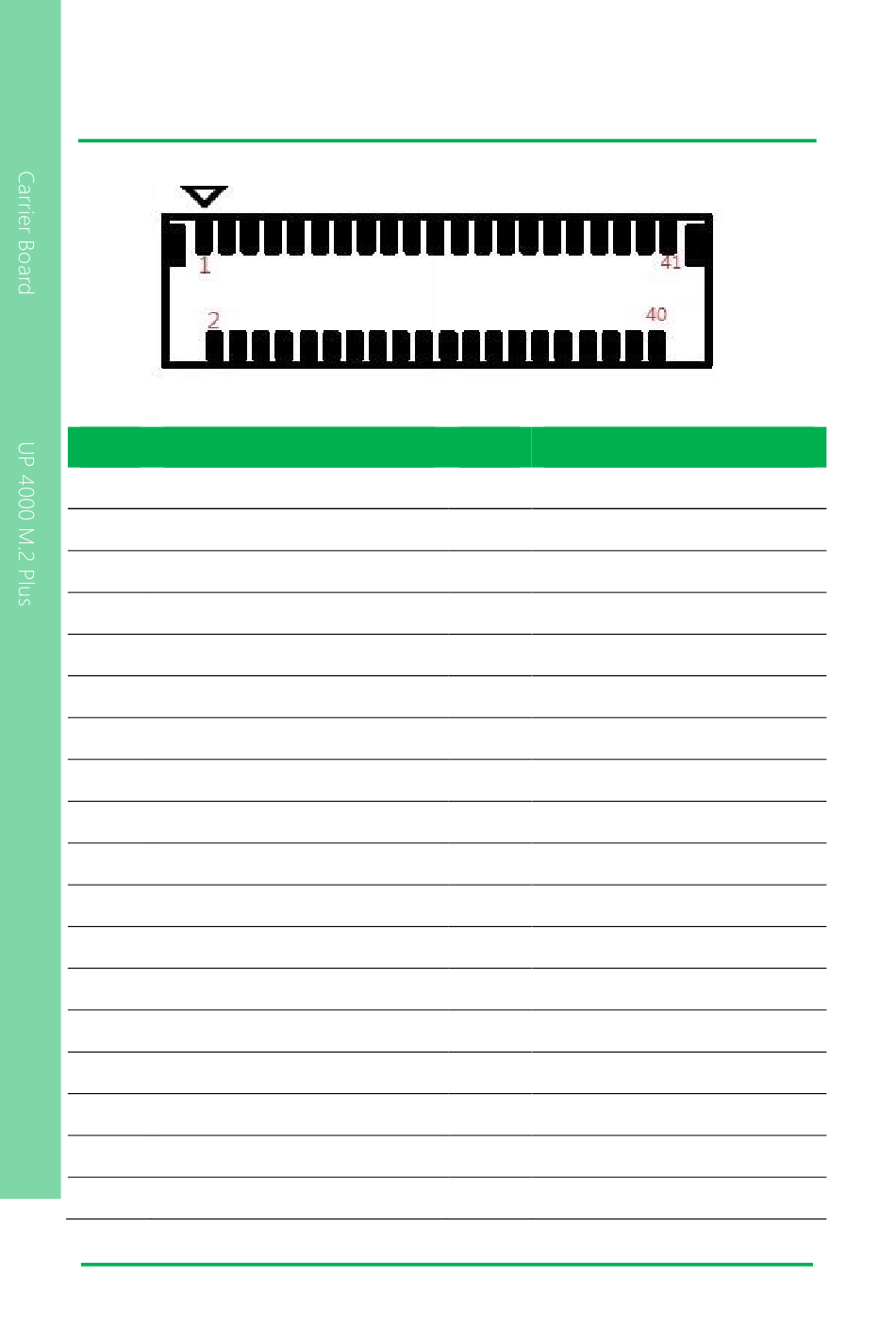

FPC/FFC Connector (CN1)
Pin
Signal Description
1
GND
3
NC
5
NC
7
GND
9
NC
11
NC
13
GND
15
PCIE_Clock_P
17
PCIE_RXP0
19
GND
21
PCIE_TXP0
23
PCIe Wake(1.8V)
25
SMBus ALERT
27
SMBus Data
29
Sleep S3(3.3V)
31
GND
33
+1.8V
35
+12V
Chapter 2 – Hardware Information
Pin
Signal Description
2
NC
4
GND
6
NC
8
NC
10
GND
12
NC
14
PCIE_Clock_N
16
GND
18
PCIE_RXN0
20
PCIE_TXN0
22
GND
24
Suspend clock
26
SMBus Clock
28
Platform reset
30
Sleep S0(3.3V)
32
+1.8V
34
+12V
36
+12V
15
