2.4.4

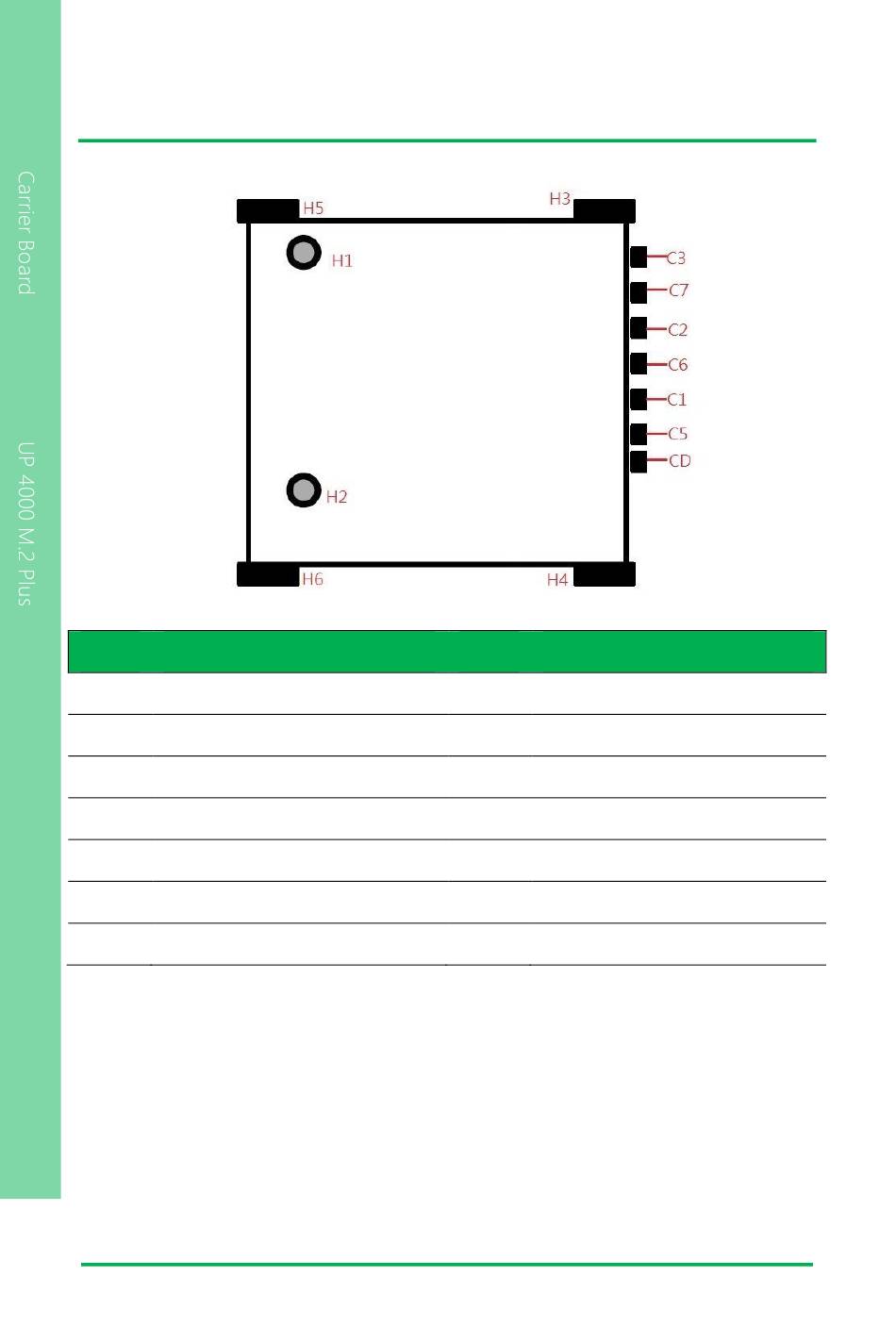

Nano SIM Card Socket (U2)

Pin
Signal Description
C1
UIM_POWER
C3
UIM_Clock
C6
NC
CD
SIM_DETECT
H2
GND_UIM
H4
GND_UIM
H6
GND_UIM
Chapter 2 – Hardware Information
Pin
Signal Description
C2
UIM_Reset
C5
GND_UIM
C7
UIM_Data
H1
GND_UIM
H3
GND_UIM
H5
GND_UIM
-
-
12
