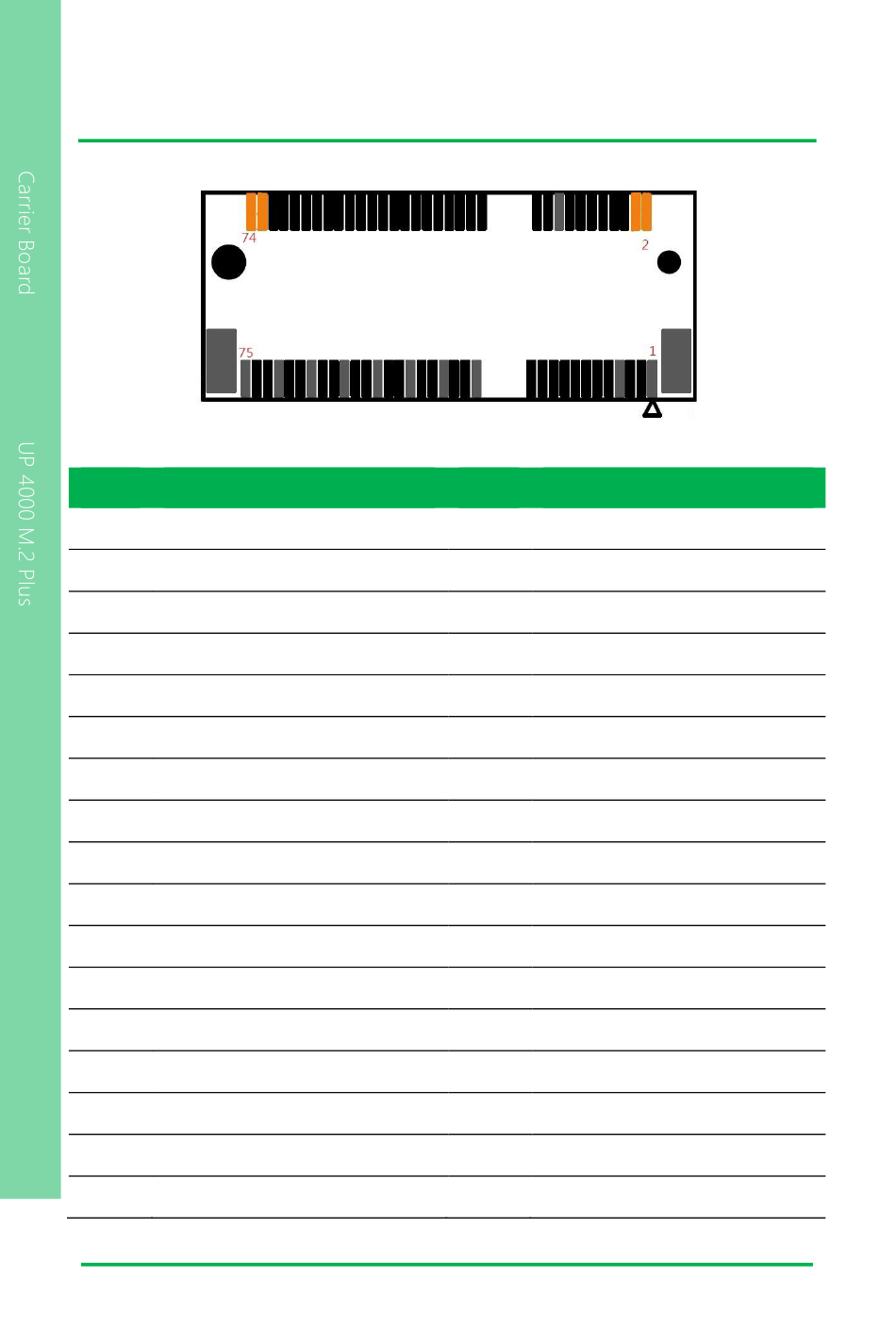

2.4.3 M.2 E-Key (CN5)
Pin Signal Description
1 GND
3 NC
5 NC
7 GND
9 NC
11 NC
13 NC
15 NC
17 NC
19 NC
21 NC
23 NC
33 GND
35 PCIE_TXP
37 PCIE_ TXN
39 GND
41 PCIE_RXP
Chapter 2 – Hardware Information
Pin Signal Description
2 +3.3V
4 +3.3V
6 NC
8 NC
10 NC
12 NC
14 NC
16 NC
18 GND
20 NC
22 NC
32 NC
34 NC
36 NC
38 NC
40 NC
42 NC
10
