2.6

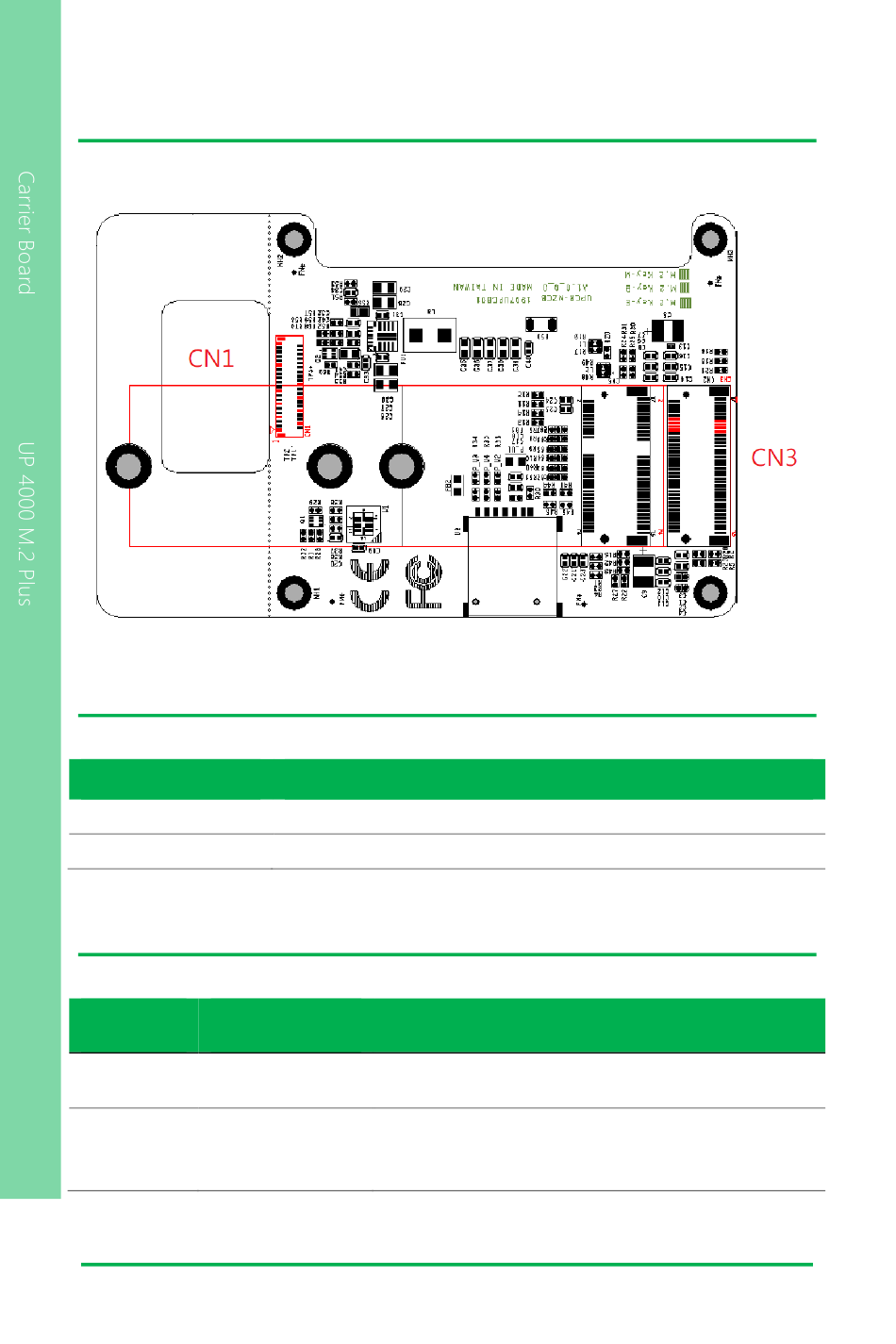

UP-APL03-A10-0002 (M.2 M-Key) Jumpers and Connectors

2.7

UP-APL03-A10-0002(M.2 M-Key) List of Jumpers and Connectors

Label
CN1
CN3
2.8

UP-APL03-A10-0002(M.2 M-Key) Connector Index

Reference Functional
Designation Description
CN1 FPC/FFC Conn
CN3 M.2 M-Key
Chapter 2 – Hardware Information
Functional Description
FPC/FFC Connector
M.2 M-Key
Connector Type
(TF)FPC/FFC Conn.41P .90D(F).SMD.0.6mm.Hirose
.FH35C-41S-0.3SHW(50)
(TF)M.2 Key-M Slot.75P .90D(F).Standard
type.BLACK.SMD.H=8.5mm
conn.FOXCONN.2E0BC21-S85BM-7H
14
