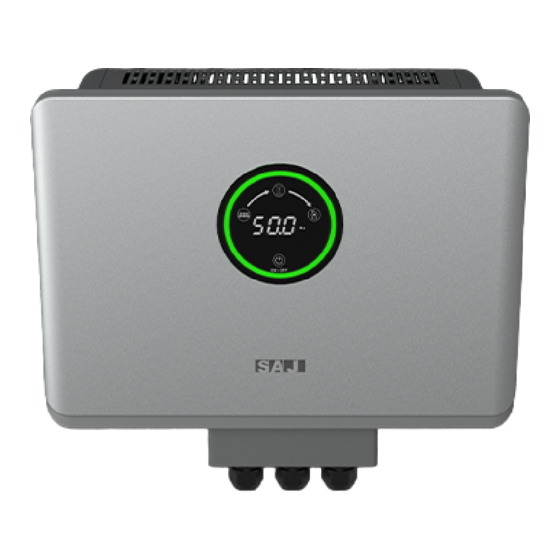

PDS51 Solar Pump Controller
User Manual
- 0 -
Data Code：30301509 PDS51-E-V01-2205

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDS51 and is the answer not in the manual?

Questions and answers

Related Manuals for SAJ PDS51

Summary of Contents for SAJ PDS51

  • Page 1 PDS51 Series PDS51 Solar Pump Controller User Manual - 0 - Data Code：30301509 PDS51-E-V01-2205...
  • Page 2 PDS51 Series Preface Thank you for choosing PDS51 solar pump controller. This manual provides you with relevant operating instructions and detailed explanations of parameters. Please read this manual carefully before installation, operation, maintenance or inspection. Before using, be sure to confirm whether the wiring is correct and whether the rotation direction of the pump is correct.

  • Page 3: Table Of Contents

    PDS51 Series Contents CHAPTER 1 SYSTEM INTRODUCTION ........ - 6 - ....................- 6 - 1.1 S YSTEM VERVIEW ..................- 7 - 1.2 S YSTEM OMBINATION ....................- 7 - 1.3 S YSTEM UNCTION CHAPTER 2 PRODUCT INFORMATION ....... - 9 - ......................
  • Page 4 PDS51 Series CHAPTER 5 PARAMETERS LIST ..........- 27 - CHAPTER 6 DIAGNOSE AND TROUBLESHOOTING ..- 37 - ..................... - 37 - 6.1 E RROR ODES ........... - 40 - 6.2 T ROUBLESHOOTING AND OUNTERMEASURES CHAPTER 7 RECOMMENDED PV PANEL CONFIGURATION- 42 - ............
  • Page 5 PDS51 Series Safety Precaution ■Arrival Inspection ◎If the controller is damaged or parts are missing, do not install or operate it. Otherwise it may result in equipment damage or personal injury. ■Installation ◎ When installing and moving, please hold the bottom of the product, not just the casing, to prevent injury or damage to the controller.
  • Page 6 PDS51 Series ■Running ◎ The controller can be powered on after the wiring is completed and the cover is installed. It is strictly forbidden to remove the cover when the power is on, otherwise it may cause electric shock. ◎The water pump must be installed before testing the steering of the water pump. The water pump should not be allowed to do dry run for a long time.

  • Page 7: Chapter 1 System Introduction

    Figure 1-1-1 shows a typical PDS51 solar water pump system. The main parts and components of the system are listed after Figure 1-1-1.

  • Page 8: System Combination

    Diagnosse and Troubleshooting chapter. ■ Soft Start of Motor Typically, the PDS51 solar pump controller will run when there is a demand for water and electricity is available. Every time the PDS51 solar pump controller detects a water - 7 -...
  • Page 9 ■ Overheat Monitoring The PDS51 solar pump controller can also run at full power when the ambient temperature reaches 45°C. At temperatures above 45°C, the controller reduces the carrier frequency （switching frequency of IGBT）and maintains operation as much as possible.

  • Page 10: Chapter 2 Product Information

    Note: The PDS51 solar pump controller is an integral part of the PDS51 solar water pump system, which has two other optional components, the solar arrays and the water pump.

  • Page 11: Protect Functions

    We have optimized the pumping function of the PDS51 solar water pump system under the condition of poor solar array input power supply as follows:Internal diagnostics allow for lower input voltages.Whenever possible, the controller will maximize the output of the...

  • Page 12: Model Description

    PDS51 Series 2.4 Model Description PDS51 - 4 T 5R5 ① ② ③ ④ ⑤ Item Content Description Solar Pump Drive Series 5: IP65, 1: 1 generation Pump Rated Voltage 2: 220V 3 phase, 4: 380V 3 phase Voltage Range of...
  • Page 13 PDS51 Series 3 phase 220V Output Voltage(V) 3 phase 380V ±15% ±15% Output Frequency 0-50/60 (Hz) Control Performance Control Mode V/F mode & SVC(Sensorless Vector Control)mode Type of Motor Asynchronous Motor ，PMSM Overload 120% Rated Current:1 min；150% Rated Current:10 secs...

  • Page 14: Chapter 3 Mechanical And Electrical Installation

    PDS51 Series Chapter 3 Mechanical and Electrical Installation 3.1Overall Structure and Dimension Drawing（Unit：mm） Figure 3-1-1 2.2kW-11kW Outline Dimension Installation Hole Outline Dimension Dimension Size Inverter model PDS51-2S2R2-E PDS51-4T2R2-E 180.5 PDS51-4T004-E PDS51-4T5R5-E PDS51-4T7R5-E PDS51-4T011-E - 13 -...

  • Page 15: Keypad Structure And Dimension Drawing

    3.3.2 Installation Location Although the applicable working ambient temperature of the PDS51 solar pump controller can reach 60°C, in order to avoid failure caused by overheating, it is recommended to install the controller in a shaded location.
  • Page 16 PDS51 Series 3.4.3 Whole machine wall-mounted installation Figure 3-4-3-1 Hanging plate size and accessories requirements Figure 3-4-3-2 Fixed installation of hanging plate Figure 3-4-3-3 Controller hanging - 15 -...
  • Page 17 PDS51 Series Figure 3-4-3-4 Screw fixing on the side of the controller 3.4.4 Communication module installation Figure 3-4-4 Remote monitoring module installation 3.4.5 DC input side wiring Figure 3-4-5 Connecting component terminals - 16 -...

  • Page 18: Electrical Installation

    PDS51 Series 3.5 Electrical Installation 3.5.1 Wiring Ports The following is a schematic diagram of the wiring port layout. Figure 3-5-1 Main Circuit Wiring Ports Item Port Name Description Technical Features PV1+ 1st PV Panel Positive Input Port ≤20A ①...
  • Page 19 PDS51 Series R/L S T/N PE U V W +10V SO S+ Figur 3-4-2 Controller Wiring Terminals Symbol Name Technical Specifications R/L and T/N for single phase 220V input AC Input Terminals R/L and S and T/N for 3 phase 380V input...
  • Page 20 PDS51 Series It is the reference zero potential of the analog Analog GND reference voltage. Communication Port Standard CAN communication interface, please S+/S0/S- for Multi Drive System use twisted pair or shielded wire and connect S+, （CAN Protocol） S0, S- when building multi-drive system 3.5.2 DC Input Power Wiring...
  • Page 21 In order to avoid the water pump damage caused by dry running, you can connect a water well probe to the DI2 & GND terminal of the PDS51 solar pump controller to detect the level of the water well. The length of the water well probe line should not exceed 50m.
  • Page 22 PDS51 Series Controller Float Switch Signal:Normally Only this side needs groundin g if Open cable has sheilding layer Figure 3-5-5 Wirings of Float Switch 3.5.8 Electrical Conduit Usage When the system is installed outdoors, electrical conduit can be used to protect outdoor electrical wiring from weather, human activity, chewing animals.
  • Page 23 PDS51 Series Note: 1. The 2.2kW~4kW models have only a single input PV port, and the 5.5-11kW models have dual input PV ports. The panels are installed in series and parallel according to the power size, and are directly connected to the standard DC ports 2.

  • Page 24: Chapter 4 Screen Display And Operation

    PDS51 Series Chapter 4 Screen Display and Operation 4.1 Display Introduction Using the display screen, you can monitor the working status of the controller, and start & stop it. Its appearance and functional area are shown in the following figure Figure 4-1-1 Drawing of Screen 4.2 Function of Indicators and Button...

  • Page 25: Display Of Control Modes

    PDS51 Series Item Icon Name Function not in multi-drive mode; When the low level probe is installed, when the water level of Low Level the inlet pool is too low, the low level indicator will light up, Indicator and the LOU water shortage fault will be reported;...

  • Page 26: Usage Of External Keypad

    PDS51 Series Tank Full State Controller Alarm Controller Off-Screen Mode （Tank Full Indicator On） （Red Light Ring Flashes） （Start/Stop Button Flashes） 4.4 Usage of External Keypad The controller has a total of three levels of menus, which are: ① Parameter team (first level menu);...

  • Page 27: Power On And Commissioning

    PDS51 Series 4.5 Power On and Commissioning ① Check and make sure the wiring is correct. If necessary, check motor and cable insulation with a megger; ② Use a multimeter to check whether the Voc of the solar panels from the DC switch meets the requirements or not;...

  • Page 28: Chapter 5 Parameters List

    PDS51 Series Chapter 5 Parameters List ○： Indicates that the set value of this parameter can be changed when the controller is in both stop and running state. ●：Indicates that the set value of this parameter cannot be changed when the controller is running.
  • Page 29 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address 7：Terminal UP/DOWN 8：MPPT 9：RS 485 Communication 10：Multi-Drive Communication Keypad Setting F0.08 Maximum 0.00～F0.10 50.00Hz ○ 0x008 Frequency Motor Rotation 0：FWD F0.09 ○ 0x009 Direction 1：REV Maximum F0.10...
  • Page 30 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address settings,including F2 team F2 Team： Motor Parameters 0：Ordinary 3 Phase Asynchronous Motor（AM） F2.00 Type of Motor 1：3 Phase Permanent Magnet ● 0x200 Synchronous Motor（PMSM） 2：Single Phase Motor Motor Rated F2.01...
  • Page 31 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address motors which cannot be totally removed from its load F5 Team： Function of DI Terminals F5.00 DI1 Function 0：No Option ● 0x500 1：FWD Running（FWD） F5.01 DI2 Function ●...
  • Page 32 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address 0: off 1: On Select 1 to 5 to enable automatic fault reset operation. When there is a fault during operation, the fault will be reset...
  • Page 33 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address connected at the same time, real-time power complementation ensures maximum power output; 0：Single Drive Mode FD.02 System Mode ● 0xD01 1：Multi Drive Mode Host and 0：Host Auxiliary FD.03...
  • Page 34 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address Water shortage FD.15 detection 0.0% ～ 100.0% 90.00% ○ 0xD0E frequency Software Dry Run Detection 0.0% ～ 100.0% （*Motor FD.16 40.00% ○ 0xD0F Current Rated Current）...
  • Page 35 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address proportional gain coefficient Boost module voltage loop FD.30 1~1000 0xD1D ☆ integral coefficient Voltage loop integral FD.31 desaturation 1~1000 0xD1E ☆ coefficient of boost module FE Team： User Preference ○...
  • Page 36 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address 14：IGBT overheat（E14） 15：External alarm input （E15） 16：Communication failure （E16） 17：Snubber relay failure （E17） 18：Current detection failure （E18） 19： Motor tuning failure （ E19） 21：Parameter R/W failure （E21）...
  • Page 37 PDS51 Series Communi Default Fea- Parameter Name Setting Range Remarks -cation Value ture Address latest error ◎ Controller state E0.07 0xE007 － － － ◎ at latest error ◎ E0.08 Reserved 0xE008 － － － ◎ E0.09 Reserved 0xE009 －...

  • Page 38: Chapter 6 Diagnose And Troubleshooting

    PDS51 Series Chapter 6 Diagnose and Troubleshooting Even in bad weather conditions, the PDS51 solar pump controller will try to drive the water pump to lift water. To ensure reliable service life, system components must be protected from factors that can damage equipment. When severe conditions arise, the controller reduces output if necessary, continues to pump water as long as possible, and shuts down in extreme conditions.
  • Page 39 PDS51 Series Code Description Possible Causes Solutions No braking unit and Install braking unit and braking resistor braking resistor installed Overvoltage at Input voltage is too high Adjust input voltage to a proper range constant speed The input voltage is not...
  • Page 40 PDS51 Series Code Description Possible Causes Solutions The upper host machine Check the wirings between upper host is abnormal and controller RS485 communication Communication Check the communication wires wire is abnormal failure Incorrect settings of Correctly set communication parameters communication...

  • Page 41: Troubleshooting And Countermeasures

    PDS51 Series Code Description Possible Causes Solutions The low water level probe （or float switch） Well low level Check if the well is short of water terminals of the water alarm inlet is losed ,connecting DI2 and GND terminals The high water level...
  • Page 42 PDS51 Series Item Phenomenon Possible Causes Solutions Improper carrier frequency Properly increase the carrier frequency Leakage switch installed or Replace a switch without leakage the airbreak switch is protection or replace the airbreak switch overloading with a larger capacity Switch...

  • Page 43: Chapter 7 Recommended Pv Panel Configuration

    PDS51 Series Chapter 7 Recommended PV Panel Configuration 34±1V 42±1V 42±1V 50±1V Controller Model Pump Rated Power Panel Panel Quantity Quantity Power Power PDS51-2S2R2-E 3 phase 220V/2.2kW 360W 450W PDS51-4T2R2-E 3 phase 380V/2.2kW 360W 450W PDS51-4T004-E 3 phase 380V/4kW 360W...

  • Page 44: Chapter 8 Warranty Policy

    1. Product model No.(e.g. PDS51-2S2R2) and serial No. (e.g.C121661B280H000292YA). 2. Copy of the invoice and warranty certificate of the controller.
  • Page 45 PDS51 Series transferred to the replacement device. You will not receive a new certificate, as your entitlement is documented at pump controller manufacturer. If the pump controller needs to be replaced following assessment, manufacture will send a replacement unit immediately. The defective pump controller should be sent back to the closest manufacture service center by packing in its original package if possible.

  • Page 46: Chapter 9 Product Warranty Card

    PDS51 Series Chapter 9 Product warranty Card Company name: Company address: Customer info. Contact: Tel.: Fax: Zip code: Product model: SN code: Product Buying date: Fault date: info. Motor power: Application situation: Fault description: Fault info. Signature: Date: - 45 -...
