1/18th SCALE READY-TO-RUN
AXI01002

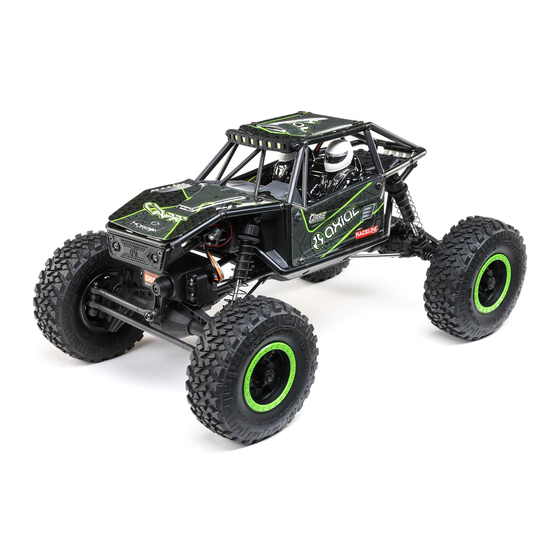

UTB18™ Capra™
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby axial UTB18 Capra
Summary of Contents for Horizon Hobby axial UTB18 Capra
- Page 1 1/18th SCALE READY-TO-RUN AXI01002 UTB18™ Capra™ INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
-
Page 2: Table Of Contents
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Water-Resistant Vehicle With Waterproof Electronics
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if it a combination of waterproof and water-resistant components to has not been certified as water-resistant or waterproof. If the motor allow you to operate the product in many “wet conditions,”... -
Page 4: Box Contents
BOX CONTENTS • Spektrum SLT2 2 Channel 2.4GHz Transmitter (SPMRSLT200F) ™ - (4) AA Alkaline batteries • Capra UTB18 RTR ™ - Tazer 37-Turn 380 Brushed Motor (DYNS1208) - 2 in 1 Brushed ESC and SLT Receiver (SPMXSE2525RX) - Servo (SPMS651) - 7.4V 650mAh 2S 20C LiPo, Hard (DYNB65021H2) •... -
Page 5: Vehicle Parts
VEHICLE PARTS Steering Servo Steering Tie rod Steering Knuckle C-Hub ESC Plug Front Hood Clip Battery Retainer Spur/Pinion (under cover) Battery Tray Driveshaft Transmission Motor Receiver Tray Lower 4-link Bar Shock Absorber Upper 4-link Bar Differential (inside axle housing) -
Page 6: Install The Transmitter Batteries
INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries. 1. Remove the battery cover from the transmitter. 2. Install the included AA batteries as shown. 3. Install the battery cover. CAUTION: NEVER remove the transmitter batteries while the model is powered on. Loss of model control, damage, or injury may occur. -
Page 7: Install The Vehicle Battery
INSTALL THE VEHICLE BATTERY Power 1. Power on the transmitter. 2. Press up on the hood from behind the front bumper to release the hood latch. Raise the hood. 3. Connect the battery to the ESC. 4. Place the battery in the battery tray. 5. -
Page 8: Range-Checking The Radio System
RANGE-CHECKING THE RADIO SYSTEM The radio system should be checked before operating the vehicle to ensure proper operation and adequate range. 1. Turn on the transmitter. 2. Connect the battery in the vehicle. 3. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts. 4. -
Page 9: In 1 Brushed Esc And Slt Receiver
2 IN 1 BRUSHED ESC AND SLT RECEIVER Steering servo/ Light port Battery bind port Motor ESC/ Receiver Black OFF ON Receiver switch Jumper pins SPECIFICATIONS Jumper pins define the mode Type 2 in 1 Brushed ESC with integrated SLT receiver and battery type settings as Constant/Peak 25A/100A shown below. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Your transmitter and receiver are too Move transmitter 8 to 12 feet away from receiver close together You are near metal objects Move to an area with less metal The receiver is bound to a different Make sure the correct model memory is active in your The system will not connect model memory... -
Page 11: Limited Warranty
What this Warranty Covers submit a Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials speak with a Product Support representative. -
Page 12: Fcc Information
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION EU COMPLIANCE STATEMENT: Axial Capra UTB18. SLT2 4WD RTR (AXI01002) EU Manufacturer of Record: Hereby, Horizon Hobby, LLC declares that the device is in Horizon Hobby, LLC compliance with the following: Low Voltage Directive (LVD) 2014/35/ 2904 Research Road... -
Page 13: Exploded Views
UTB18™ Capra™ AXI01002 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS KAROSSERIE CHÂSSIS TELAIO AXI235097 AXI11000 AXI235098 AXI235097 AXI210001 AXI210001 AXI235097 AXI211001 - Black AXI211003 - Grey AXI211001 - Black AXI211003 - Grey AXI211002... - Page 14 UTB18™ Capra™ AXI01002 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE FRONT AXLE VORDERACHSE ESSIEU AVANT ASSALE ANTERIORE...
- Page 15 UTB18™ Capra™ AXI01002 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE REAR AXLE HINTERACHSE ESSIEU ARRIÈRE ASSALE POSTERIORE...
- Page 16 UTB18™ Capra™ AXI01002 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE TRANSMISSION GETRIEBE TRANSMISSION TRASMISSIONE DYNS1208 AXI235098 AXI235016 AXI235013 AXI212002 AXI235099 LOSB3008 AXI237041 AXI212008 AXI212008 AXI212008 AXI237003 AXI212016 AXI212006 AXI212006 AXI212008 AXI212008 AXI237003 AXI212006 AXI237003 AXI237041 AXI212008 AXI213002 AXI212002 AXI235109 AXI213004...
-
Page 17: Parts Lists
PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione AR721322 Rundkopfschraube AR721322 Vis à tête bombée 3 x 22 mm ARAC9845 AR721322 Btn Hd Scr 3x22mm(10) AR721322 Vit tst tnda 3x22mm(10) 3 x 22 mm (10) (10) LED-Leuchten (4)/Leuchtbalken: (4) éclairages/barre d'éclairage à... -
Page 18: Electronics
Part # Description Beschreibung Description Descrizione AXI237041 2x5x2.5mm Ball Bearing (2) 2 x 5 x 2,5 mm Kugellager (2) Roulement à billes 2 x 5 x 2,5 mm (2) Cuscinetti sfera 2x5x2,5 mm (2) AXI41001 3.6"" Nitto Trail Grapler M/T(2) 3,6"" Nitto Trail Grapler M/T(2) 3,6 Nitto Trail Grappler M/T (2) 3.6"... - Page 19 ©2022 Horizon Hobby, LLC. Axial, the Axial logo, SCX-10, SLT2, IC3, EC3, Passport, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
