Micasa FlexCube Assembly Instructions Manual
Hide thumbs Also See for FlexCube:

Advertisement

Quick Links

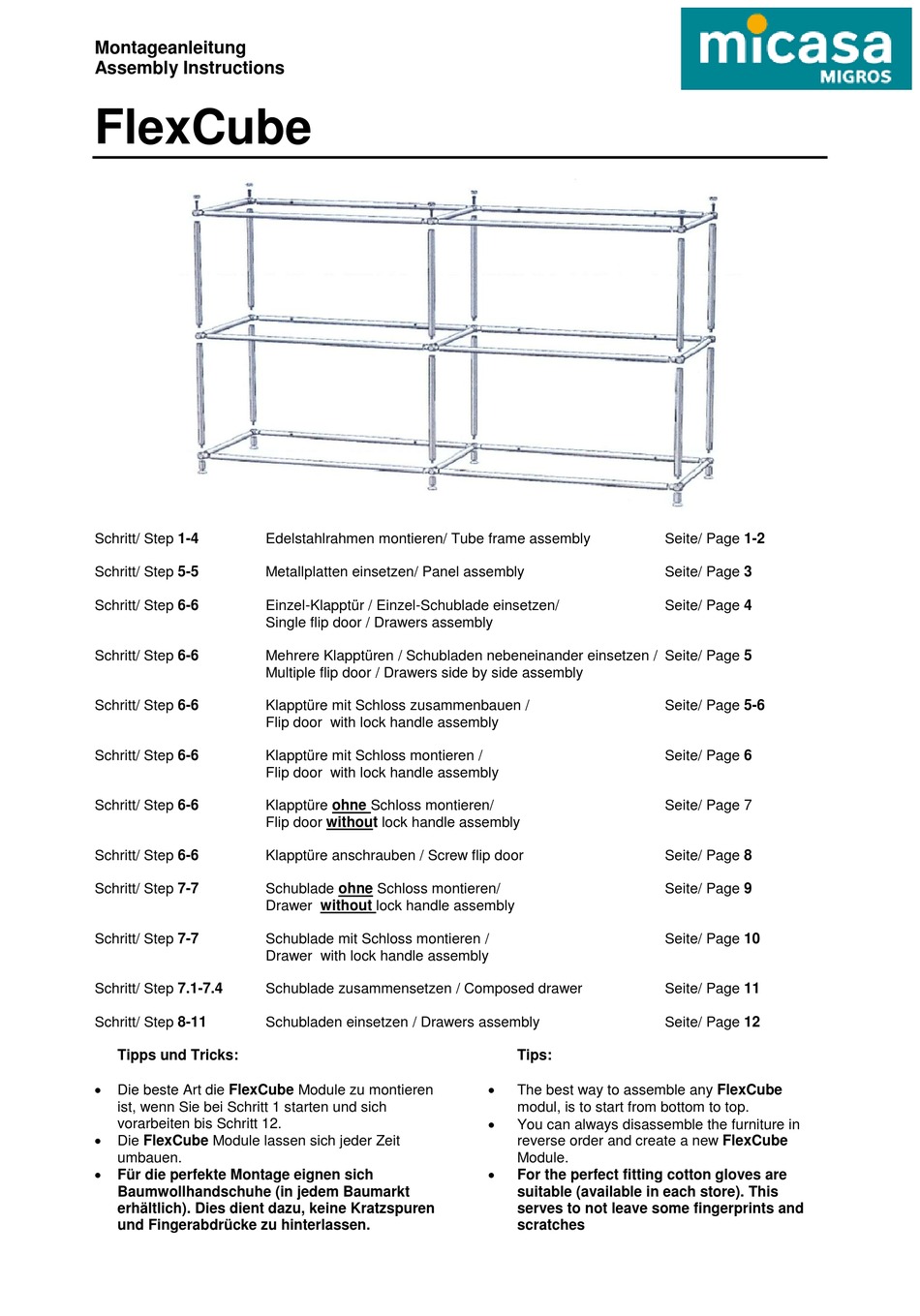

Montageanleitung
Assembly Instructions
FlexCube
Schritt/ Step 1-4

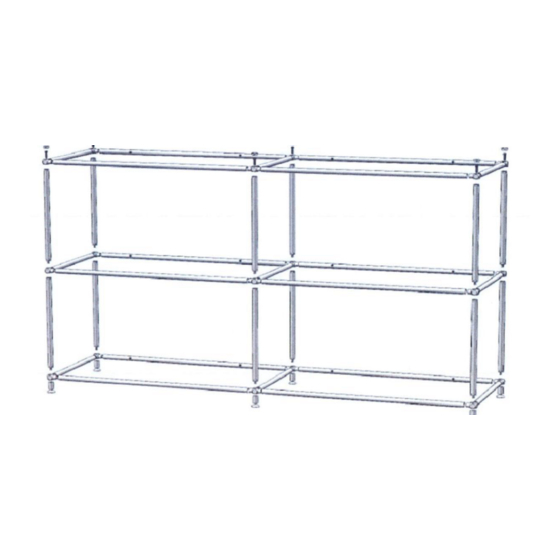

Edelstahlrahmen montieren/ Tube frame assembly
Schritt/ Step 5-5
Metallplatten einsetzen/ Panel assembly
Schritt/ Step 6-6
Einzel-Klapptür / Einzel-Schublade einsetzen/
Single flip door / Drawers assembly
Schritt/ Step 6-6
Mehrere Klapptüren / Schubladen nebeneinander einsetzen / Seite/ Page 5
Multiple flip door / Drawers side by side assembly
Schritt/ Step 6-6
Klapptüre mit Schloss zusammenbauen /
Flip door with lock handle assembly
Schritt/ Step 6-6
Klapptüre mit Schloss montieren /
Flip door with lock handle assembly
Schritt/ Step 6-6
Klapptüre ohne Schloss montieren/
Flip door without lock handle assembly
Schritt/ Step 6-6
Klapptüre anschrauben / Screw flip door
Schritt/ Step 7-7
Schublade ohne Schloss montieren/
Drawer without lock handle assembly
Schritt/ Step 7-7
Schublade mit Schloss montieren /
Drawer with lock handle assembly
Schritt/ Step 7.1-7.4
Schublade zusammensetzen / Composed drawer
Schritt/ Step 8-11
Schubladen einsetzen / Drawers assembly
Tipps und Tricks:
Die beste Art die FlexCube Module zu montieren
ist, wenn Sie bei Schritt 1 starten und sich
vorarbeiten bis Schritt 12.
Die FlexCube Module lassen sich jeder Zeit
umbauen.
Für die perfekte Montage eignen sich
Baumwollhandschuhe (in jedem Baumarkt
erhältlich). Dies dient dazu, keine Kratzspuren
und Fingerabdrücke zu hinterlassen.
Tips:
The best way to assemble any FlexCube
modul, is to start from bottom to top.
You can always disassemble the furniture in
reverse order and create a new FlexCube
Module.
For the perfect fitting cotton gloves are
suitable (available in each store). This
serves to not leave some fingerprints and
scratches
Seite/ Page 1-2
Seite/ Page 3
Seite/ Page 4
Seite/ Page 5-6
Seite/ Page 6
Seite/ Page 7
Seite/ Page 8
Seite/ Page 9
Seite/ Page 10
Seite/ Page 11
Seite/ Page 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the FlexCube and is the answer not in the manual?

Questions and answers

Summary of Contents for Micasa FlexCube

  • Page 1 Seite/ Page 12 Tipps und Tricks: Tips:   Die beste Art die FlexCube Module zu montieren The best way to assemble any FlexCube ist, wenn Sie bei Schritt 1 starten und sich modul, is to start from bottom to top. ...
  • Page 2 Montageanleitung Assembly Instructions Edelstahlrahmen montieren / Tube frame assembly  Die horizontalen Edelstahlrohre müssen mit den Löchern gegen innen gerichtet den Konnektoren zusammenstecken. Konnektor mit zwei Applikatoren K2 ist für die Ecken. Der Konnektor mit drei Applikatoren K3 ist für das aneinanderketten der Fächer. Die Applikatoren müssen wie auf dem Bild markiert nach innen gerichtet sein.
  • Page 3 Montageanleitung Assembly Instructions Edelstahlrahmen montieren / Tube frame assembly  Wenn Sie keine weiteren Verlängerungen haben, ziehen Sie bitte die Sechskantschrauben an und fügen Sie oben die Endkappen ein (wie unten abgebildet). Only if not extended. Tighten hexagon screws and add end caps. ...
  • Page 4 Montageanleitung Assembly Instructions Metallplatten einsetzen / Panel assembly  Drücken Sie den unteren Teil der Metallplatten zuerst in den Edelstahlrahmen. Danach die Schrauben in den horizontalen Edelstahlrahmen festschrauben (wie unten abgebildet). Press one side corner into the frame and then others, pat the corner in one by one. Insert supporting screws for 750 floor panels by screwdriver into horizontal tube.
  • Page 5 Montageanleitung Assembly Instructions Einzel-Klapptür / Einzel-Schublade einsetzen / Singles flip door / Drawer assembly  Lösen Sie die Schrauben, entfernen Sie Einsteckplatte kann nur in Kombination mit die Abdeckkappe auf der Einsteckplatte Mitteltafel montiert werden. Ziehen Sie oder Mitteltafel. nun die Schrauben an. Loosen the screws, move away the cover Insert panel can only be mounted in cap.
  • Page 6 Montageanleitung Assembly Instructions Mehrere Klapptüren / Schubladen nebeneinander einsetzen / Multiple flip door / drawers side by side assembly    Wenn mehrere Schubladen oder Pat the middle panel in, to cover the insert Klapptüren nebeneinander sind, müssen die panel.
  • Page 7 Montageanleitung Assembly Instructions Klapptüre mit Schloss montieren / Flip door with lock handle assembly    Setzen Sie die Einzelteile so wie auf dem Disassemble the lock set and fix to the Bild aufgeführt zusammen, um die right position. Mount front handle with lock Verriegelung richtig zu montieren.
  • Page 8 Montageanleitung Assembly Instructions Klapptüre ohne Schloss montieren / Flip door without lock handle assembly    Drehen Sie bei dem Verschluss beide Ringe raus. Turn out the both rings from the closure.   Stecken Sie den Verschluss in die Öffnung der Insert the lock into the hole of the metal plate ...
  • Page 9 Montageanleitung Assembly Instructions Klapptüre anschrauben / Screw flip door   Drehen Sie die Schrauben in das Scharnier H ein (siehe Seite 5). Nicht zu fest anschrauben. Schliessen Sie die Klapptüre und überprüfen Sie, ob diese gerade ist. Schrauben Sie nun wie unten abgebildet die Schrauben fest.
  • Page 10 Montageanleitung Assembly Instructions Schublade ohne Schloss montieren / Drawer without lock handle assembly    Turn out the both rings from the closure. Drehen Sie bei dem Verschluss beide Ringe raus.   Insert the lock into the hole of the metal plate Stecken Sie den Verschluss in die Öffnung der ...
  • Page 11 Montageanleitung Assembly Instructions Schublade mit Schloss montieren / Drawer with lock handle assembly    Montieren Sie das Mount the lock set to the Steckschloss-Set auf der drawer front according to the Front der Metallplatte (siehe assembly instructions. Abbildung). ...
  • Page 12 Montageanleitung Assembly Instructions Schublade zusammensetzen / Composed drawer   7.1 Rasten Sie die Seiten rechts und links ein. 7.1 Buckle side left & right to the bottom.  7.2 Schrauben Sie nun die Schublade fest.  7.2 Screw on drawer back ...
  • Page 13 Montageanleitung Assembly Instructions Schublade einsetzen / Drawer assembly  Schieben Sie die Schublade bis es einklickt in die Schienen (wie unten abgebildet).  Push in drawer, adjust in tube frame so that it is even.  Schrauben Sie die Schublade wie unten abgebildet auf der Innenseite fest. ...
