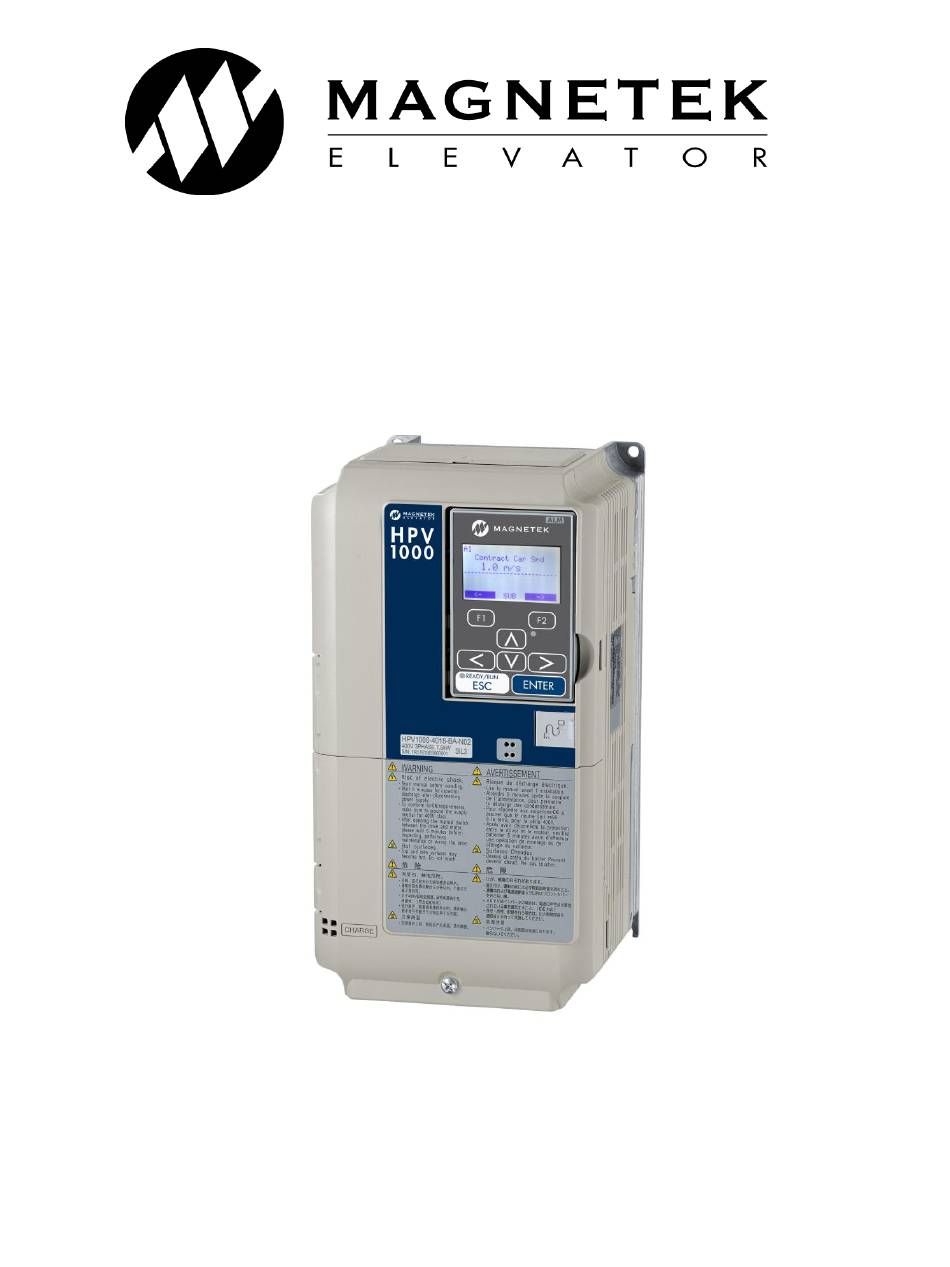

- Page 1 HPV1000-App_Note_27 Closed Loop Start Guide (Using the JVOP180 Keypad) Guide to set up HPV1000 drive in Closed Loop Vf Control HPV1000-App_Note_27...
- Page 2 HPV1000-App_Note_27 Closed Loop Start Guide NOTE: This quick start-up guide just outlines the general parameters that should be changed / verified when a drive is installed with information that are readily available. The drive will not run if only these parameters are set. Because different controller manufacturers have different interfaces, it is recommended that the parameters in the drive be set to what is recommended by the elevator controller in their technical manual.
- Page 3 HPV1000-App_Note_27 Closed Loop Start Guide Encoder Wiring 3) The encoder should be wired to the drive as follows: Table 1 CL: PG-X3 Encoder connections • IP is the +VDC, and IG as the common. • The encoder voltage is selected via the jumper CN3 as either 5.5V or 12V •...
- Page 4 HPV1000-App_Note_27 Closed Loop Start Guide Encoder Set-up 6) Verify the encoder has been selected and installed in accordance with the following: Electrical interference and mechanical speed modulations are common problems that can result in improper speed feedback getting to the drive. To help avoid these common problems, the following electrical and mechanical considerations are suggested.
- Page 5 HPV1000-App_Note_27 Closed Loop Start Guide Using your inspection controls, PRESS AND HOLD the buttons to run the lift in the UP DIRECTION (the lift will not move, however the tune will begin) If the drive has control of the motor contactors they will now pull in and the tune will begin.
- Page 6 HPV1000-App_Note_27 Closed Loop Start Guide Parameter Description Default Units Suggested Adjustment Determines the maximum torque allowed when in the motoring direction. This parameter sets the maximum This is generally left at the default MTR TORQUE LIMIT motoring torque the drive will produce in 200.0 setting.
- Page 7 HPV1000-App_Note_27 Closed Loop Start Guide Basics Parameter Description Default Choices Suggested Adjustment Set to Closed Loop Vect (Note: not “PM V/f Control DRIVE MODE ClosedLoop Vct”!) to run in Closed Loop mode. Closed Open Loop Vector A1-02 Drive operation Loop Vect Closed Loop Vector Can be set to Open Loop Vect to run without PM ClosedLoop Vct...
