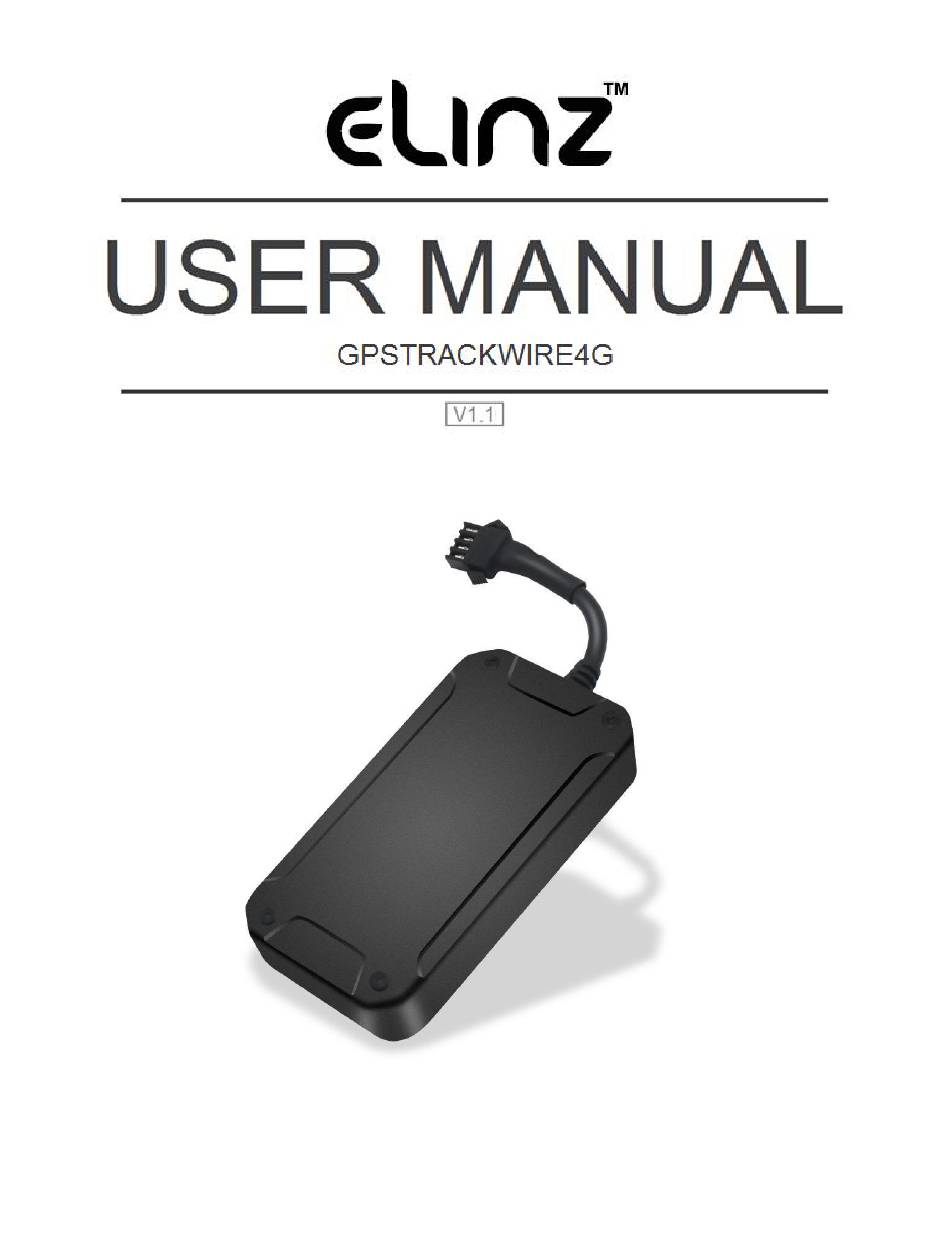

- Page 1 Page | 1...
-
Page 2: General Information

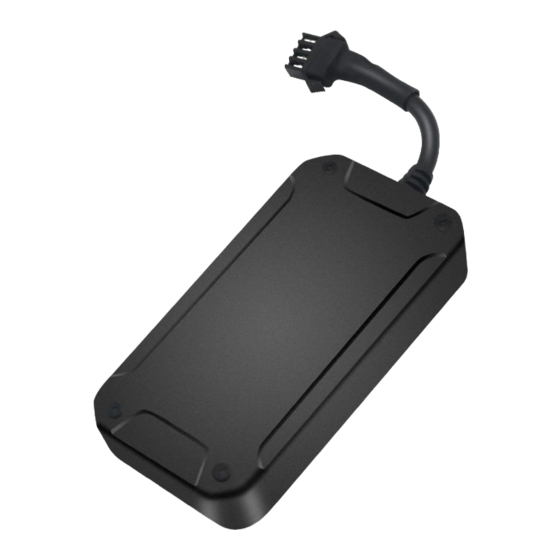

GENERAL INFORMATION GPSTRACKWIRE4G is a wired GPS/aGPS dual positioning tracker that is designed to transmit its location at intervals of your choice. It also contains LBS (Land Based System) to give approximate location based on mobile phone cell sites if, for some reason there is no satellite GPS reception. -
Page 3: Sim Card Installation
SIM CARD INSTALLATION Before installing, please test the SIM card in a mobile phone before inserting into the tracker to ensure it is working. Can it send/receive texts, phone calls and get onto the internet? Has it sufficient credit if Pre-Paid type? 1. -
Page 4: Wiring Diagram
WIRING DIAGRAM WIRING LABELS RED Wire to Positive (+VE) Black Wire to Ground (-VE) ORANGE Wire to ACC GREEN Wires to Fuel Pump Positive Supply (+VE) Optional A Relay is included in the package but using this relay is optional. The tracking functions of this device would work properly without using the relay but if you wish to disable your vehicle remotely it must be connected like in the diagram above. -
Page 5: Getting Started
GETTING STARTED 1. Set admin number The tracker needs to know your mobile phone number so it can communicate with you. Send this text message from your phone to the trackers SIM number; admin123456<space>your mobile number starting with country code. Example: admin123456 +61409999999 2. -
Page 6: Download The Mobile App
DOWNLOAD THE MOBILE APP Open Google Play Store or Apple App Store and search for LKGPS2 and download the Android or IOS APP. Or scan the QR Code below. The mobile APP gives you full control of the trackers features as well as showing real time location and historical travel. -
Page 7: App Tracking
APP TRACKING WEBSITE TRACKING Visit www.lkgps.net and log onto to the website as you would for the mobile APP. The website stores all the location data. Travel is more detailed with engine start times, stop times etc. Reports can be saved and printed. If you have more than one tracker, contact us to request a username account and your own password that allows you to monitor and tracker all devices. -
Page 8: Sms Tracking
SMS TRACKING not using the APP If you are or website or are you are using a mobile phone without the APP, you can still find a trackers location by simply texting the tracker to request location: Send this text message: where or G123456# You will receive a text reply. -
Page 9: Specifications
-40°C to +85°C Operation Temp: -20°C to +55°C Humidity: 5%--95% non-condensing For questions, support, or warranty claims feel free to contact us at 1300 881 773, send us an email at sales@elinz.com.au or chat with us. www.elinz.com.au Page | 9...
