Summary of Contents for Elinz GPSTRACKWIRELESS

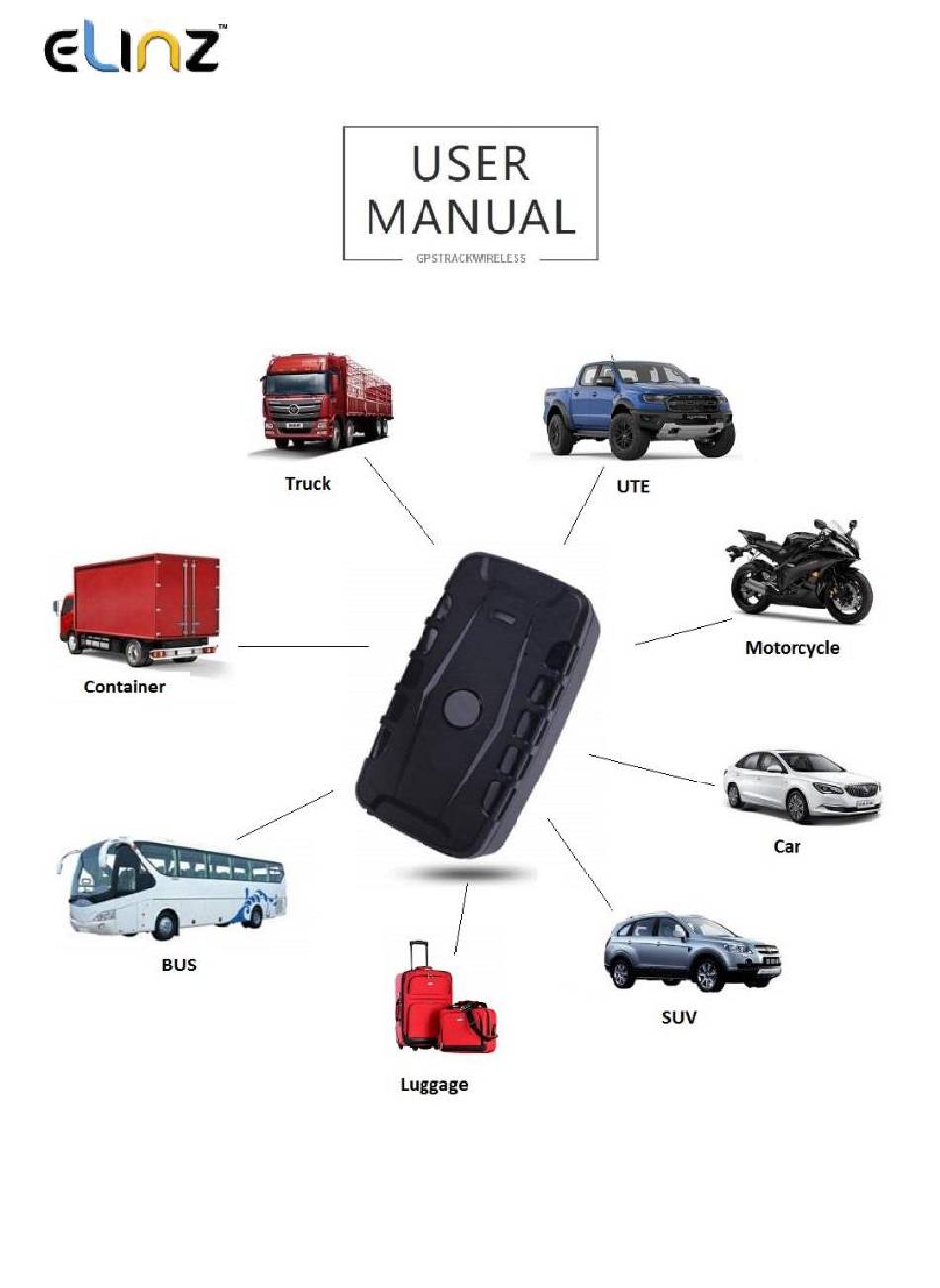

  • Page 1 / sales@elinz.com.au / 1300 881 773...
  • Page 2: General Information

    GENERAL INFORMATION The GPSTRACKWIRELESS is a battery-operated GPS/AGPS dual positioning tracker that is designed to transmit its location at intervals of your choice. It also contains LBS (Land Based System) to give approximate location based on mobile phone cell sites if, for some reason there is no satellite GPS reception.
  • Page 3: Getting Started

    LEDs should start to flash. Reminder, the tracker must be outdoors or very close to a window/door to receive GPS signals. Once signals are acquired, it can be initialized as detailed on the following pages. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 4 The magnets allow attachment to most suitable flat metal surfaces. When setting up the tracker or testing its features you can cover the optical tamper with say black tape to prevent unwanted alerts www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 5 Open and login into the mobile APP and if there is a message at the top of the screen ‘not enabled’, this means that the website has not received any data from the tracker. One reason may be the APN needs to be set. Contact your SIM card provider for the correct APN. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 6: Download The Mobile App

    The mobile APP gives you full control of the trackers features as well as showing real time location and historical travel. The APP can only be used on Apple or Android smartphones and tablets. Not compatible with Windows Smart Phones. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 7 For multiple user please select “Log in by Username” in the bottom right corner of the screen. Note: For Multiple user please email us at sales@elinz.com.au, contact us at 1300 881 773 or chat with us so we can create username and default password for you.
  • Page 8: Start Tracking

    Change the password on Password the app Logout Logout FORGOT APP PASSWORD? Please email us at sales@elinz.com.au, contact us at 1300 881 773 or chat with us so we can reset the password for you. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 9 You will receive a text reply . Tap the blue link ‘to view’ portion of the text message and the mobile phones own maps open to show the location. If you require a status update as well as the link, send tis text: G123456 www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 10: Device Info

    There are two ways to set the upload frequency; 1. Send this text message upload123456 30 (upload every 30 seconds when moving) 2. Use the APP: ‘Issue command’ – ‘Send via GPRS’ – ‘Common’ – Select ‘Upload frequency’ www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 11: Photo Electric Switch

    NOTE: The tracker does not automatically update time –it must be done manually. PHOTO ELECTRIC SWITCH The GPSTRACKWIRELESS has a photo electric tamper. It can also be used to send the ‘SOS’ alert by using it as a light sensitive trigger.
  • Page 12: Move Alert

    If the tracker moves more than 500m (default), it will send a text alert to the paired mobile phones. Move alert can also be set from the APP and move distance can be adjusted. To cancel this mode, send nomove123456 reply: nomove ok www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 13: Speed Alert

    SIM card suppliers depending on the services they provide. GLOBAL RE-SET The tracker can be re-set to factory settings which erases any settings you may have set. From the paired phone, send: begin123456 reply: begin ok send: format Noreply www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 14 The purchase of this product provides access to a mobile APP and website. These are operated by a 3rd party and We has no control over the design or operation. We accept no liability or responsibility if the APP or website become unavailable or access terms change. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
  • Page 15: Text Command Chart

    TEXT COMMAND CHART www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
