3G TRACKER TK SERIES USER GUIDE
1. 3G Tracker TK Series Model
Product includes:
a. Tracking device
b. Micro USB charging cable
c. User Guide

2. Installation Manual

2.1 SIM Card Pre-installation Checklist:
a. GSM Normal SIM
b. SIM card should have its GPRS function enabled.
c. SMS request will be functional only if Caller ID setting is enabled.
2.2 Procedure for SIM Card Installation or Removal
a. Open the waterproof rubber cover.

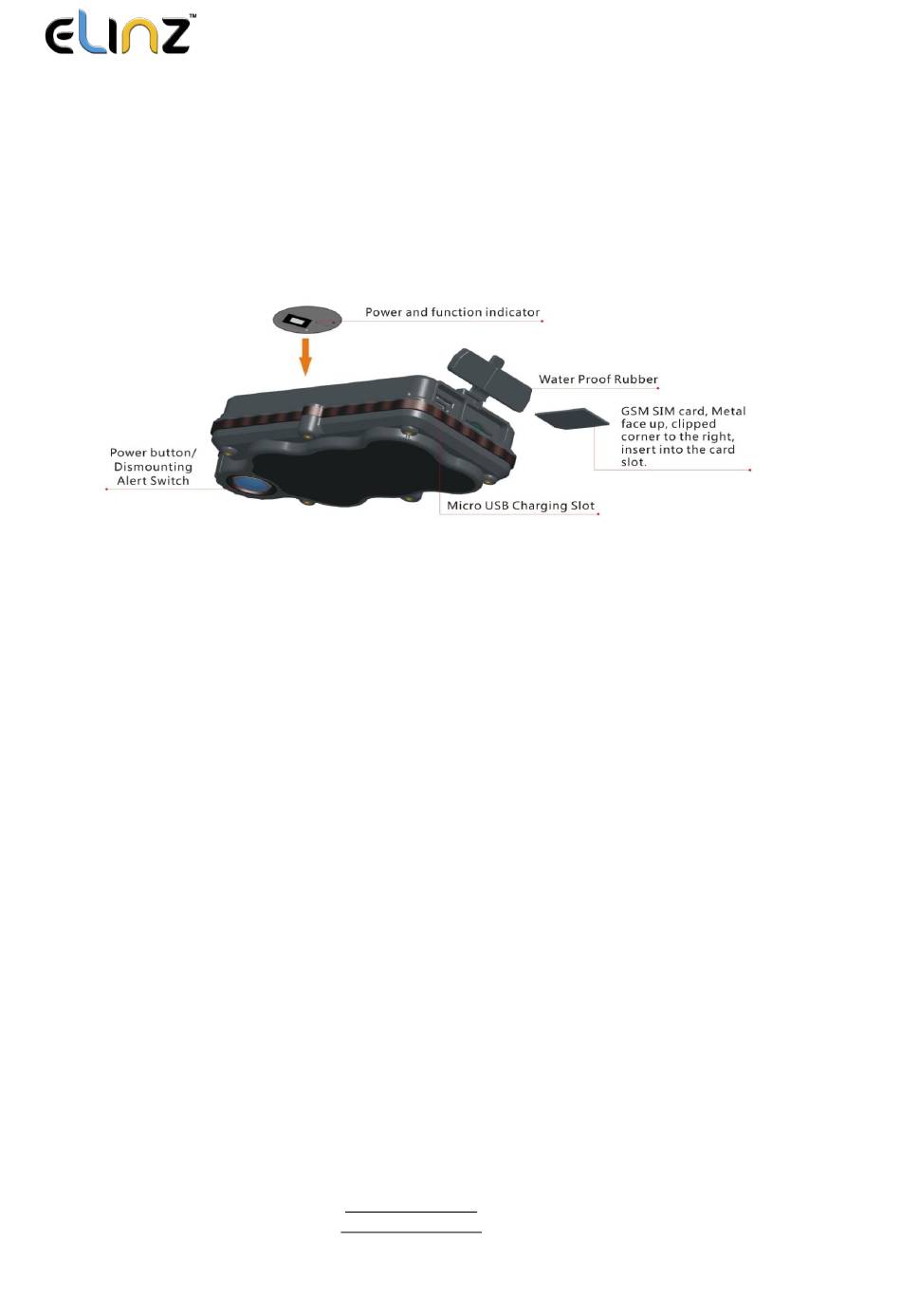

b. Insert SIM card into the SIM slot, with the metal-chip facing up and the clipped corner
positioned to the right.
www.elinz.com.au
sales@elinz.com.au
1300 881 773

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK05GSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elinz TK05GSE

Summary of Contents for Elinz TK05GSE

  • Page 1: Installation Manual

    2.2 Procedure for SIM Card Installation or Removal a. Open the waterproof rubber cover. b. Insert SIM card into the SIM slot, with the metal-chip facing up and the clipped corner positioned to the right. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 2: Button Operation

    BATTERY HAS POWER FOR THE GPS TRACKER TO OPERATE PROPERLY. 3.1 Button Operation for GPS function NOTE: “button” presses must be at least 1 second for device to response. The blue control button is at the bottom of the device. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 3 QR Codes of IOS and Android app are at the bottom of the front page, please scan and download. Username: Registered Master phone number. (Please add 0061 and leave out the first 0 e.g. 0061412345678) Password: Default as 123456. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 4 Different SIM has different APN. Ensure you have the correct APN information with the SIM provider when you purchase the SIM card. **ALDI MOBILE SIM APN is preset in the device, if you are using other mobile network; please reset the APN with your SIM provider. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 5 For Australia users, please add 61 for country code and leave out the first 0 of your number. e.g.: 6141234523 C. 123456 is the default login password. And it can be changed in the tracking website at www.miitown.com www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 6 3. Control Room Home Function list of the app www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 7 Tap the device’s serial number to select the one you need to control. Please make sure the correct phone number is entered in the device setting: Step 1 Step 2 Step 3 0061412345678 XXXXXX XXXXXX 412345623 Phone number in the device www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 8 To get latest location of the device. Step 1 Step 2 Step 3 Tap to get GSM location Tap to get GPS location Step 4 Step 5 Back to the apps to view location 61412345623 www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 9 SMS and cost varies for different SIM provider. And all replies from the device will be sent back to app via GPRS data, so replies will be shown as push notification, and all records can be checked in the message section. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 10 Enables device to upload 6 locations to server every minute when device is in motion. 3.3.4 Check GPS Location Device will upload GPS location in appointed interval, even if the device is in motion or www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 11 3.3.8.1 Status Query Check system status, replies will be shown in the message section. 3.3.8.2 Device Information Check software edition information and device’s serial number. Replies will be shown in the message section. 3.4 Device Monitor www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 12 SMS Command Operation Guide to confirm detail functions list of your tracker. SMS Commands Operating Guide SMS commands are for non-smartphone user or who would like to control the device through SMS commands only, without using the App. 1. Registration 1.1 Set APN www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 13 1.2 Registering the “Master” Controller A. Use cellphone to send SMS *master*123456*+country code plus your cellphone number*to the device SIM number. 123456 is the default password, it can be changed by changing password command as showed on 1.3. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 14: Motion Alert

    The motion alert enables device triggered a call/sms alert when motion is detected. 2.1 Set vibration sensitivity There are 5 levels of the motion sensitivity. 1 being the most sensitive, 5 the least, default setting is 1. SMS: *sensitive*1-5* www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 15 System default set UTC time, if you are not in this timezone, please set your timezone before using this function. SMS：*continuousalert*(2 digits start time)*(2 digits end time)* Example *continuousalert*08*14* means system will enable continuous motion alert function from 8am to 2pm. SMS：*continuousalertoff* To turn off period motion alert function. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 16 ID: Registered Master phone number. Password: Default as 123456. It can be changed on the tracking website. Recommended Web browsers are Chrome, Firefox or cell phone default browser. 4.1 Real-time Tracking (High Power Consumption) www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 17 60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60 Example *rsampling*30* plus *ruplaod*120* means 4 location data will be uploaded to server every 2 minutes when routetrack function is on. SMS:*routetrackoff* www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 18 This function can be used with routetrack and Check function at the same time. SMS: *checkgsm*5-1800* 5-1800 represents the the number of minutes of Checkgsm’s data upload interval, default as off; rate should not be less than 5. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 19 *timinglocatemap*0830*1400*1830* means master number will receive a text message with a google map link at 8:30am 2:00pm and 6:30pm, click the link to view the device location on goole map through your cellphone browser. It is suitable for smart phone user only. SMS：*timinglocateoff* www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 20 3.4 Track Off Track off will end all the tracking functions, including routetrack, checkm, checkgsm, timing locate and period locate. SMS：*trackoff* To turn off all tracking functions, including routetrack, check, checkgsm, timing locate and period locate. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 21 Device will go to deep sleep mode and wake up after appointed interval, and stay awake for 12 mintues. If there is no new commands received in 12 minutes, device will go back to deep sleep mode for the next set interval. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 22: Wifi Functions

    Note: System will shut down GPS and GSM module during deep sleep period, so no call or SMS can be received or responded. SMS: *sleepv* To enable motion sleep function. SMS: * sleepoff* To turn off motion sleep function. 8. WiFi Functions www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 23 Example *wificheck*5* means system will check set wifi fences in every 5 minutes. 8.1.2 Check WiFi Fence *wififencelist* You will receive a list of the WiFi fences you have set. There are up to 3 fences can be set. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 24 All location data will be saved in the SD card instead of uploading to the server. e. Take the SD out of the device, copy the .bin files to your PC. visit http://offline.miitown.com/ g. Select the data file and click Submit www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 25: Status Query

    12. SOS Alert SOS Alert function enables the device to send SOS alert to preset number when the panic button is triggered. Up to 3 SOS numbers can be preset. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 26: Low Battery Alert

    The alert number can be appointed to any other mobile phone number if needed. Appoint low battery alert number SMS:*lowbat*alert cellphone number* Note: Please make sure country code is included in the cellphone number. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 27: Device Information

    Allows any cellphone number to check the device location and status besides the master number. 17. 1 SMS: *multiquery* To enable multi controller function. 17. 2 SMS: *multiqueryoff* To turn off the multi controller function. 18. Device Information www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 28 SMS:*about* To check device information including software edition and serial number. www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 29: Command Setting List

    Motion alert via Call Set period motion alert. *continuousalert*(2 digits The first 2 digitals refers start time)*(2 digits end Period Motion Alert to start time and second time) 2 digits refers to end time in hour. www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 30 Real-time Tracking *routetrackoff* End routetrack function. *checkm*5-9999* 5-9999 represents minutes of check function data upload interval *checkoff* End check function Check Location 5-1800 represents minutes of check gsm *checkgsm*5-1800* function data upload interval www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 31 End period locate *periodlocateoff* function Track Off End all the tracking *trackoff* functions. *uploadalert*on* Enable upload alert function Upload Alert *uploadalert*off* End upload alert function *onlineon* Enable online control function Online Control *onlineoff* End online control function www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 32 Set WiFi fence. *wififencelist* Check WiFi fence list. Check WiFi Fence *removefence*#* Remove WiFi fence. Offline Storge *sdon* Enable offline storage function *sdoff* End offline storage function. Enable call-in listening Remote Listening *callin* function for 30 minutes www.elinz.com.au sales@elinz.com.au 1300 881 773...

  • Page 33: Hardware Specifications

    *lowbat*country code To set low battery alert Low Battery Alert (plus) cellphone number* number. Number default Default system, previous Factory Default settings will be cleared. *poweroff* Power off the device. Power Off Hardware Specifications: www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 34 TK SERIES MODEL AND FUNCTION LIST Battery Remote Battery Model Size Weight WiFi Solar Capacity Listening removable 117mm x59mm x TK05GSE 230g 5000mA 30mm TK10GSE 342g 10000mA 153mm x59mm x 34mm TK15GSE 435g 15000mA 153mm x59mm x 39mm TK20GSE 528g...
  • Page 35 TK05SG 328g 5000mA 160mm x64mm x 37mm TK10SG 402g 10000mA 160mm x64mm x 37mm TK15SG 494g 15000mA 160mm x64mm x43mm TK20SG 586g 20000mA 160mm x64mm x 49mm GPRS: MTK 6261 Quad band; WCDMA supports HSDPA/UMTS/EDGE/GPRS/GSM www.elinz.com.au sales@elinz.com.au 1300 881 773...
  • Page 36 GPS: U-BLOX G7020-ST, 50 channel Antennae: Internal Position Accuracy: >=5m Sensitivity: Tracking: (R)C161 dB, Cold starts: (R)C148 dB, Hot starts: (R)C156 Cold start:<27s, Warm Start: <5s, Hot Start: 1s A-GPS: AssistNow Online and AssistNow Offline services. www.elinz.com.au sales@elinz.com.au 1300 881 773...
