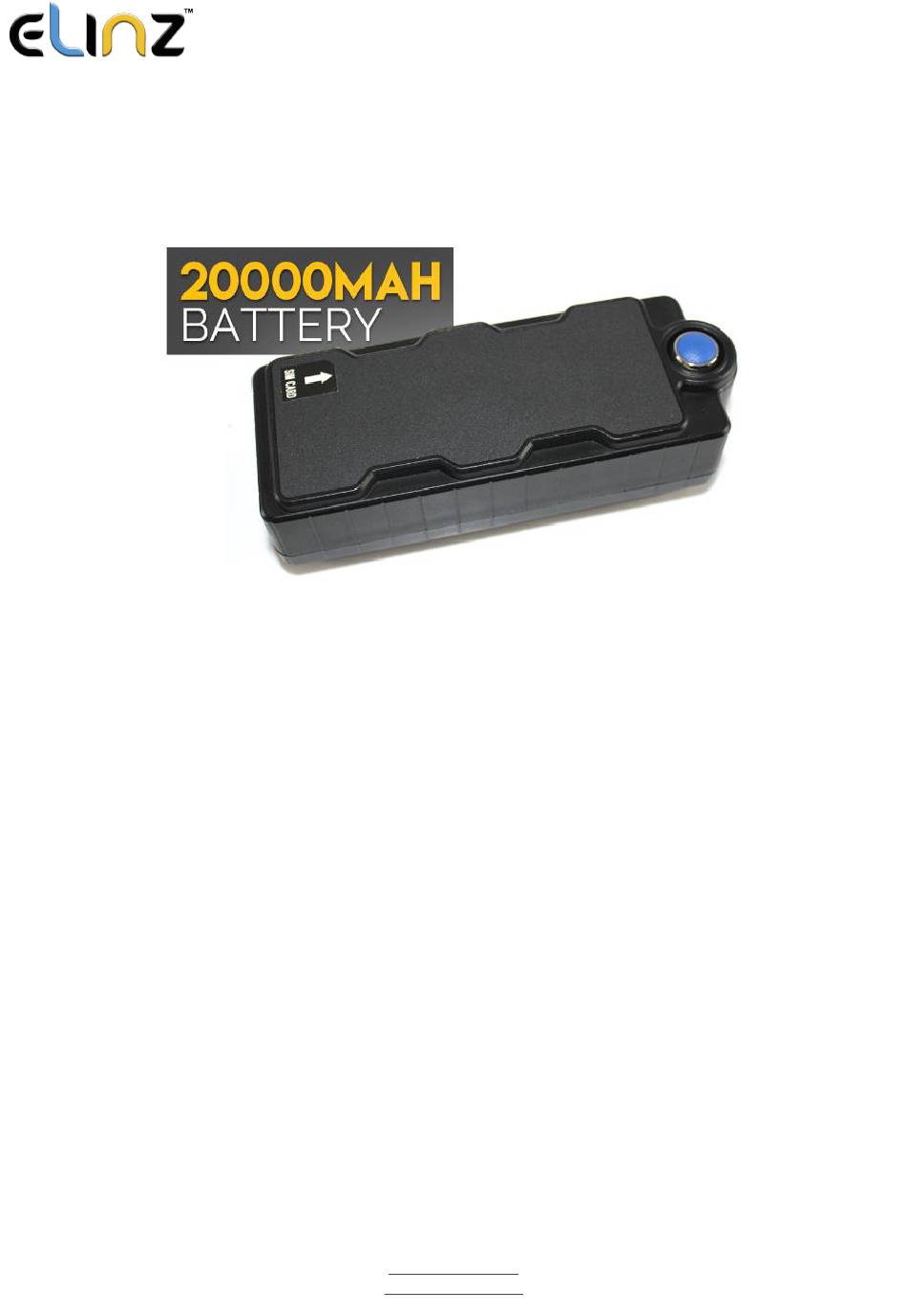

3G GPSTRACKWIRELESS User Manual
Thank you for purchasing GPSTRACKWIRELESS. This manual shows how to operate
the device smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information in this manual are subject to changes
without prior notice.
What's in the box?

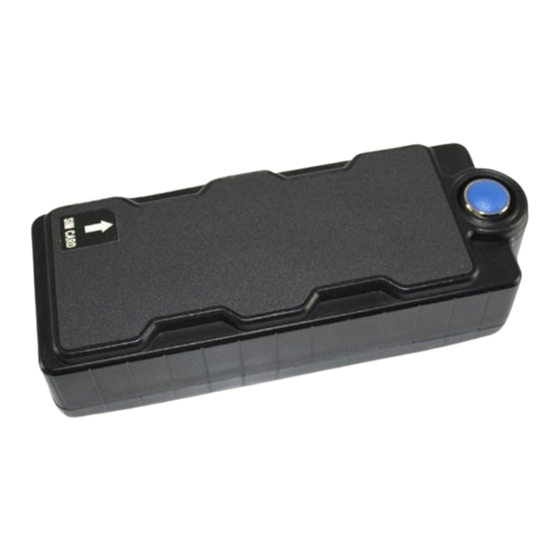

1x Tracking device
1x Micro USB charging cable
1x User Guide
Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate
and monitor any remote targets by SMS or internet. The most advanced technology of GPS
and GSM dual positioning.
www.elinz.com.au
sales@elinz.com.au
1300 881 773
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elinz GPSTRACKWIRELESS
Summary of Contents for Elinz GPSTRACKWIRELESS
- Page 1 3G GPSTRACKWIRELESS User Manual Thank you for purchasing GPSTRACKWIRELESS. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information in this manual are subject to changes without prior notice.
-
Page 2: Pre-Installation Checklist
Call the device SIM number to activate the device, and it should response to get through without answer. (If you are using a data SIM which do not support call function, ignore this step.) e. Close the waterproof rubber cover after SIM card installation. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 3 1. Install your EZ Tracker App Simply scan the code using your mobile 2. Register an Account a. First you need to open the app and tap on “Register here” (image 1) b. Next tap on “Register Account” (image 2) www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 4 (image 1) f. Confirm and accept the terms. (image 2) g. Send the SMS and wait master phone number confirmation to complete the registration. (image 3) www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 5: Apn - Access Point Name
SIM provider when you purchase the SIM card. **ALDI MOBILE SIM APN is preset in the device, if you are using other mobile network; please reset the APN with your SIM provider. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 6 4. Please make sure the Sim card phone number in the GPS Device is entered in the device setting www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 7: Real-Time Tracking
The menu button is on the top left-hand side, tap on this to see real time tracking and settings. 2. Real-time Tracking To get latest location of the device including Latitude, Longitude you must follow the screen below. Tap to get GSM/GPS Location > Confirm > Send SMS www.elinz.com.au sales@elinz.com.au 1300 881 773... -
Page 8: Location History
Note: You may need to logout and login to the app again after sending SMS to get accurate location. Device Status will show number of Satellites, Device Battery Percentage, Speed and Mode. 3. Location History To view the previous location record of the selected device. View by date, start and end time. www.elinz.com.au sales@elinz.com.au 1300 881 773... -
Page 9: Zone Alerts
Make sure to turn on push notification by going to Menu>Notifications>Push Notifications 5. Devices Show all number devices under the same account. Tap the device’s icon at the bottom part of the screen to select the one you need to track. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 10 Enables device to upload 6 locations to server every minute when device is in motion. 6.4 Check GPS Location Device will upload GPS location in appointed interval, even if the device is in motion or not. Default as 1GPS location uploads every 72 hours. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 11 6.8 Others 6.8.1 Status query Check system status, replies will be shown in the message section. 6.8.2 Device Information Check software edition information and device’s serial number. Replies will be shown in the message section. www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 12: Panic Button
Charge: A red light is on during charging and turns off when it is fully charged. Panic Button 2 short presses and 1 long press on the control button will trigger an SOS message to alert a registered master number. The alert will be uploaded to the server. www.elinz.com.au sales@elinz.com.au 1300 881 773... -
Page 13: Device Monitor
The correct APN must be set to enable the device to send data to the server. Different SIMs have different APN, ensure that you have the correct APN information with the SIM provider when you purchase the SIM. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 14 B. Once your cellphone receives the confirmation sms, it will become the only master phone to the tracker (See screenshot). NOTE: The device will ONLY listen and respond commands from this number unless you choose to turn www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 15: Motion Alert
System will enable continuous motion alert function at appointed time periods, up to 3 time periods per day. That means master number will receive the call/sms alerts continuously when device detects on continuous motion. Time format need to be in 24-hours. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 16 This function is suitable for smart phone user only. 4. Tracking via website and applications Tracking Website: www.miitown.com ID: Registered Master phone number. Password: Default as 123456. It can be changed on the tracking website. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 17 60 Example *rsampling*30* plus *ruplaod*120* means 4 location data will be uploaded to server every 2 minutes when routetrack function is on. SMS:*routetrackoff* To turn off route track function. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 18 This function can be used with routetrack and Check function at the same time. SMS: *checkgsm*5-1800* 5-1800 represents the the number of minutes of Checkgsm’s data upload interval, default as off; rate should not be less than 5. Example *checkgsm*30* means uploading GSM data every 30 minutes. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 19 8:30am 2:00pm and 6:30pm, click the link to view the device location on goole map through your cellphone browser. It is suitable for smart phone user only. SMS：*timinglocateoff* To end timing locate function. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 20 The upload alert function enables device upload alert status to the server including motion alert, low battery alert and drop alert etc. User can check alert status on the tracking website or message section in app. This function is default as ON. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 21 SMS can be received or responded. SMS：*sleep*1-99* 1-99 refers to the hours of appointed sleep interval. Example *sleep*6* means to enable device to go to deep sleep mode and wake up in every 6 hours. www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 22: Sos Alert
SOS alert. Preset numbers will receive the following SOS SMS “SOS! HELP! SOS!! HELP!! SOS!!! HELP!!!” System default as off. SMS: *soson* To enable SOS alert function. SMS: *sosoff* To turn off SOS alert function. www.elinz.com.au sales@elinz.com.au 1300 881 773... -
Page 23: Device Information
17. 1 SMS: *multiquery* To enable multi controller function. 17. 2 SMS: *multiqueryoff* To turn off the multi controller function. 18. Device Information SMS:*about* To check device information including software edition and serial number. www.elinz.com.au sales@elinz.com.au 1300 881 773... -
Page 24: Command Setting List
Set period motion alert. *continuousalert*(2 digits The first 2 digitals refers start time)*(2 digits end to start time and second time) 2 digits refers to end Period Motion Alert time in hour. *continuousalertoff* End period motion alert function. www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 25 *checkoff* End check function Check Location 5-1800 represents minutes of check gsm *checkgsm*5-1800* function data upload interval Time Zone 0-24 represents the *timezone*0-24* timezone number for each country. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 26 *onlineon* Enable online control function Online Control *onlineoff* End online control function * sleep*1-99* 1-99 represents device wake up interval in Deep Sleep hours. * sleepv* Motion Sleep function Motion Sleep with motion alert. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 27 *sdon* function End offline storage *sdoff* function. Enable call-in listening Remote Listening *callin* function for 30 minutes Enable call back *callback* listening function Enable SOS alert *soson* function. SOS Alert Disable SOS alert *sosoff* function. www.elinz.com.au sales@elinz.com.au 1300 881 773...
- Page 28 *lowbat*country code To set low battery alert Low Battery Alert (plus) cellphone number* number. Number default Default system, previous Factory Default settings will be cleared. *poweroff* Power off the device. Power Off www.elinz.com.au sales@elinz.com.au 1300 881 773...
-
Page 29: Hardware Specifications
153mm x59mm x 39mm TK20GSE 528g 20000mA 153mm x59mm x45mm TK05G 274g 5000mA 123mm x62mm x 31mm TK10G 386g 10000mA 160mm x64mm x 35mm TK15G 478g 15000mA 160mm x64mm x 41mm TK20G 570g 20000mA 160mm x64mm x 47mm www.elinz.com.au sales@elinz.com.au 1300 881 773... - Page 30 GPS: U-BLOX G7020-ST, 50 channel Antennae: Internal Position Accuracy: >=5m Sensitivity: Tracking: (R)C161 dB, Cold starts: (R)C148 dB, Hot starts: (R)C156 dB Cold start:<27s, Warm Start: <5s, Hot Start: 1s A-GPS: AssistNow Online and AssistNow Offline services www.elinz.com.au sales@elinz.com.au 1300 881 773...
