HPFI Hyperwork Assembly Instructions

Assembly Instructions

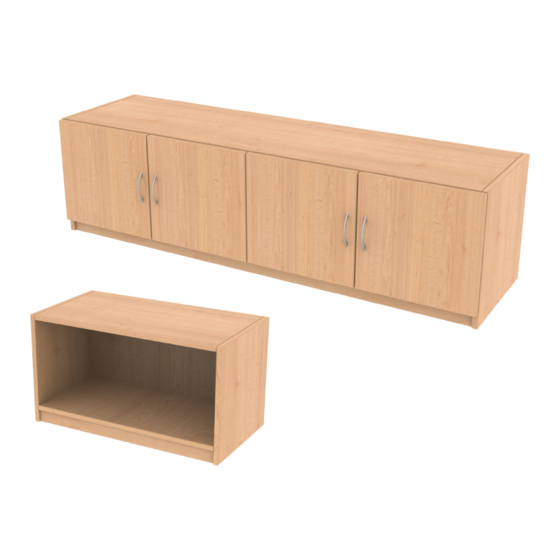

Hyperwork
Storage Cabinets
Wall Mount

Tools Needed

• Level
• Tape Measure (at least 10')
• Phillips screwdriver (manual or power)
• Pencil
• Stud locator (when attaching to drywall surface)

Hardware Provided

• Wall Hanger Rail

Open Storage Cabinet Weight (Empty)

30" Wide Cabinet - 48 lbs.
36" Wide Cabinet - 55 lbs.
42" Wide Cabinet - 63 lbs.
48" Wide Cabinet - 70 lbs.
54" Wide Cabinet - 77 lbs.
60" Wide Cabinet - 96 lbs.
66" Wide Cabinet - 103 lbs.
72" Wide Cabinet - 110 lbs.

Step 1

Position the cabinet against the wall in the desired location. Place
your level on top of the cabinet. With your pencil, mark the wall
where the top of the cabinet will be located. Two (2) people may be
required for this step to hold the cabinet in place while the second
person levels and draws the first locator line. After taking the cabinet
away from the wall, use the Wall Hanger Rail, tape measure and level
to draw a second line 6" below the first line.
© HPFi 1104 Bedford Street
NOTE: No fasteners are included for attachment to the wall. It is
the responsibility of the installer to provide the correct fasteners for
the applicable (structural) wall type, e.g. block or drywall with studs.
Be certain to use fasteners that will support the total weight of the
cabinet (listed below) and its contents when fully loaded.

Enclosed (doors) Storage Cabinet Weight (Empty)

30" Wide Cabinet - 68 lbs.
36" Wide Cabinet - 76 lbs.
42" Wide Cabinet - 85 lbs.
48" Wide Cabinet - 102 lbs.
54" Wide Cabinet - 110 lbs.
60" Wide Cabinet - 126 lbs.
66" Wide Cabinet - 135 lbs.
72" Wide Cabinet - 150 lbs.
High Point, NC 27263 www.hpfi.com (p) 800.447.3462 (f) 800.231.6784
6"
